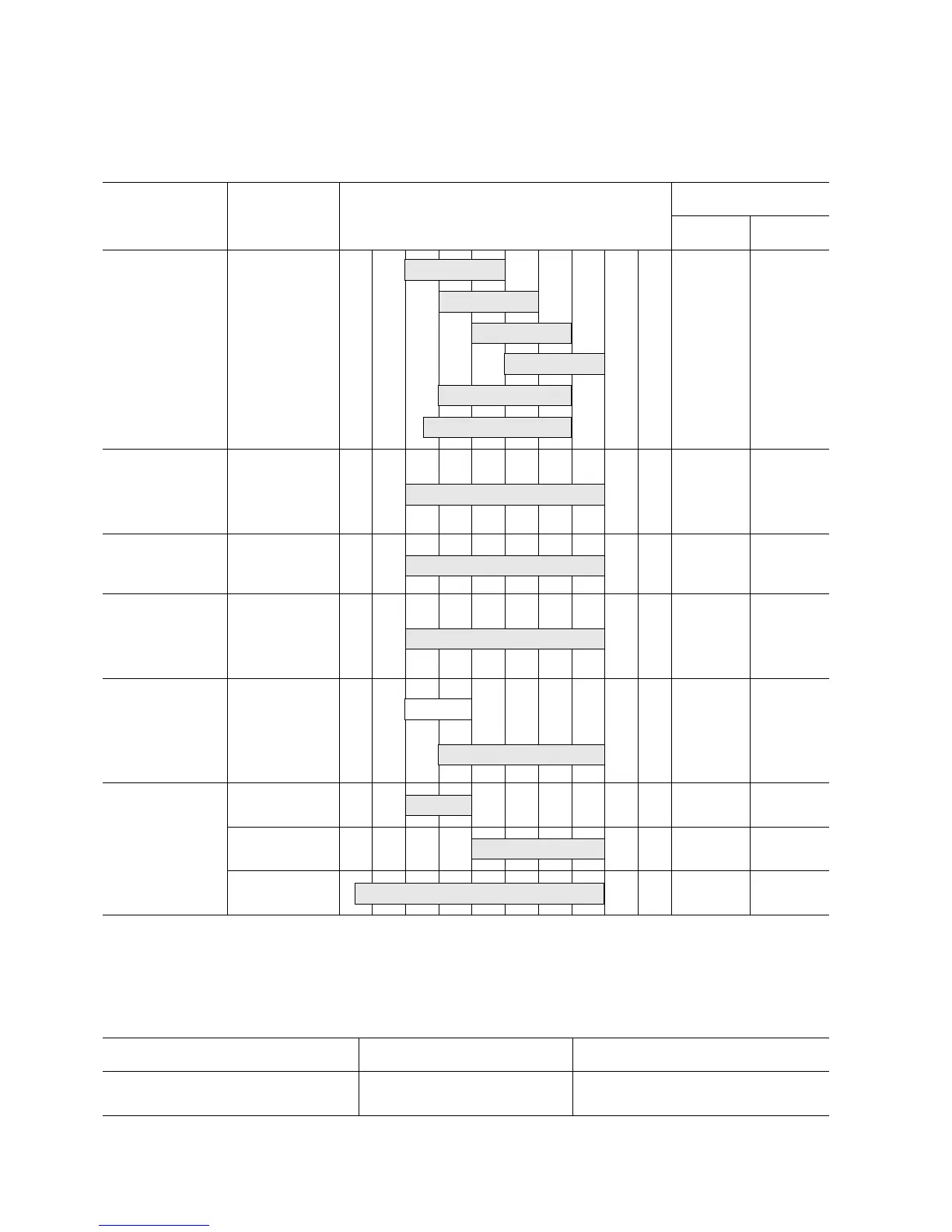

FUEL, COOLANT AND LUBRICANTS

4.3 FUEL, COOLANT AND LUBRICANTS

LUBRICATION WITH GREASE

PROPER SELECTION ACCORDING TO THE AMBIENT TEMPERATURE

RESERVOIR FLUID

AMBIENT TEMPERATURE

CAPACITY (l)

filling Change

Engine oil pan

OIL

• API CD

3.6

(PC20R)

5.2

(PC27R)

3.6

(PC20R)

5.2

(PC27R)

Hydraulic system OIL

• API CD

48 29

Hydraulic system

with biodegrada-

ble oil

SEE “4.3.1” 48 29

Travel reduction

gears (ea.)

OIL

• API CD

0.7 0.7

Fuel tank DIESEL OIL 35 —

Engine cooling

system

WATER +

ANTIFREEZE

4 —

WATER 4 —

PERMANENT

COOLANT

4 —

LUBRICATION POINTS CONSISTENCY TYPE

Articulations, ball-bearing ring, ball-bear-

ing ring pinion

NLGI 2 LITHIUM-BASED

✱ ASTM D975 N.1

SAE 10W

✱

ASTM D975 N. 2

SAE 10W

SAE 40

SAE 30

SAE 20W-20

SAE 10W

SAE 15W-30

SAE 10W-30

-30 -20 -10 0 10 20 30 40 50°C

-22 -4 14 32 50 68 86 104 122°F
