Komatsu PC20R-8 - General View of the Drivers Seat

57
GENERAL VIEWS

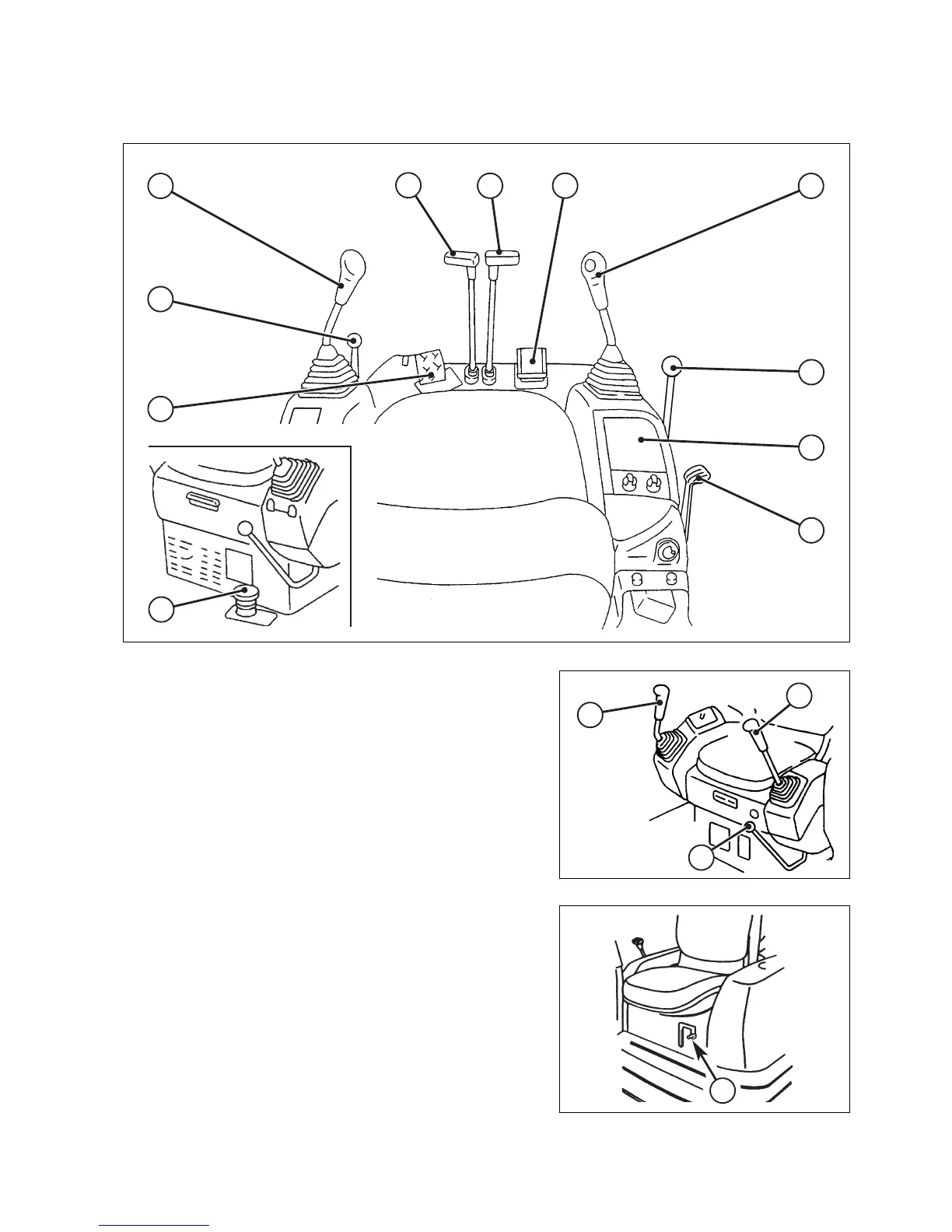

3.2.3 GENERAL VIEW OF THE DRIVER’S SEAT
RYA11990
3 42
11
1
5
6
8
7
9
10
1 - Left safety lever
2 - Arm-upper structure rotation control
3 - Left track control lever
4 - Right track control lever
5 - Boom swing control pedal
6 - Bucket - boom lifting control
7 - Blade control
8 - Dashboard
9 - Accelerator control
10 - Speed increase control
11 - Optional equipment control pedal
12 - Rotation locking pin
RYA12000
1
2
6
RYA12010
12
