Komatsu PC210 User Manual

3-18
PC210/240-ENG

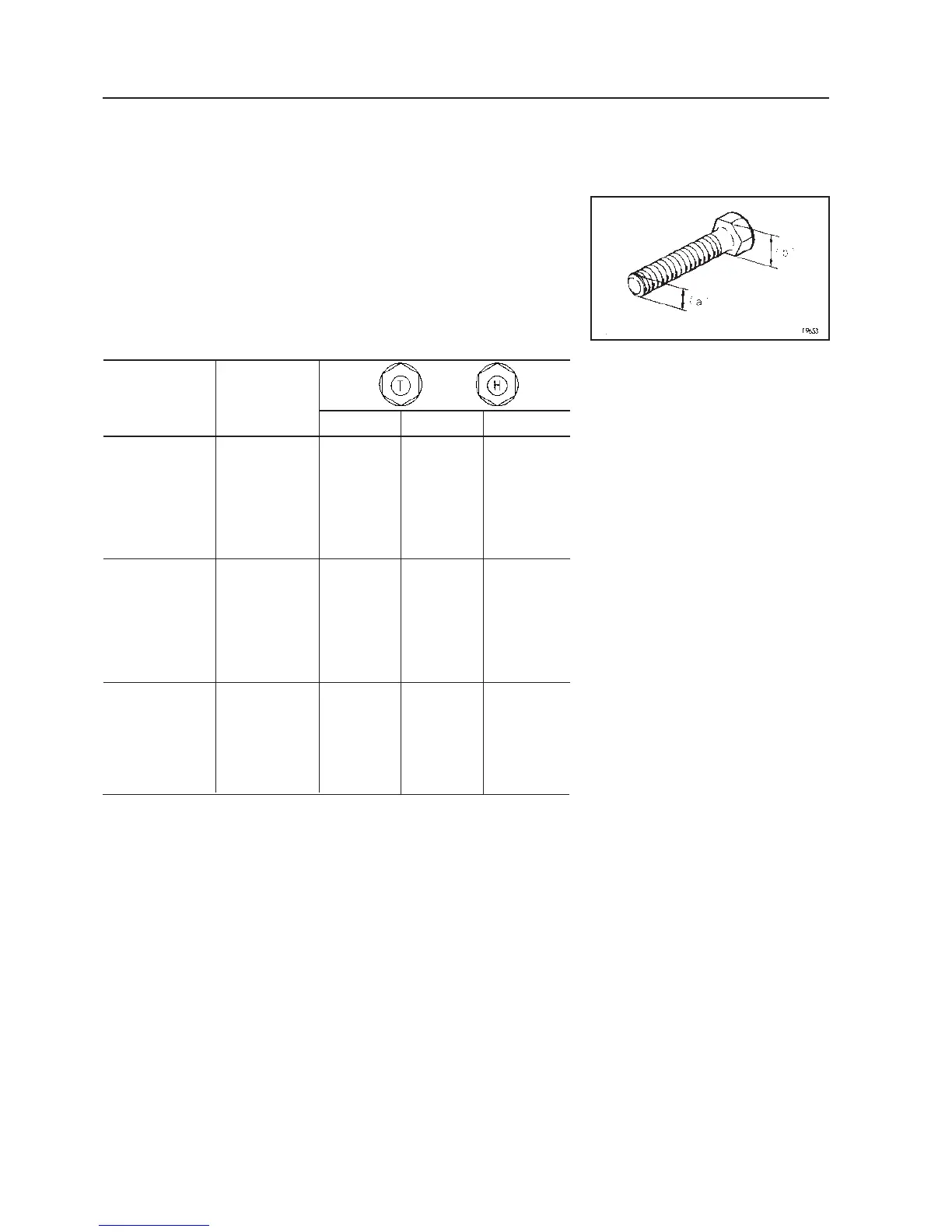

21.2 TORQUE LIST
Unless otherwise specified, tighten the metric bolts and nuts to the
torque shown in the table.
The tightening torque is determined by the width across the flats <b>
of the nut and bolt.
If it is necessary to replace any nut or bolt, always use a Komatsu
genuine part of the same size as the part that was replaced.
Nm (newton meter): 1 Nm 0.1 kgm
0.74 lbft
Thread diameter Width across
of bolt (mm) flat (mm)
(a) (b) Nm kgm lbft
6 10 13.2 ± 1.4 1.35 ± 0.15 9.73 ± 1.03
8 13 31.4 ± 2.9 3.2 ± 0.3 23.2 ± 2.1
10 17 65.7 ± 6.8 6.7 ± 0.7 48.5 ± 5.0
12 19 112 ± 9.8 11.5 ± 1.0 82.6 ± 7.2
14 22 177 ± 19 18.0 ± 2.0 131 ± 14
16 24 279 ± 29 28.5 ± 3 206 ± 21
18 27 383 ± 39 39 ± 3 282 ± 29
20 30 549 ± 58 56 ± 6 405 ± 43
22 32 745 ± 78 76 ± 8 549 ± 58
24 36 927 ± 98 94.5 ± 10 684 ± 72
27 41 1320 ± 140 135 ± 15 973 ± 100
30 46 1720 ± 190 175 ± 20 1270 ± 140
33 50 2210 ± 240 225 ± 25 1630 ± 180
36 55 2750 ± 290 280 ± 30 2030 ± 210
39 60 3280 ± 340 335 ± 35 2420 ± 250
NOTICE
When tightening panels or other parts having tightening fixtures
made of plastic, be careful not to use excessive frightening torque:
doing so will damage the plastic parts.
21. STANDARD TIGHTENING TORQUES FOR BOLTS AND NUTS
.
=
=
.
.
.
.

Komatsu PC210 Specifications

General

Bucket Capacity	0.8 - 1.2 m³
Travel Speed	5.5 km/h
Max Digging Depth	6, 620 mm
Max Reach	9, 850 mm
Fuel Tank Capacity	400 l
Engine Model	Komatsu SAA6D107E-1
