2-36
PC210/240-ENG

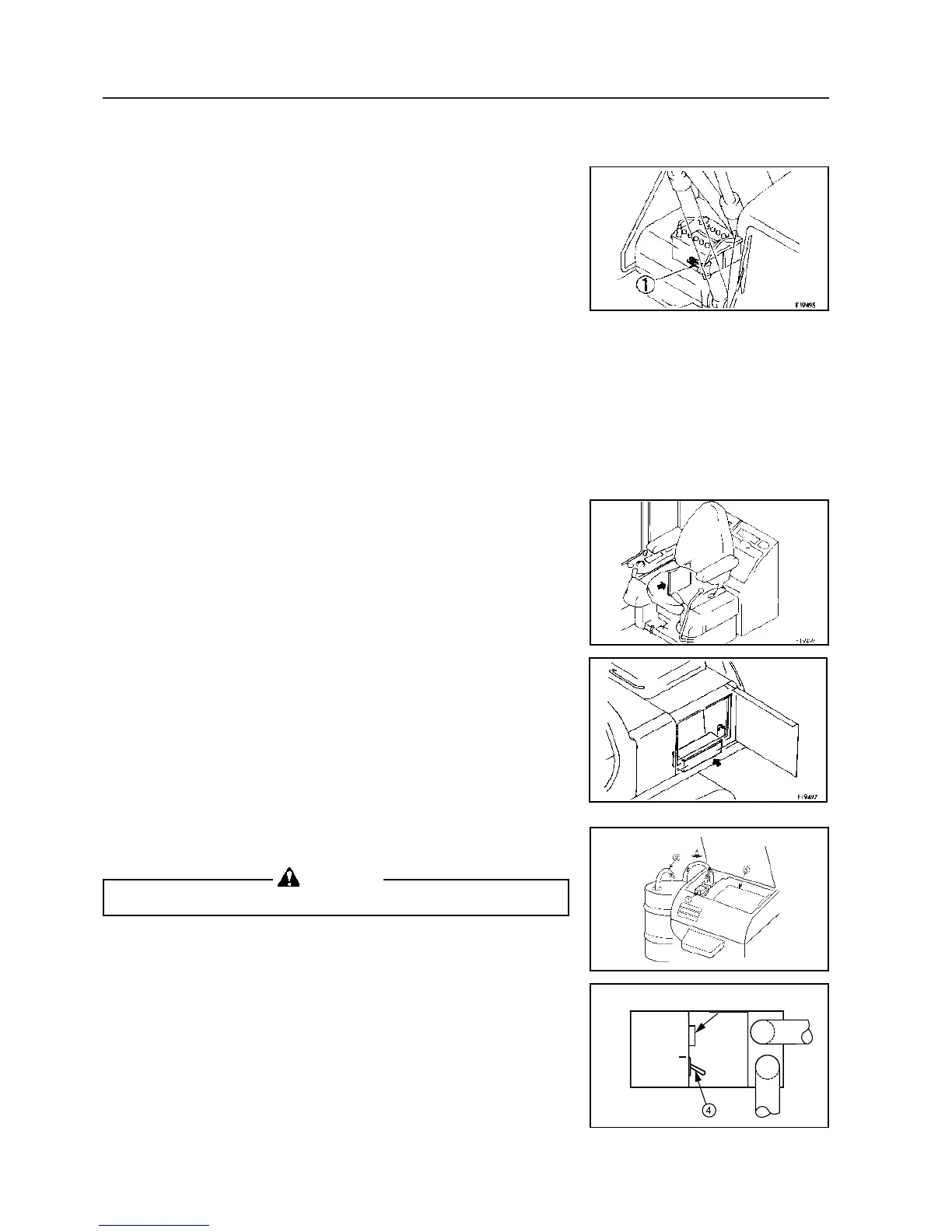

11.15 FUSIBLE LINK
If the starting motor will not rotate when the starting switch is turned
ON, a possible cause is disconnection of wire-type fusible link a. Open
the battery room door on the left side of the machine body to inspect the
fusible link and, if necessary, replace it.
REMARK
A fusible link refers to the large-sized fuse wiring installed in the high
current flow portion of the circuit to protect electrical components and
wiring from burning, similar to an ordinary fuse.
11.16 CONTROLLERS
A combined pump and engine controller is provided.
NOTICE
• Never splash or spill water, mud or drink over the controllers as
this may cause a fault.
• If a fault occurs in the controller, do not attempt repair, but con-
sult your Komatsu distributor.
11.17 TOOL BOX
This is used for keeping the tools.
11.18 REFUELLING PUMP (Option)
WARNING
• Do not bring fire or sparks near the fuel.
1. When the machine is operated on sites with no fuel container and
pump, the machine may be refuelled using the refuelling pump a (if
fitted) from fuel barrels.
The refuelling pump is located next to batteries at the front right hand
side of the machine.
2. Place the fuel hose b, which is stored in tray c into the fuel barrel
placed next to the machine.
3. Switch on refuelling pump using switch d on the pump assembly
when adding fuel, never let the fuel overflow. This may cause a fires.
Notes
• This pump is protected bay fuse e. If pump fails to function check
fuse (10A).
• Ensure strainer on hose end is clean.
