11.9 LUGGAGE TRAY
This tray is located to the rear of the operator’s seat. Always keep the
operation & maintenance manual in this box for easy reading access.
11.10 ASHTRAY
This is on the side of the operator’s seat. Always make sure that you
extinguish the cigarette before closing the lid.
11.11 HEATER

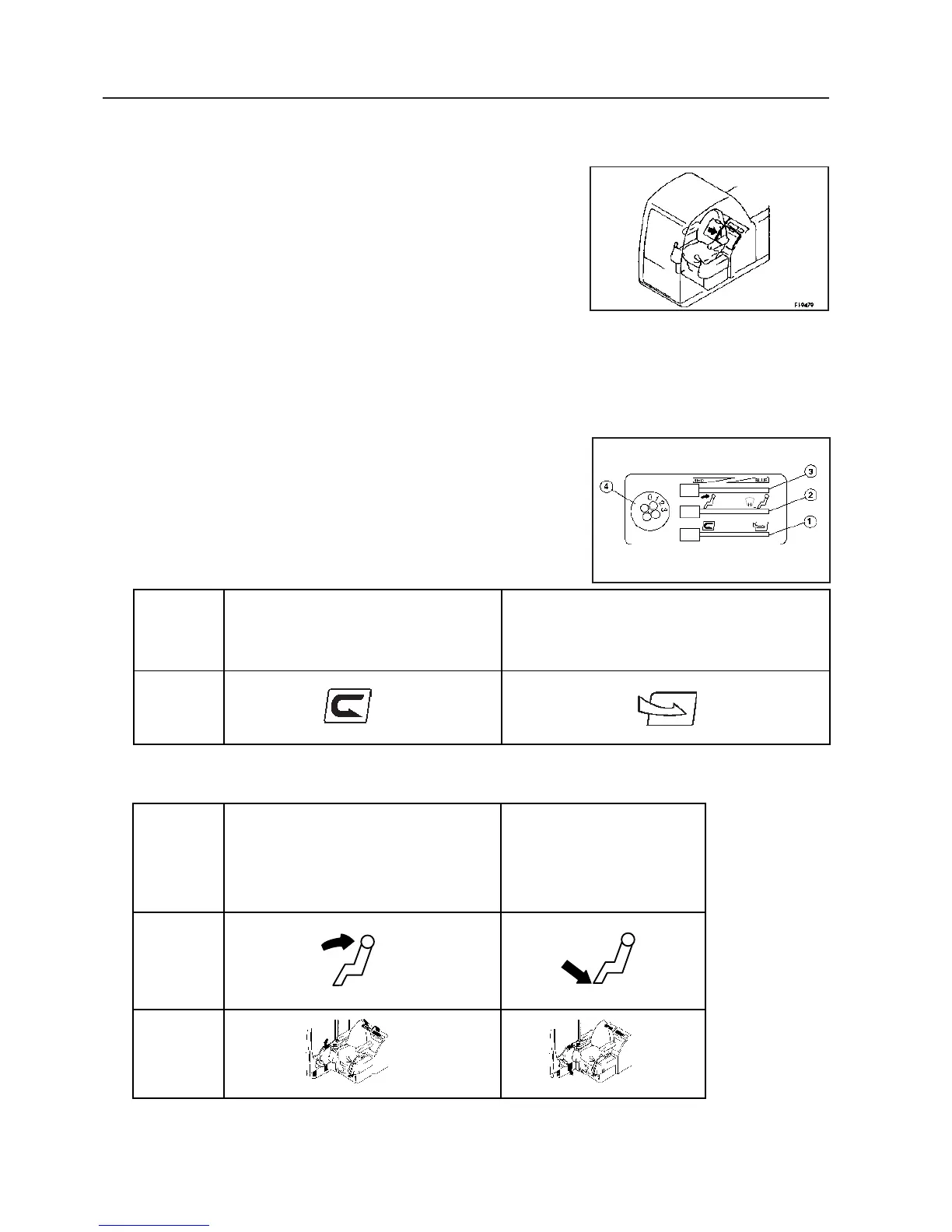

11.11.1 VIEW OF CONTROL PANEL
1. Inlet air control slider
Change between internal air recirculation & external fresh air intake.
Purpose
Lever
position.
2. Air outlet selector slider
The operator can select a suitable outlet as required.
Purpose
Lever
position
Air outlets
For complete defrosting of the front window, set the selector to
the mid-point of its strofe
11. EXPLANATION OF COMPONENTS
Internal air circulation.
This is used when wishing to quickly
warm the cab.
External air intake. This is used for fresh
air intake or to remove condensation on
windows or when the air inside the cab is
stale.
Sending air to upper area of
operator’s seat and defrosting
upper part of front window.
Sending air to lower area
of operator’s seat and
defrosting lower part of
front window.

Komatsu PC210 Specifications

General

Bucket Capacity	0.8 - 1.2 m³
Travel Speed	5.5 km/h
Max Digging Depth	6, 620 mm
Max Reach	9, 850 mm
Fuel Tank Capacity	400 l
Engine Model	Komatsu SAA6D107E-1
