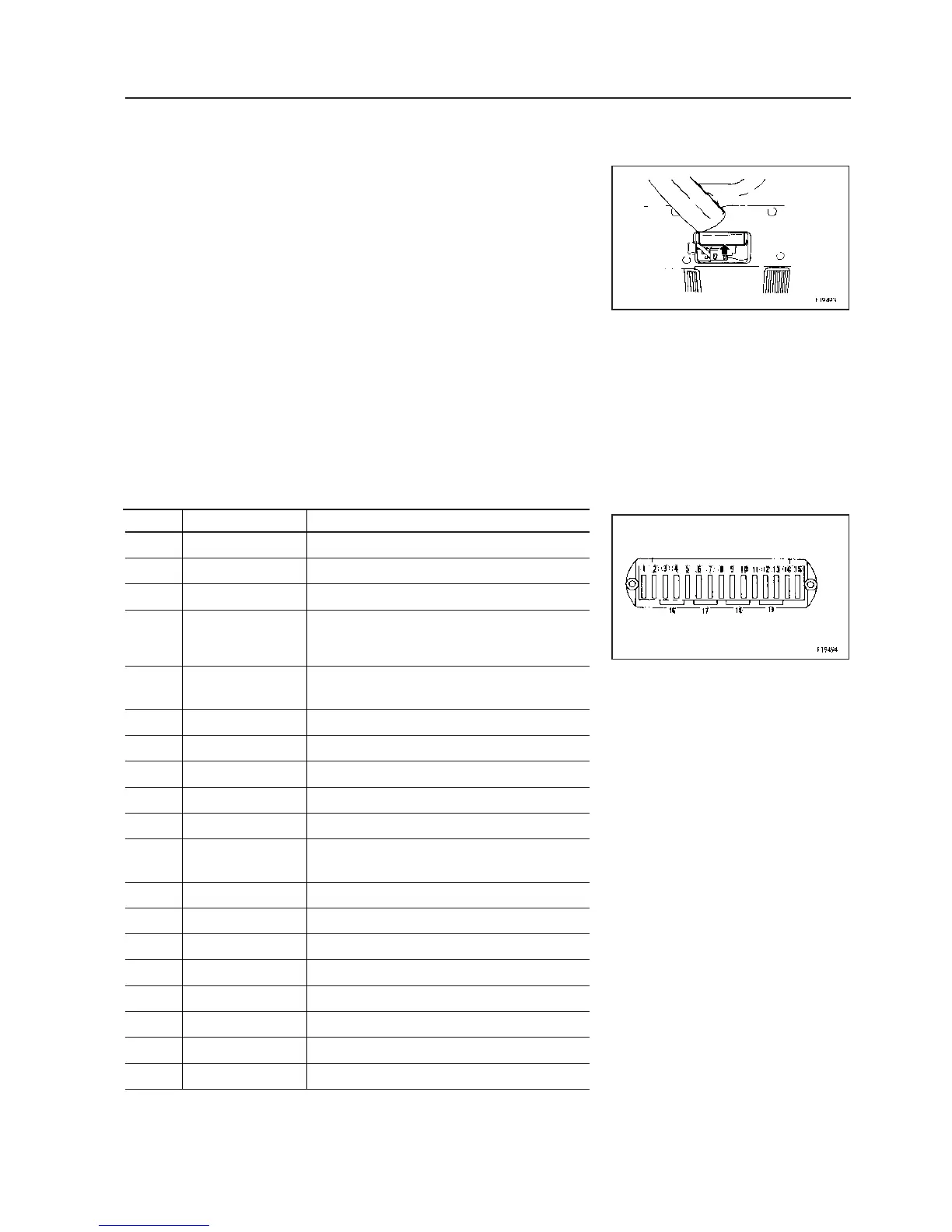

11.14 FUSE
NOTICE
Before replacing a fuse, be sure to turn off the starting switch.
The fuses protect the electrical equipment and wiring from burning
out.
If the fuse becomes corroded, or white powder can be seen, or the
fuse is loose in the fuse holder, replace the fuse. Replace a fuse with
another of the same capacity.
Fuse capacity and name of circuit
No Fuse capacity Name of circuit
y 10A Governor/Pump controller
x 10 A Solenoid valves
c 20 A Air Conditioner (motor)
v 20 A Right head lamp, Work lamps
(Boom LH & RH), Engine room lamp,
Heated seat.
b 20 A Cigarette lighter, Heater,Window
washer, Left knob button
n 10 A Horn
m 15 A Wiper controller
h 20 A Cab mounted work lamps (x3), Beacon
j 20 A Lower wiper, Refuelling pump
j 10 A Key switch signal
k 15 A Work lamps
(Left hand deck, counterweight)
l 10 A Spare
m 10 A Alarm buzzer, Monitor
n 20 A Battery relay, Ribbon heater, Start signal
o 10 A Cab lamp, Radio
p 10A Spare fuse
q 10A Spare fuse
r 15A Spare fuse
s 20A Spare fuse
11. EXPLANATION OF COMPONENTS

Komatsu PC210 Specifications

General

Bucket Capacity	0.8 - 1.2 m³
Travel Speed	5.5 km/h
Max Digging Depth	6, 620 mm
Max Reach	9, 850 mm
Fuel Tank Capacity	400 l
Engine Model	Komatsu SAA6D107E-1
