Komatsu PC210 User Manual

3-48
PC210/240-ENG

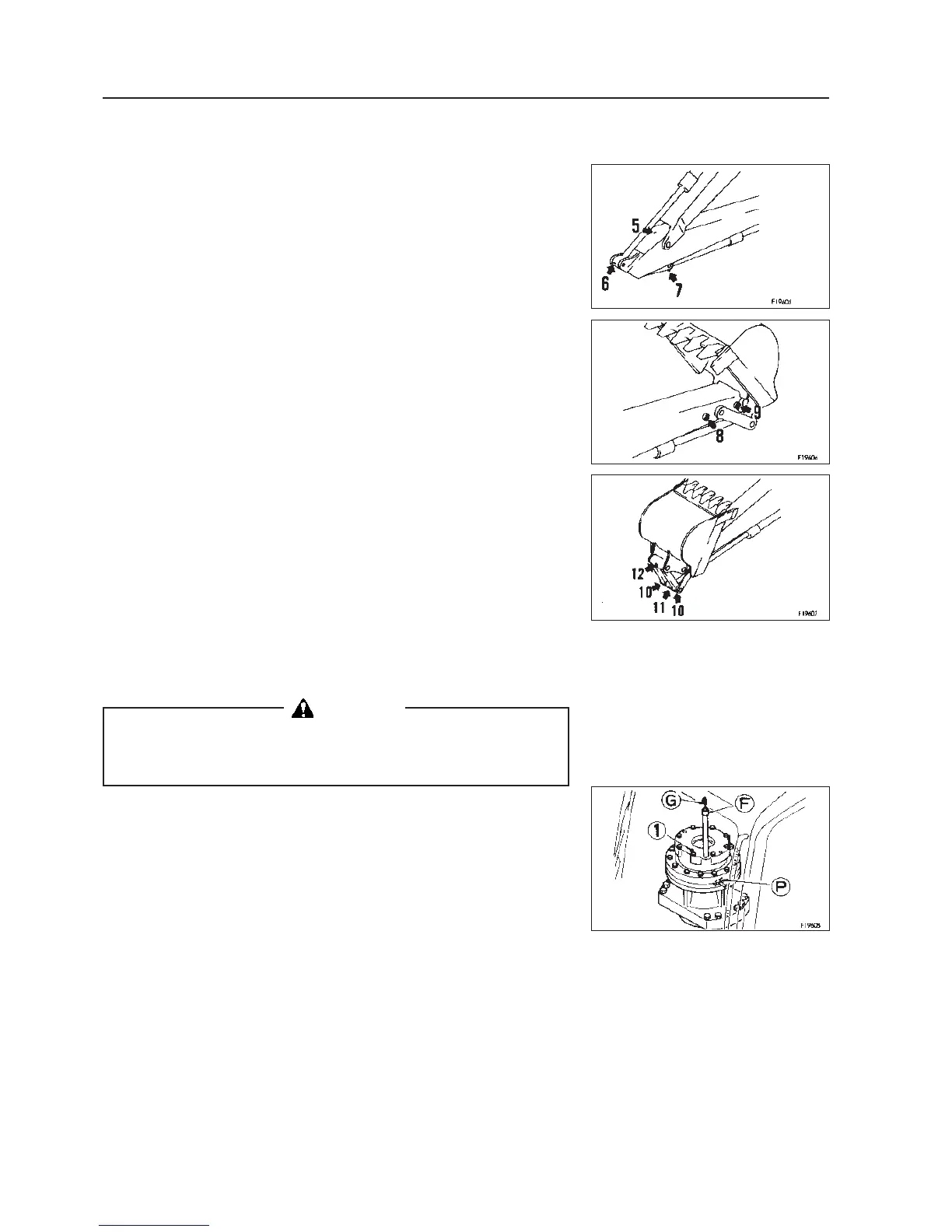

5. Boom-Arm coupling pin (1 point)
6. Arm cylinder rod end (1 point)
7. Bucket cylinder foot pin (1 point)
8. Arm-Link coupling pin (1 point)
9. Arm-Bucket coupling pin (1 point)
10. Link coupling pin (2 points)
11. Bucket cylinder rod end (1 point)
12. Bucket-Link coupling pin (1 points)
24.4.2 CHECK OIL LEVEL IN SWING MACHINERY
CASE, ADD OIL
The oil is at high temperature immediately after the machine
has been operated. Wait for the oil to cool down before carry-
ing out this check.
1. Remove dipstick G and wipe the oil from the dipstick with a cloth.
2. Insert dipstick G fully in the guide.
3. When dipstick G is pulled out, if the oil level is between the H and L
marks of the gauge, oil level is proper.
WARNING
24. SERVICE PROCEDURE

Komatsu PC210 Specifications

General

Bucket Capacity	0.8 - 1.2 m³
Travel Speed	5.5 km/h
Max Digging Depth	6, 620 mm
Max Reach	9, 850 mm
Fuel Tank Capacity	400 l
Engine Model	Komatsu SAA6D107E-1
