24. SERVICE PROCEDURE
24.3 CHECK BEFORE STARTING
24.3.1 CHECK COOLANT LEVEL, ADD WATER
Do not open the radiator cap unless necessary. When check-
ing the coolant, always check the radiator reserve tank when
the engine is cold.

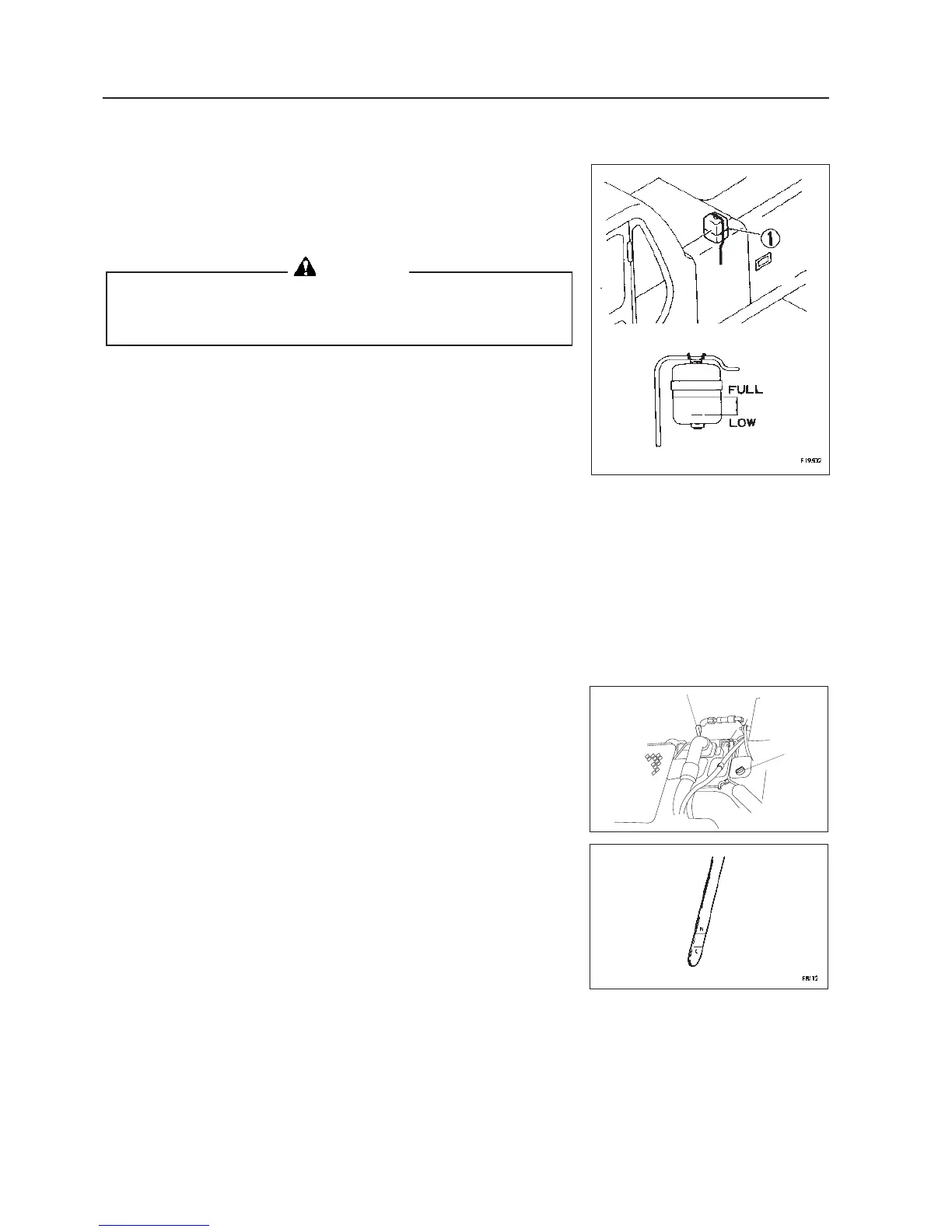

1. Open the rear door on the left side of the machine and check that the
cooling water level is between the FULL and LOW marks on radiator
reserve tank a (shown in the diagram on the right).
If the water level is low, add water through the water filler of reserve
tank a to the FULL level.
2. After adding water, tighten the cap securely.
3. If the reserve becomes empty, first inspect for water leaks and then
fill the radiator and the reserve tank with water.
24.3.2 CHECK OIL LEVEL IN ENGINE OIL PAN, ADD
OIL
1. Open the engine hood.
2. Remove dipstick G and wipe the oil off with a cloth.
3. Insert dipstick G fully in the oil gauge pipe, then take it out again.
4. The oil level should be between the H and L marks on dipstick G.
If the oil level is below the L mark, add engine oil through oil filler F.
For details of the oil to use, see 20. “USE OF FUEL, COOLANT AND
LUBRICANTS ACCORDING TO AMBIENT TEMPERATURE”.
