2-29
PC210/240-ENG

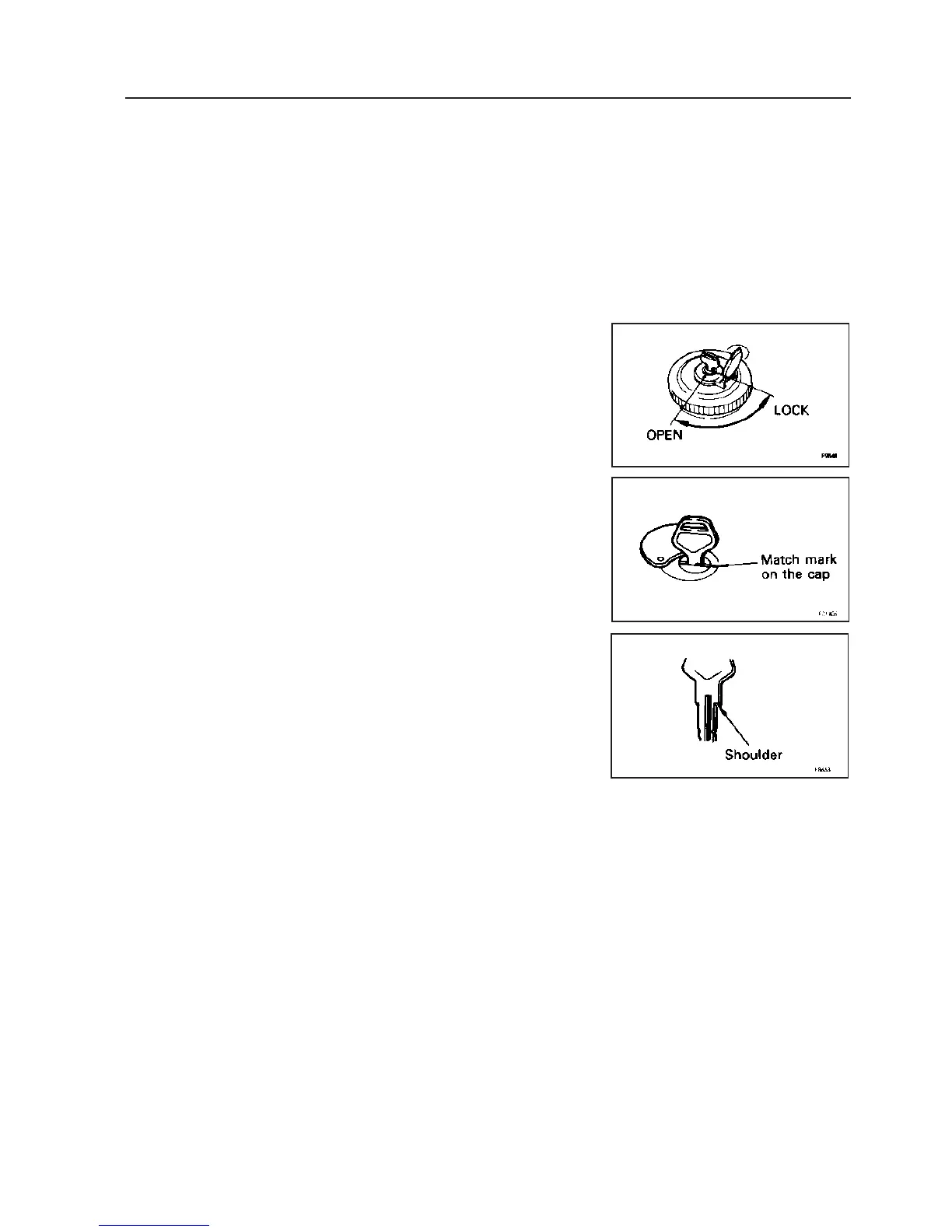

11.8 CAP, COVER WITH LOCK
The fuel filler, operator’s cab, engine hood, battery box cover, right
side door and left side door of the machine body are fitted with locks.
Use the starting switch key to lock or unlock these places.
11.8.1 METHOD OF OPENING AND CLOSING CAP WITH
LOCK (For the fuel tank filler port)
To open the cap
1. Insert the key into the cap.
2. Turn the key clockwise, align the match mark on the cap with the
rotor groove, then remove the cap.
To lock the cap
1. Turn the cap into place.
2. Turn the key and take the key out.
Insert the key as far as it will go. If the key is turned before it is in-
serted all the way, it may break.
11.8.2 METHOD OF OPENING AND CLOSING COVER
WITH LOCK (cover with Iock)
To open the cover (locked cover)
1. Insert the key.
2. Turn it counterclockwise and open the cover by pulling the cover grip.
To lock the cover
1. Close the cover and insert the key.
2. Turn the key clockwise and take the key out.
