13
Functions of Each Part
(1) Power switch Switches this instrument on/off. ( | ) for ON; (O) for OFF. ………… (p.23)
(2)
AC adapter input terminal
Connects the attached AC adapter. ……………………………………… (p.21)
(3) USBconnector Connects the USB cable when connecting to a PC. ………………… (p.82)
(4) RS-232Cconnector Connects the RS-232C cable when connecting to a PC. …………… (p.83)
(5)
Measurement angle selector
Selects measurement angle from among 1º, 0.2º and 0.1º. ……… (p.40)
CS-2000Plus only. For the CS-3000HDR/CS-3000, the measurement angle is
switched electrically according to the selection made on the MENU screen.
(6) Objective lens Performs measurement by pointing this part toward the object for
measurement. ………………………………………………………………… (p.71)
(7)
Focus adjustment ring
Adjusts focus of objective lens when measuring. …………………… (p.71)
(8) Focus distance scale Used as a guide for the focus position. ………………………………… (p.71)
(9) LCD screen Displays various screens like measurement and menu. …………… (p.16)
(10) Key panel Offers several keys for operation of this instrument. ………………… (p.14)
(11) Measurement button Used for measurement. ……………………………………………………… (p.71)
(12) Finder Used to observe objects for measurement. ……………………… (p.15, 70)
(13)
Diopter adjustment ring
Adjusts the diopter. ……………………………………………………… (p.15, 70)

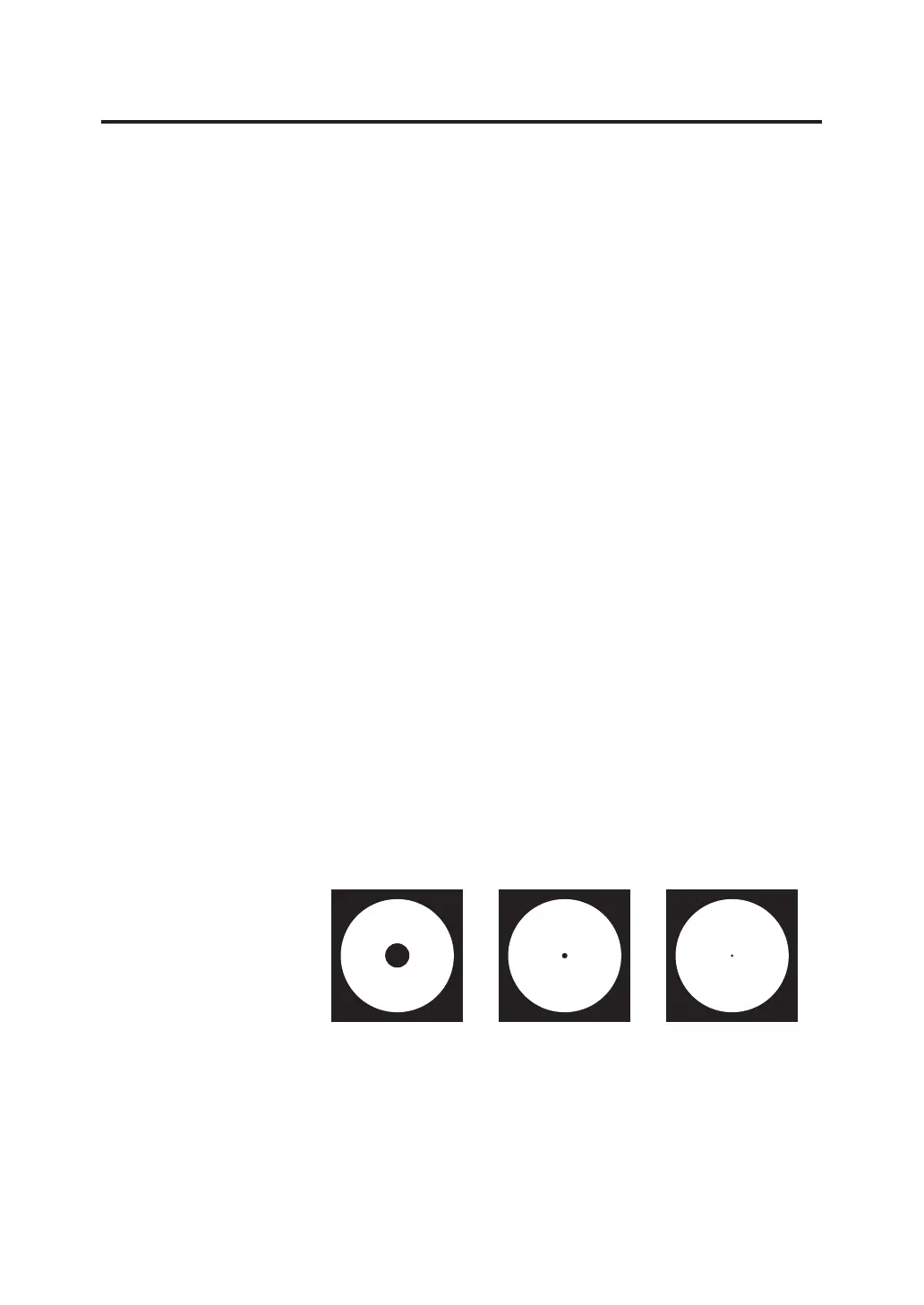

(14) Aperture Indicates measurement area. ………………………………………… (p.15, 70)
Size of black circle will change depending on the measurement angle.
Measurement angle 1° Measurement angle 0.2° Measurement angle 0.1°
(15)
Screw holes for fixing
Used to fix this instrument to a tripod or jig. …………………………… (p.20)
(16)
Vertically synchronized
signal input terminal
Connects the cable to input the vertically synchronized signal at the
external sync measurement. ………………………………………………… (p.31)
