Setting
Selecting Display Format
The formats for indicating the luminance and excitation values X, Y and Z can be selected as either
normal indication to display the values to four places of decimals, or as index number indication. If the
measurement values on the LCD are unreadable, use the index number indication.
* Display format setting: Normal, Index
* Factory default setting: ****.**** [F]
* When the number of displayed digits is six (luminance and X/Y/Z are 1000000 or more) in the normal
indication, “******.*****” will be displayed. In this case, the value will be displayed if you set it to the
index number indication.

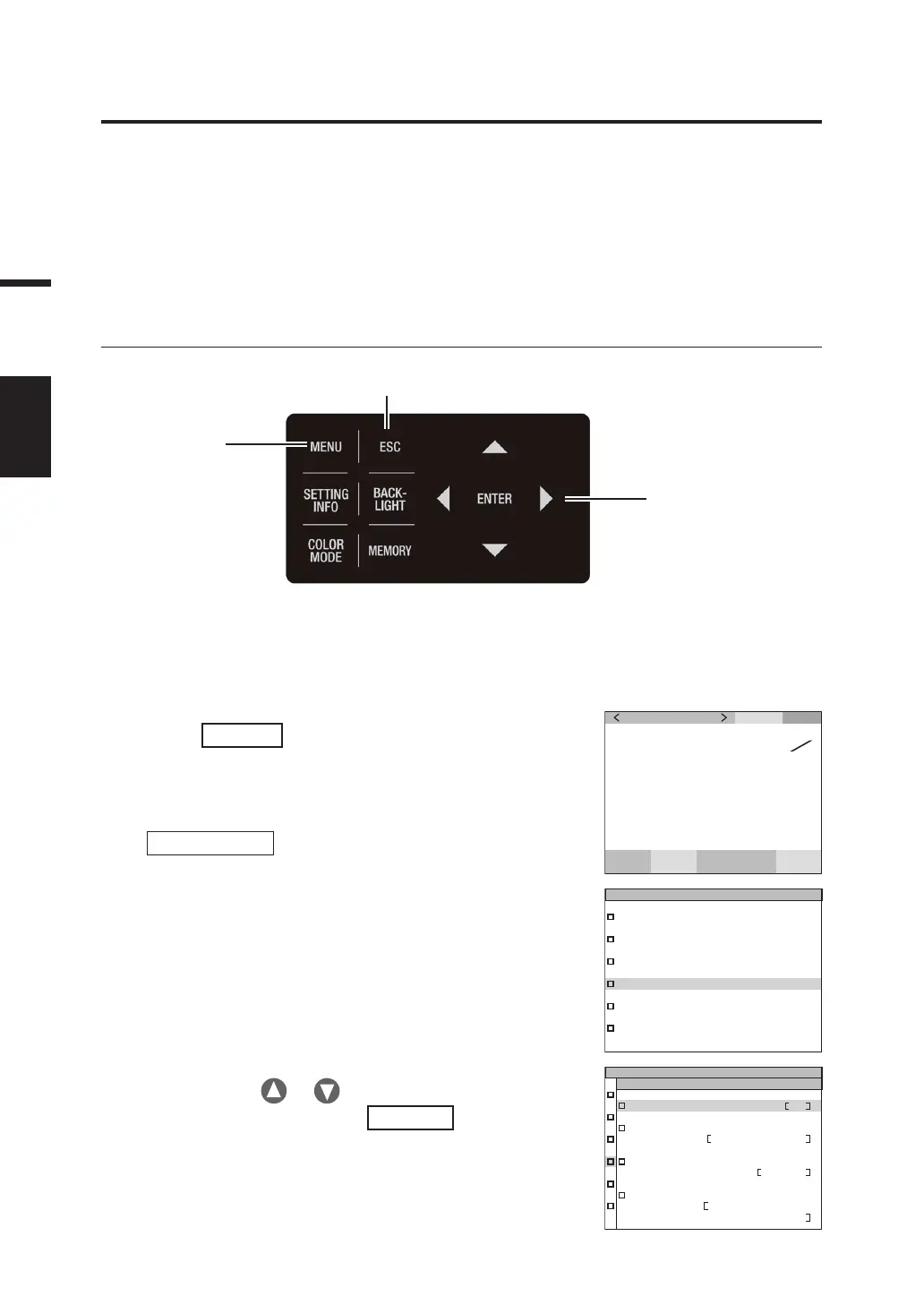

Operating Procedure
1
6, 7
2, 3, 4, 5
1. Press
MENU
key when the MEAS screen
is displayed.
The MENU screen appears on the LCD.
When the backlight of the LCD has been turned off via
BACKLIGHT
key on the MEAS screen, the
backlight is turned on.
MEAS SNGL
UC00
SPD
Nrm
CMF
2 ˚
SYN
[
Hz
]
59.94
ACC
Non
cd
m
2
Lv 49.66
0 . 4045
0 . 4088
x
y
1 ˚
MEAS
MEMORY
OPTION
SETUP
DARK MEASUREMENT
INFORMATION
MENU
2. Press either or key to select
[SETUP] and then press
ENTER
key.
The MENU - SETUP screen appears on the LCD.
The current set contents are displayed in the [DATA
FORM] item.
DATA FORM F
EXT VOLTAGE
3.3V
DATE TIME
2022/10/07
11:38:04
RS-232C BAUDRATE
115200bps
MENU
SETUP
(
2/3
)
