Chapter 5 Disassembly and Assembly
5-82

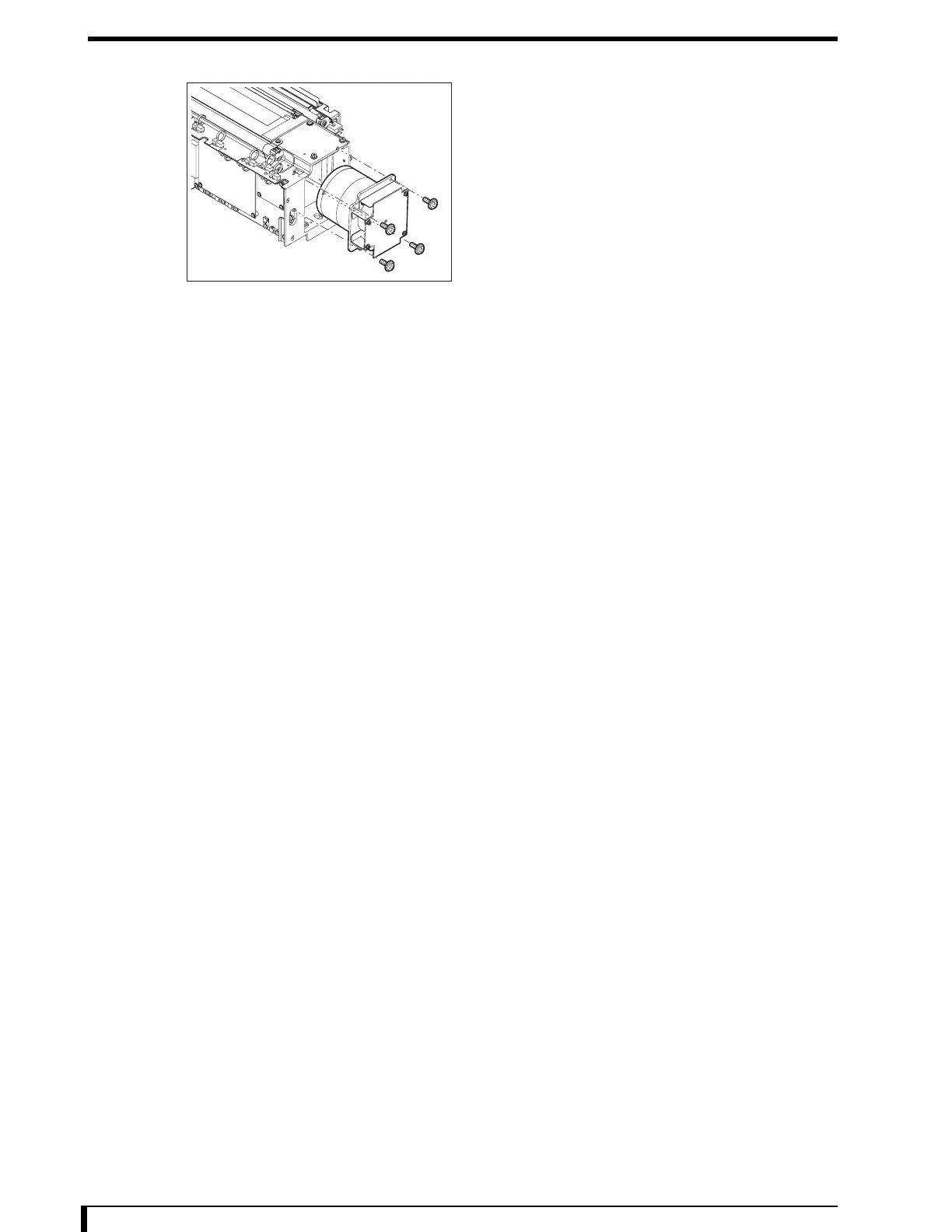

3 Remove the photomultiplier tube filter assembly.
•
4 screws (M4 x 8)
4 Install the new photomultiplier tube filter
assembly.
•
4 screws (M4 x 8)
5 Connect the cables removed in Step 2 to the
LMC.
•
CN301 (ACN301: cable)
• CN302 (ACN302: cable)
• CN303 (ACN303: cable)
• CN304 (ACN304: cable)
• J1 (AJ1: cable)
6 See "îš„ Installation Procedures (Page 5-14)" in "5.2.5 Removing/Installing the Optical Unit" to
install the optical unit.
Now, you have finished with the procedures to replace the photomultiplier tube filter assembly.
