KTM 1290 Super Duke R 2017 User Manual

12 SUSPENSION SETTING 114
Guideline
Compression damping
Comfort 15 clicks
Standard 12 clicks
Sport 9 clicks
Full payload 9 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.

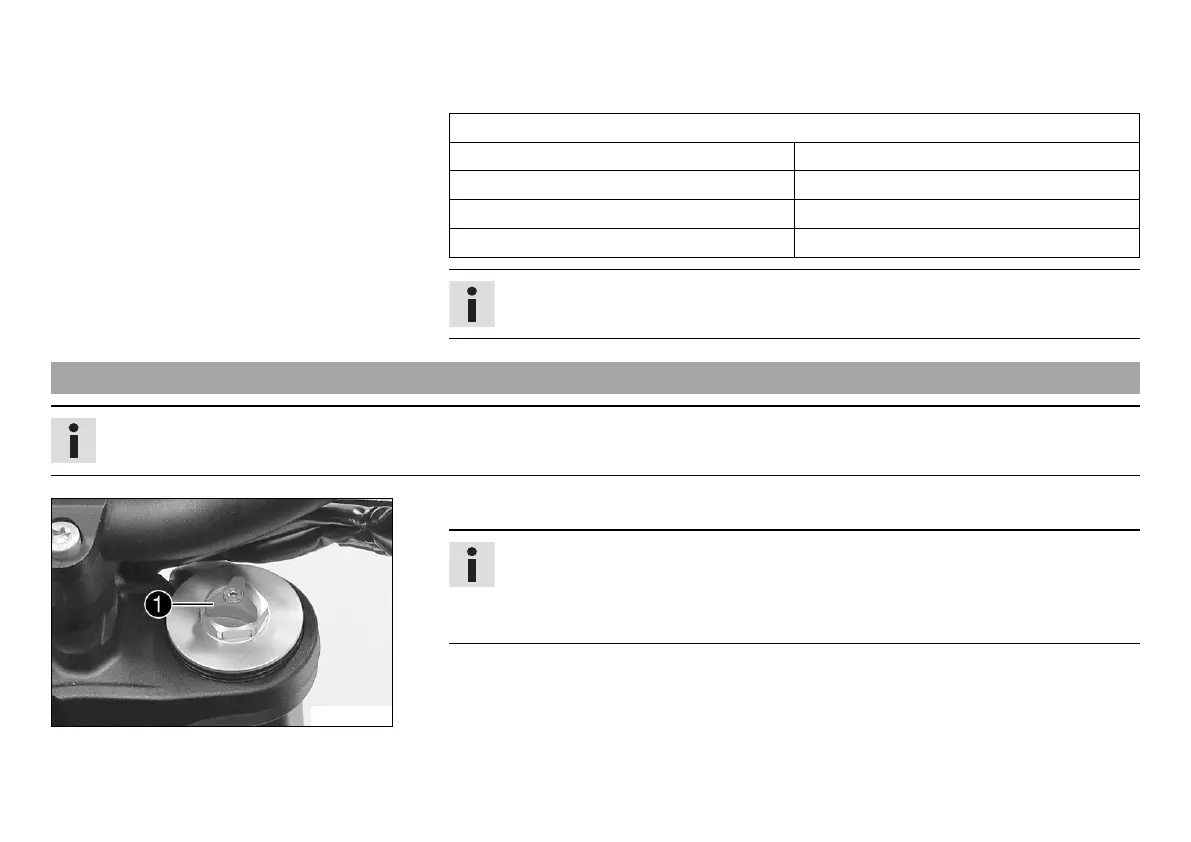

12.3 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
E00703-10
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of the right fork leg.
The rebound damping is located in right fork leg REB (red adjusting screw). The
compression damping is located in left fork leg COMP (white adjusting screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.

KTM 1290 Super Duke R 2017 Specifications

General

Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Fuel System	Keihin EFI, 56 mm throttle bodies
Transmission	6-speed
Rear Suspension	WP monoshock
ABS	Bosch 9ME Combined ABS
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Seat Height	835 mm
Dry Weight	195 kg
Power	177 hp
Torque	141 Nm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP Ø 48 mm
Front Brake	Dual 320 mm discs, Brembo 4-piston calipers
Rear Brake	Brembo two-piston caliper, 240 mm disc
Wheelbase	1482 mm
Fuel Tank Capacity	18 liters
