KTM 1290 Super Duke R 2017 User Manual

15 WHEELS, TIRES 156
15.1 Removing the front wheel
Preparatory work
– Lift the motorcycle with the rear lifting gear. ( p. 123)
– Lift the motorcycle with the front lifting gear. ( p. 124)
R01777-10
Main work
–

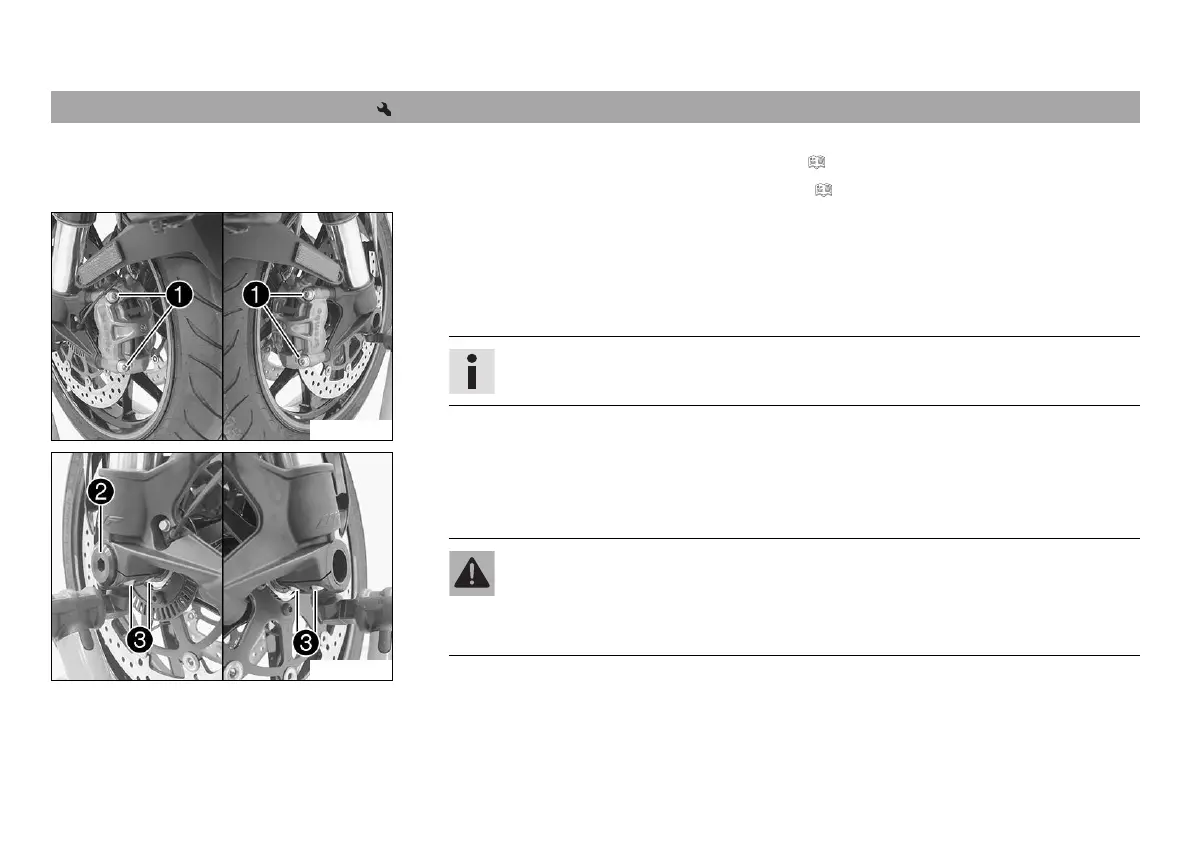

Remove screws
1
from both brake calipers.
– Press back the brake linings with a light lateral tilting of the brake calipers on the brake
disc. Pull the brake calipers carefully back from the brake discs and hang them to one
side.
Info
Do not pull the hand brake lever when the brake caliper has been removed.
R01778-10
–
Loosen screws
2
and
3
.
–
Unscrew screw
2
about six turns and press your hand on the screw to push the wheel
spindle out of the axle clamp. Remove screw
2
.
Warning
Danger of accidents Damaged brake discs reduce the braking effect.
– Always lay the wheel down in such a way that the brake discs are not dam-
aged.
– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of the
fork.

KTM 1290 Super Duke R 2017 Specifications

General

Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Fuel System	Keihin EFI, 56 mm throttle bodies
Transmission	6-speed
Rear Suspension	WP monoshock
ABS	Bosch 9ME Combined ABS
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Seat Height	835 mm
Dry Weight	195 kg
Power	177 hp
Torque	141 Nm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP Ø 48 mm
Front Brake	Dual 320 mm discs, Brembo 4-piston calipers
Rear Brake	Brembo two-piston caliper, 240 mm disc
Wheelbase	1482 mm
Fuel Tank Capacity	18 liters
