KTM 1290 Super Duke R 2017 User Manual

14 BRAKE SYSTEM 145
14.1 Antilock braking system (ABS)
H01998-10

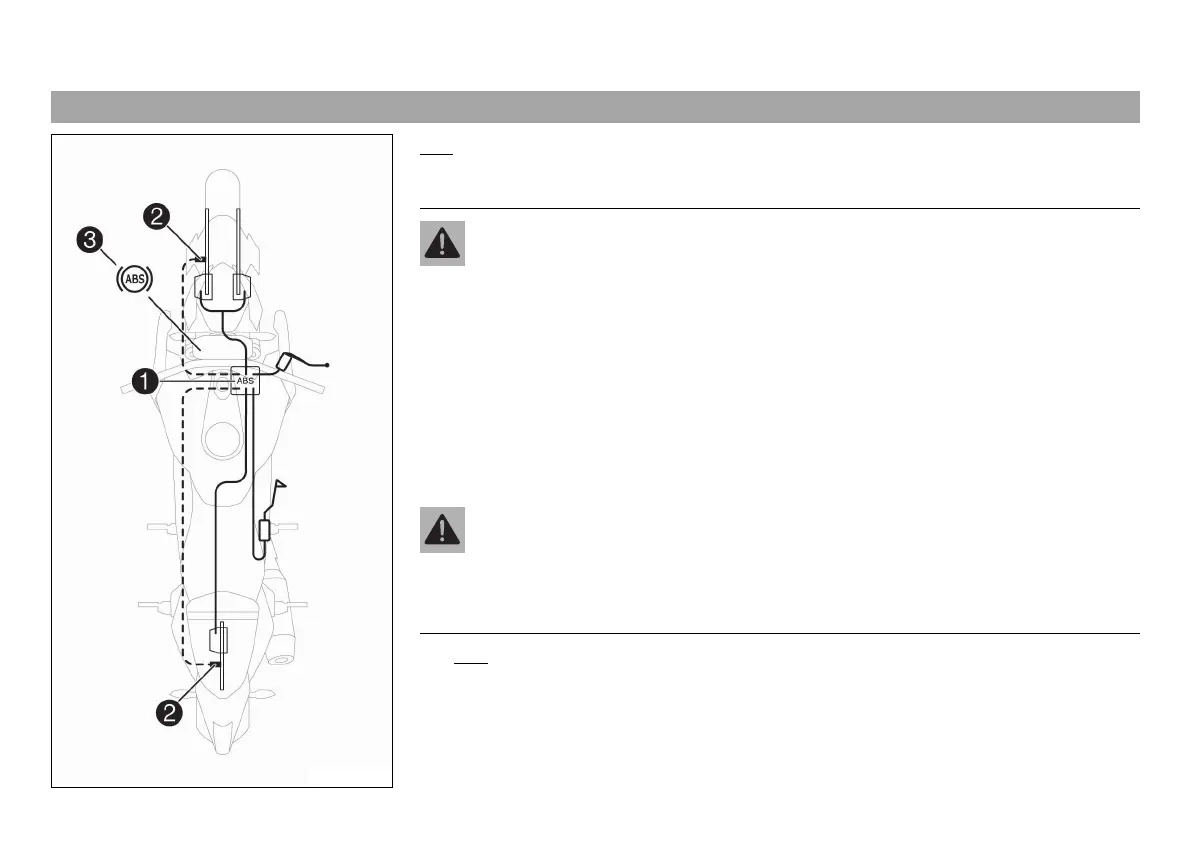

ABS unit
1
, which consists of a hydraulic unit, brake electronics control unit, and
return pump, is installed on the right vehicle side below the fuel tank. One wheel speed
sensor
2
is located in each case on the front and the rear wheel.
Warning
Danger of accidents Changes to the vehicle impair the function of the ABS.
– Only allow the rear wheel to spin with the front brake applied away from public
road traffic if the ABS is switched off.
– Do not make any changes to the suspension travel.
– Only use spare parts on the brake system which have been approved and recom-
mended by KTM.
– Only use tires/wheels approved by KTM with the corresponding speed index.
– Maintain the specified tire air pressure.
– Service work and repairs must be performed professionally. (Your authorized
KTM workshop will be glad to help.)
Warning
Voiding of the government approval for road use and the insurance coverage If the
ABS is switched off completely, the vehicle's approval for road use is invalidated.
– Only operate the vehicle in closed-off areas remote from public road traffic if the
ABS is switched off completely.
The ABS is a safety system that, within physical limitations, can prevent locking and slip-
ping of the wheels during braking.

KTM 1290 Super Duke R 2017 Specifications

General

Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Fuel System	Keihin EFI, 56 mm throttle bodies
Transmission	6-speed
Rear Suspension	WP monoshock
ABS	Bosch 9ME Combined ABS
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Seat Height	835 mm
Dry Weight	195 kg
Power	177 hp
Torque	141 Nm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP Ø 48 mm
Front Brake	Dual 320 mm discs, Brembo 4-piston calipers
Rear Brake	Brembo two-piston caliper, 240 mm disc
Wheelbase	1482 mm
Fuel Tank Capacity	18 liters
