KTM 1290 Super Duke R 2017 User Manual

16 ELECTRICAL SYSTEM 181
– Set the time and date.
16.7 Changing the fuses in the fuse box
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the passenger seat. ( p. 129)
– Remove the front rider's seat. ( p. 130)

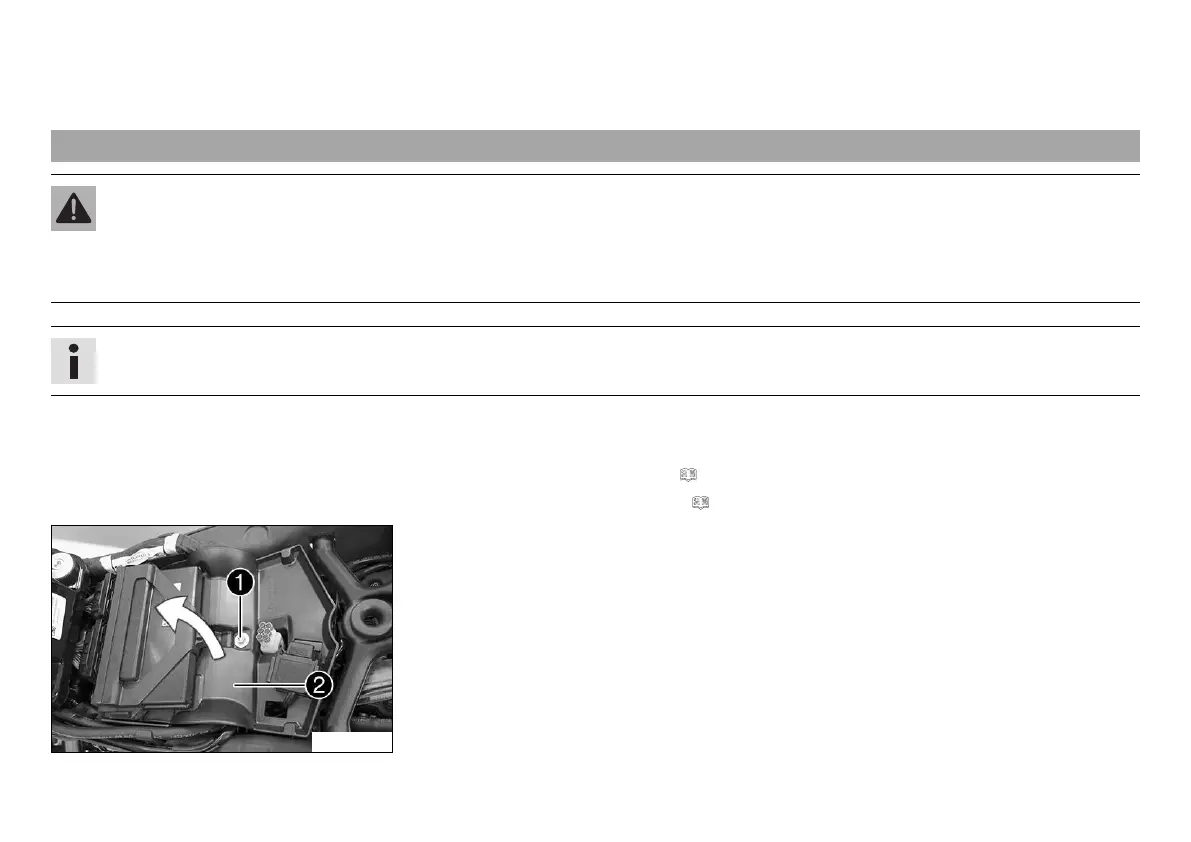

T00488-10
Main work
–
Remove screw
1
.
–
Lift cover
2
at the rear and pull toward the rear.
– Fold up the cover.

KTM 1290 Super Duke R 2017 Specifications

General

Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Fuel System	Keihin EFI, 56 mm throttle bodies
Transmission	6-speed
Rear Suspension	WP monoshock
ABS	Bosch 9ME Combined ABS
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Seat Height	835 mm
Dry Weight	195 kg
Power	177 hp
Torque	141 Nm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP Ø 48 mm
Front Brake	Dual 320 mm discs, Brembo 4-piston calipers
Rear Brake	Brembo two-piston caliper, 240 mm disc
Wheelbase	1482 mm
Fuel Tank Capacity	18 liters
