6 CONTROLS 26

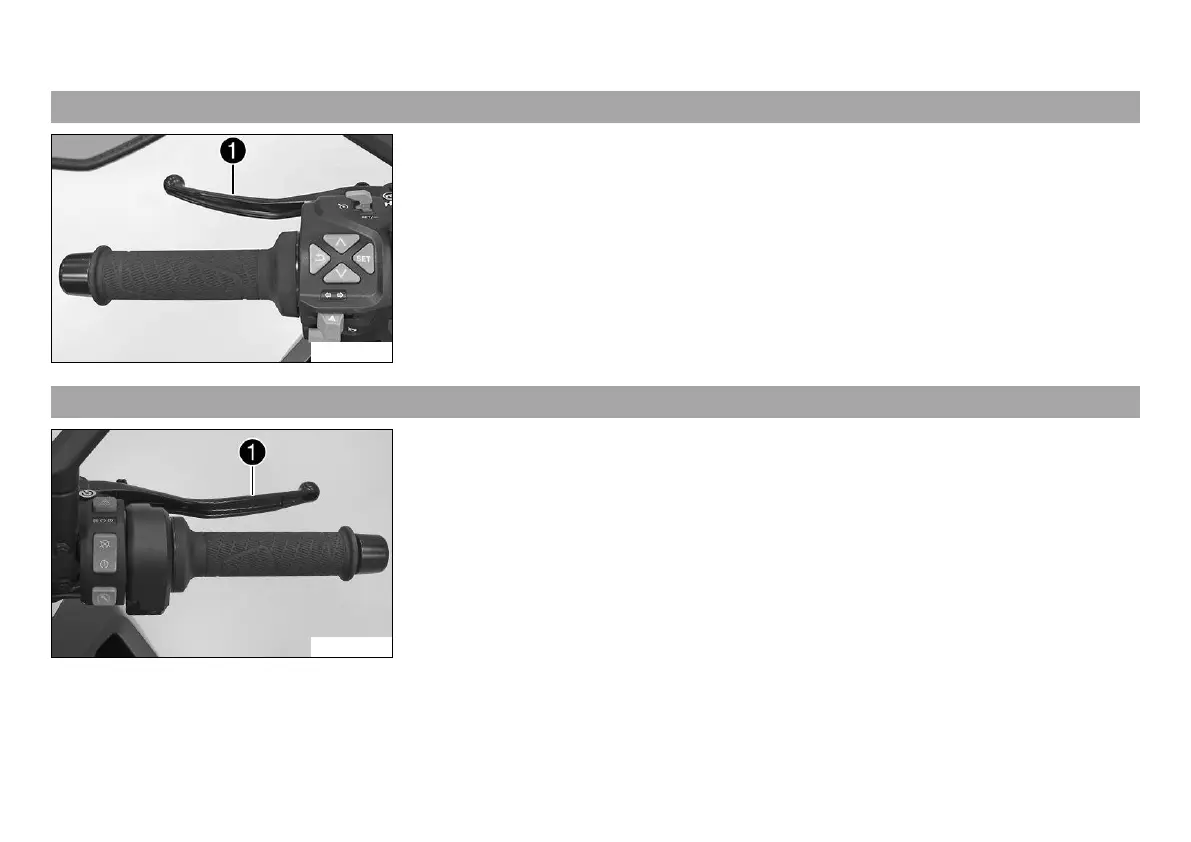

6.1 Clutch lever
S01712-10
Clutch lever
1
is fitted on the handlebar on the left.
The clutch is activated hydraulically and adjusts itself automatically.
6.2 Hand brake lever
S01709-10
The hand brake lever
1
is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.

Table of Contents

Other manuals for KTM 1290 Super Duke R 2017

Preview: Setup Instructions
Setup Instructions20 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the KTM 1290 Super Duke R 2017 and is the answer not in the manual?

KTM 1290 Super Duke R 2017 Specifications

General IconGeneral
Displacement1301 cc
Bore x Stroke108 mm x 71 mm
Fuel SystemKeihin EFI, 56 mm throttle bodies
Transmission6-speed
Rear SuspensionWP monoshock
ABSBosch 9ME Combined ABS
Front Tire120/70 ZR 17
Rear Tire190/55 ZR 17
Seat Height835 mm
Dry Weight195 kg
Power177 hp
Torque141 Nm
FrameChromium-Molybdenum steel trellis frame
Front SuspensionWP Ø 48 mm
Front BrakeDual 320 mm discs, Brembo 4-piston calipers
Rear BrakeBrembo two-piston caliper, 240 mm disc
Wheelbase1482 mm
Fuel Tank Capacity18 liters
