KTM 1290 Super Duke R 2017 User Manual

8 ERGONOMICS 81

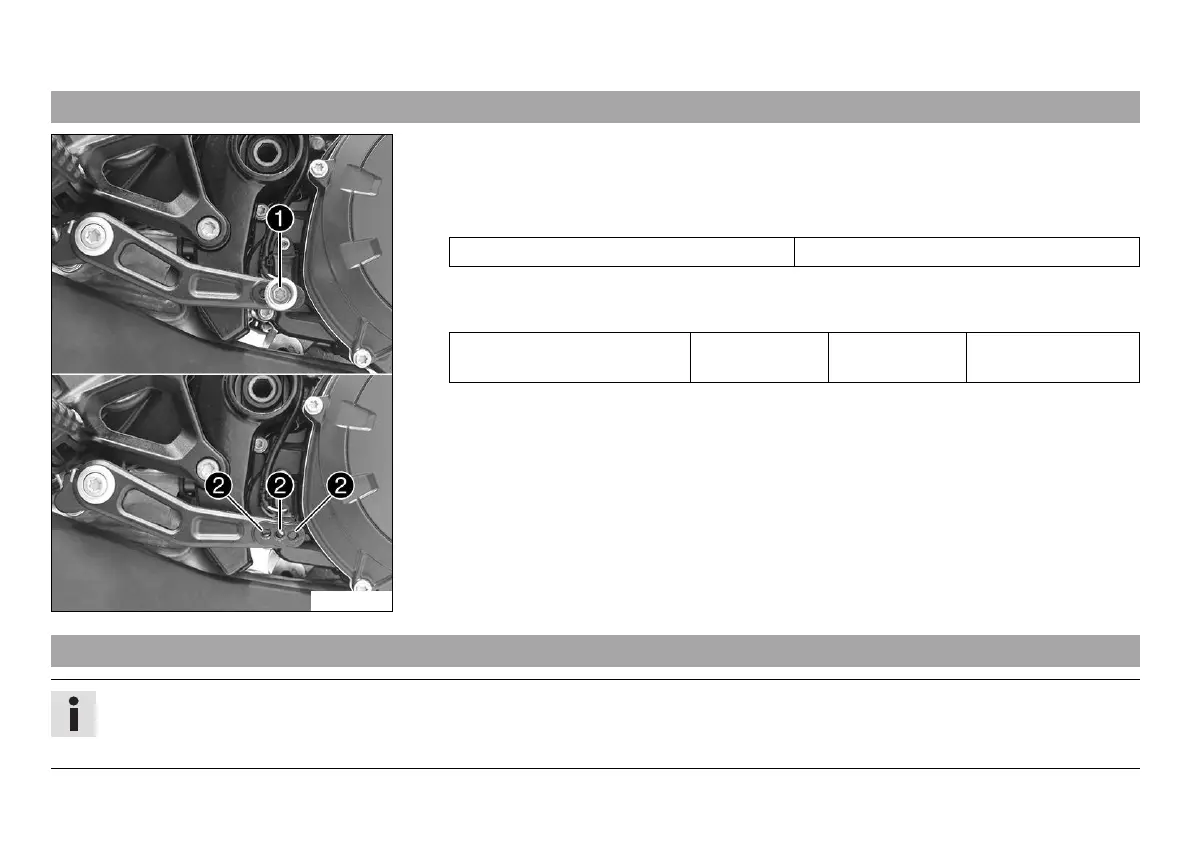

8.6 Setting the step plate of the foot brake lever
S01731-10
–
Remove screw
1
together with the step plate of the foot brake lever.
– To adjust the length of the foot brake lever, position the step plate of the foot brake
lever using screw
1
in a drill hole
2
.
Guideline
Standard Middle hole
–
Tighten screw
1
.
Guideline
Screw, step plate for foot
brake lever
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
8.7 Checking the basic position of the shift lever
Info
When driving, the shift lever must not touch the rider's boot when in the basic position.
When the shift lever keeps touching the boot, the transmission will be subject to an excessive load.

KTM 1290 Super Duke R 2017 Specifications

General

Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Fuel System	Keihin EFI, 56 mm throttle bodies
Transmission	6-speed
Rear Suspension	WP monoshock
ABS	Bosch 9ME Combined ABS
Front Tire	120/70 ZR 17
Rear Tire	190/55 ZR 17
Seat Height	835 mm
Dry Weight	195 kg
Power	177 hp
Torque	141 Nm
Frame	Chromium-Molybdenum steel trellis frame
Front Suspension	WP Ø 48 mm
Front Brake	Dual 320 mm discs, Brembo 4-piston calipers
Rear Brake	Brembo two-piston caliper, 240 mm disc
Wheelbase	1482 mm
Fuel Tank Capacity	18 liters
