833-POINT HITCH & DRAWBAR
To avoid personal injury or death:
A Be sure to stop the engine.
A Do not stand between tractor and implement
unless parking brake is applied.
A Before attaching or detaching implement,
locate the tractor and implement on a firm level
surface.
A Whenever an implement or other attachment is
connected to the tractor 3-point hitch, check
full range of operation for interference, binding
or PTO separation.
A Do not exceed maximum allowable length of
either lifting rod, or the lifting rod will come
apart and the 3-point equipment may fall.

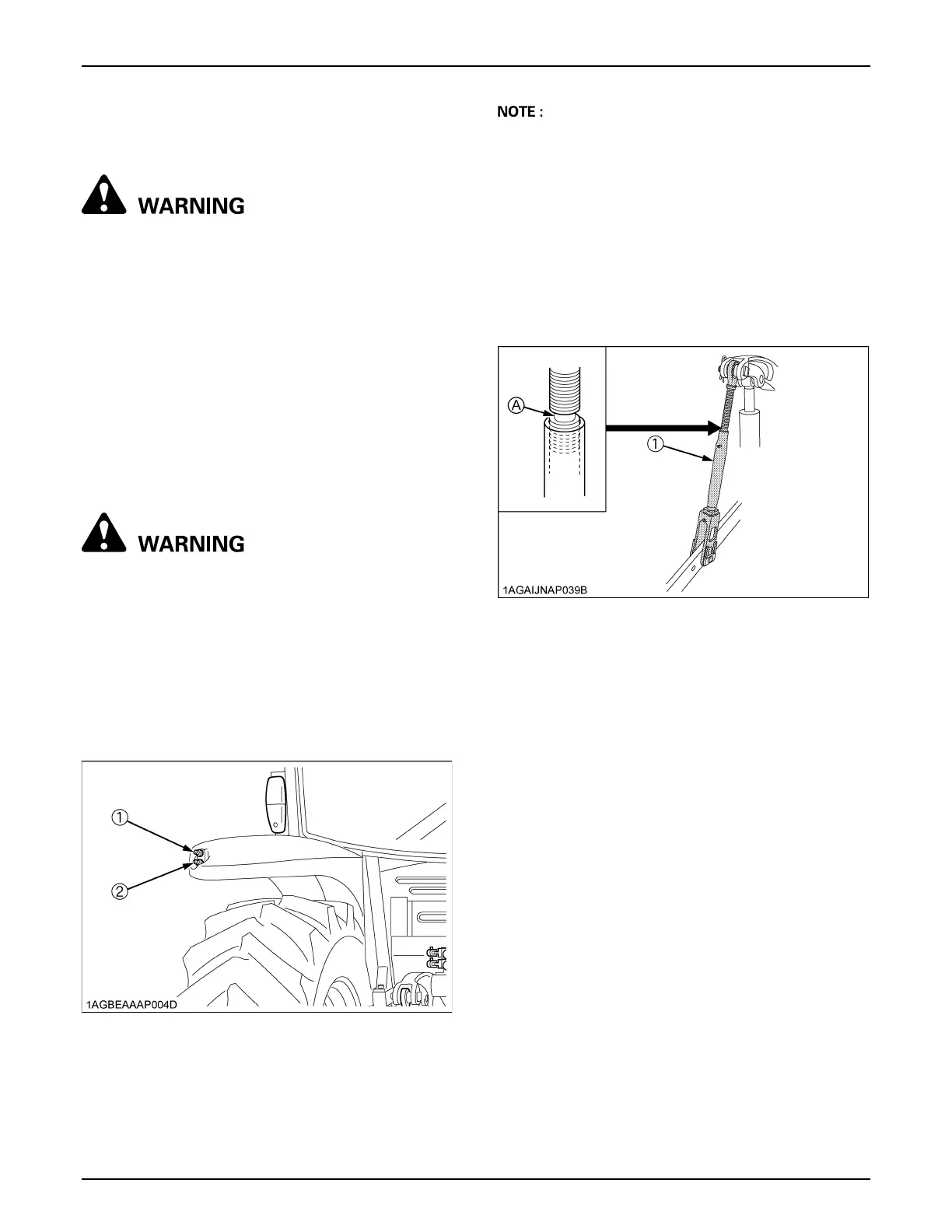

BRemote Hitch UP / DOWN Switch
To avoid personal injury or death:
A Do not use the Remote hitch up / down switch
when the implement is attached on the 3-point
hitch.
These switches are used to raise and lower the 3-point
hitch for aligning the arm with the implement only. Press
the "UP" switch and 3-point hitch goes up. Press the
"DOWN" switch and the 3-point hitch comes down.
Movement of the 3-point hitch stops when the switch is
released.
A If these switches are pushed, the 3-point hitch's
position lock is activated and 3-P. Lifting / Lowering
indicator starts flashing (2 or so flash every second). If
it flashing, press the 3-P. quick raise switch or 3-P.
quick lower switch to release the position lock. (The
indicator goes off or turns on.)
BLifting Rod (Left)
By turning the rod itself, the lifting rod varies its length.
When extending the rod, do not exceed the groove on the
rod thread.
2. Attaching and detaching implements
(1) "UP" switch
(2) "DOWN" switch
(1) Lifting rod (A) "GROOVE"
