PERIODIC SERVICE122

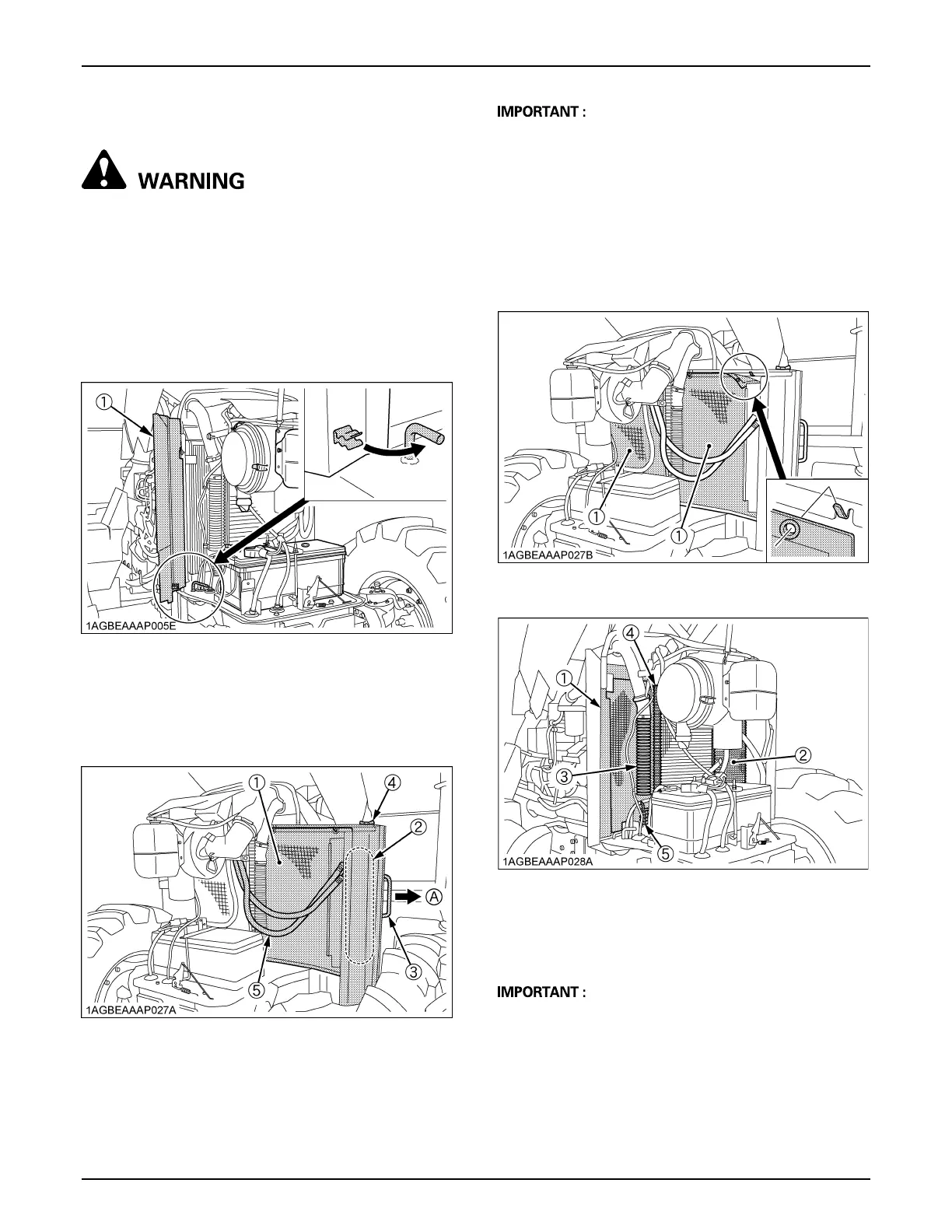

BCleaning Grill, Radiator and Screen
To avoid personal injury or death:
A Be sure to stop the engine before removing the
screen.
A The condenser and receiver become hot while
the air conditioner is running. Before checking
or cleaning them, wait long enough until they
cool down.
C Opening the panel (RH)
1. To open the panel, pull its front outward.
2. To close the panel, push it inward to get locked.
C Sliding the air conditioner condenser
1. Loosen the wing nut.
2. Hold the handle, slide the air conditioner condenser
assembly toward yourself.
A Do not hold the air conditioner receiver or the air
conditioner pipes when sliding out the condenser for
cleaning.
C Cleaning
1. Check front grill to be sure it is clean from debris.
2. Detach the screen and remove all foreign materials.
3. Check radiator, air conditioner condenser, intercooler,
oil cooler and fuel cooler to be sure they are clean from
debris.
A Grill and screen must be clean from debris to prevent
engine from overheating and to allow good air intake
for air cleaner.
(1) Panel (RH)
(1) Condenser
(2) Receiver
(3) Handle
(4) Wing nut
(5) Air conditioner hose
(A) "PULL"
(1) Screen
(1) Radiator
(2) Air conditioner condenser
(3) Intercooler
(4) Oil cooler
(5) Fuel cooler
