PERIODIC SERVICE134
BDraining Fuel Tank Water

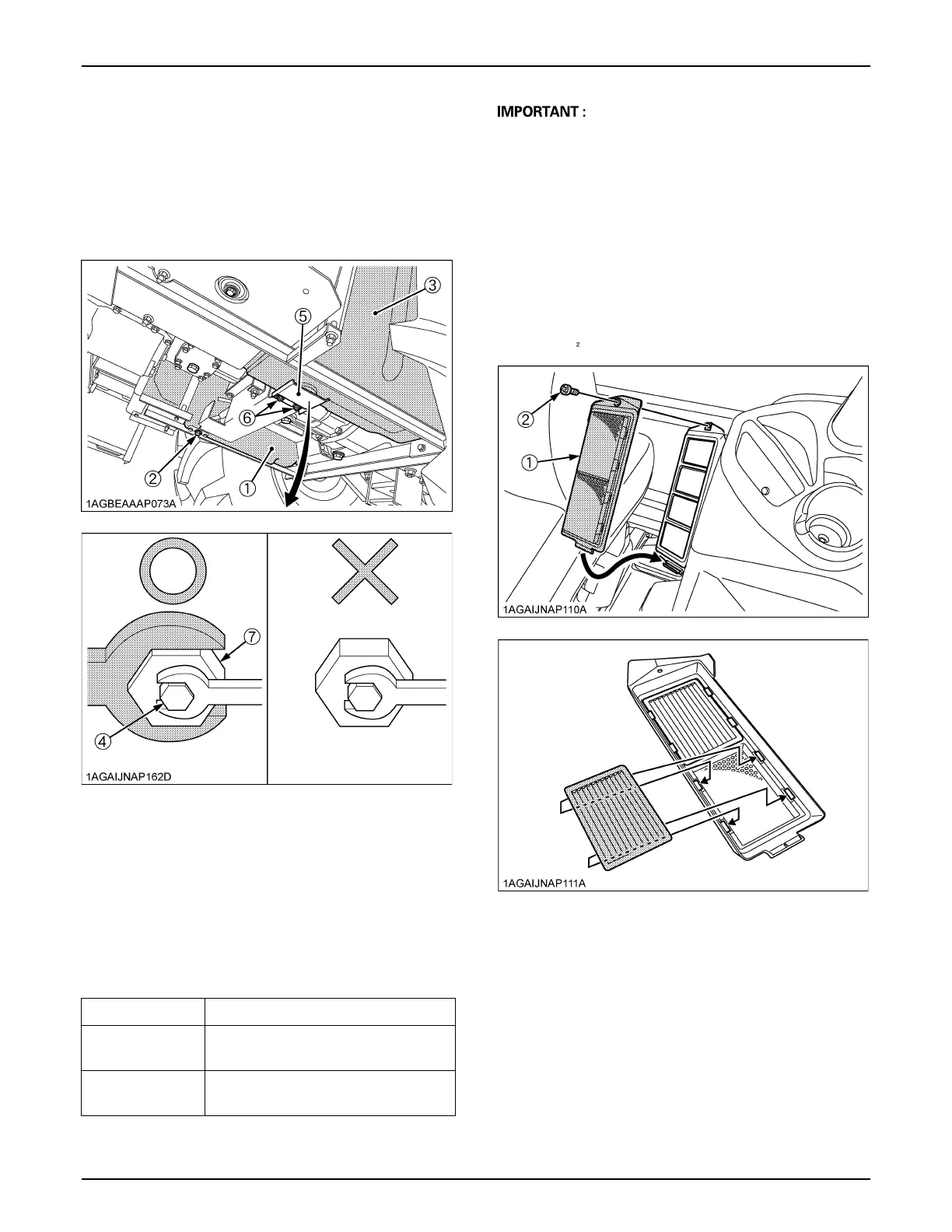

1. Loosen the drain plug at the bottom of the right fuel
tank to let sediments, impurities and water out of the
tank. Finally tighten up the plug.
2. Loosen 2 bolts and remove plate (left).
Do the same for left side to drain them.
Finally tighten up the plug and attach the plate (left).
C Detaching and reattaching the drain plug (Left)
In detaching and reattaching the drain plug, be sure to
apply a wrench at the hex part of the flange to keep it in
place. And detach or reattach the drain plug (bolt).
A If the fuel contains impurities, such as water, drain the
fuel tank at shorter intervals.
A Drain the fuel tank before operating the tractor after a
long period of storage.
A The fuel tank is made of plastic. Be careful not to
overtighten the bolts.
BCleaning Inner Air Filter
Remove the inner filter, and blow air from the direction
opposite to the filter's normal air flow.
Pressure of compressed air must be under 205 kPa
(2.1 kgf/cm , 30 psi).
(1) Fuel Tank (Right)
(2) Drain plug (Right)
(3) Fuel Tank (Left)
(4) Drain plug with seal washer (Left)
(5) Plate (Left)
(6) Bolt
(7) Flange (Hex part)
Tightening torque
Drain plug (M10)
22.8 to 26.2 N-m
(2.3 to 2.7 kgf-m, 16.8 to 19.3 ft-lbs)
Tank cover lock
bolt (M8)
23.5 to 27.5 N-m
(2.4 to 2.8 kgf-m, 17.3 to 20.3 ft-lbs)
(1) Inner air filter
(2) Knob bolts
