55OPERATING THE TRACTOR

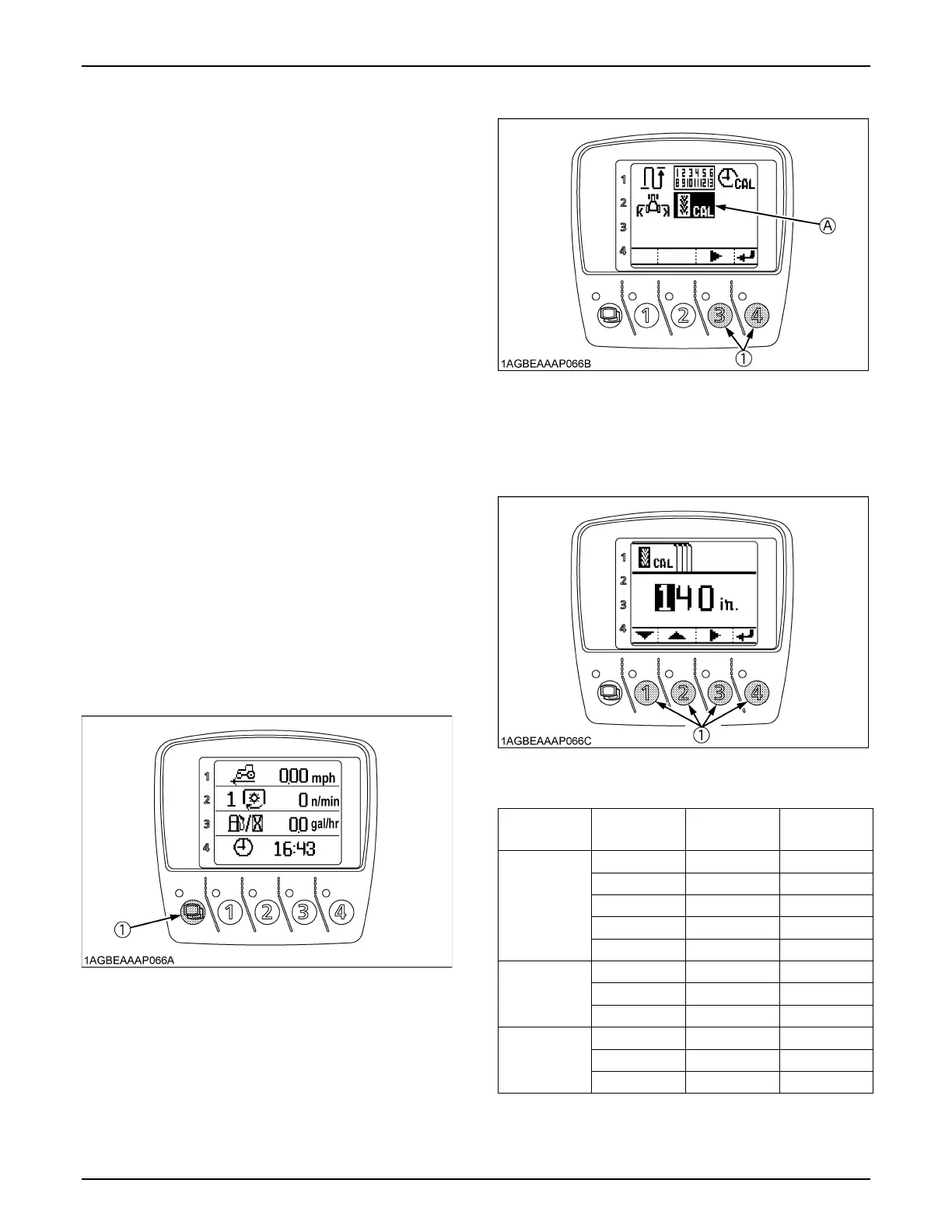

SIDE DIGITAL DISPLAY
This display shows the following information.
1. 4 rows with 30 types of tractor information, such as
travel speed, PTO rpm and mileage can be selected
by the operator.
2. Operating history for the past 4 months can be
displayed.
This chapter covers "How to view and select" the 4 rows
of information.
For the meanings and selection procedures of other data,
as well as changing the display settings, refer to the "SIDE
DIGITAL DISPLAY" appendices at the back of this
manual.
BInitial Setting
Before use, make sure the tire circumference installed,
the clock and the working range of implement are set.
Otherwise, the travel speed, work area, work distance and
other data will not be correctly displayed.
C Setting procedure
1. Turn on the key switch. With the following data on the
screen, hold down the mode selector switch. Various
screens can be selected.
2. Select the tire circumference setting mode with Switch
3 and press Switch 4 to go to the tire circumference
setting screen.
3. Check to see if the tire circumference is correctly
preset. If not, correct the numerical settings with
Switches 1, 2 and 3, referring to the table below. Press
Switch 4 to save the new setting.
4. Select the tire circumference setting mode with Switch
3 and press Switch 4 to go to the tire circumference
setting screen.
5. Check to see if the tire circumference is correctly
preset. If not, correct the numerical settings with
Switches 1, 2 and 3, referring to the table below. Press
Switch 4 to save the new setting.
C Tire circumference chart
(1) Mode selector switch
(1) Switch (A) "Tire circumference setting mode"
(1) Switch
Tractor type
Tire
specification
Rear tire size Entry (in.)
M6-101
Standard 18.4R30 193
18.4-30 193
16.9-34 197
18.4R34 206
18.4-34 206
M6-111
Standard 18.4R34 206
18.4-34 206
16.9-34 197
M6-131
M6-141
Standard 18.4R38 204
16.9-38 198
520/70R38 205
