89HYDRAULIC UNIT

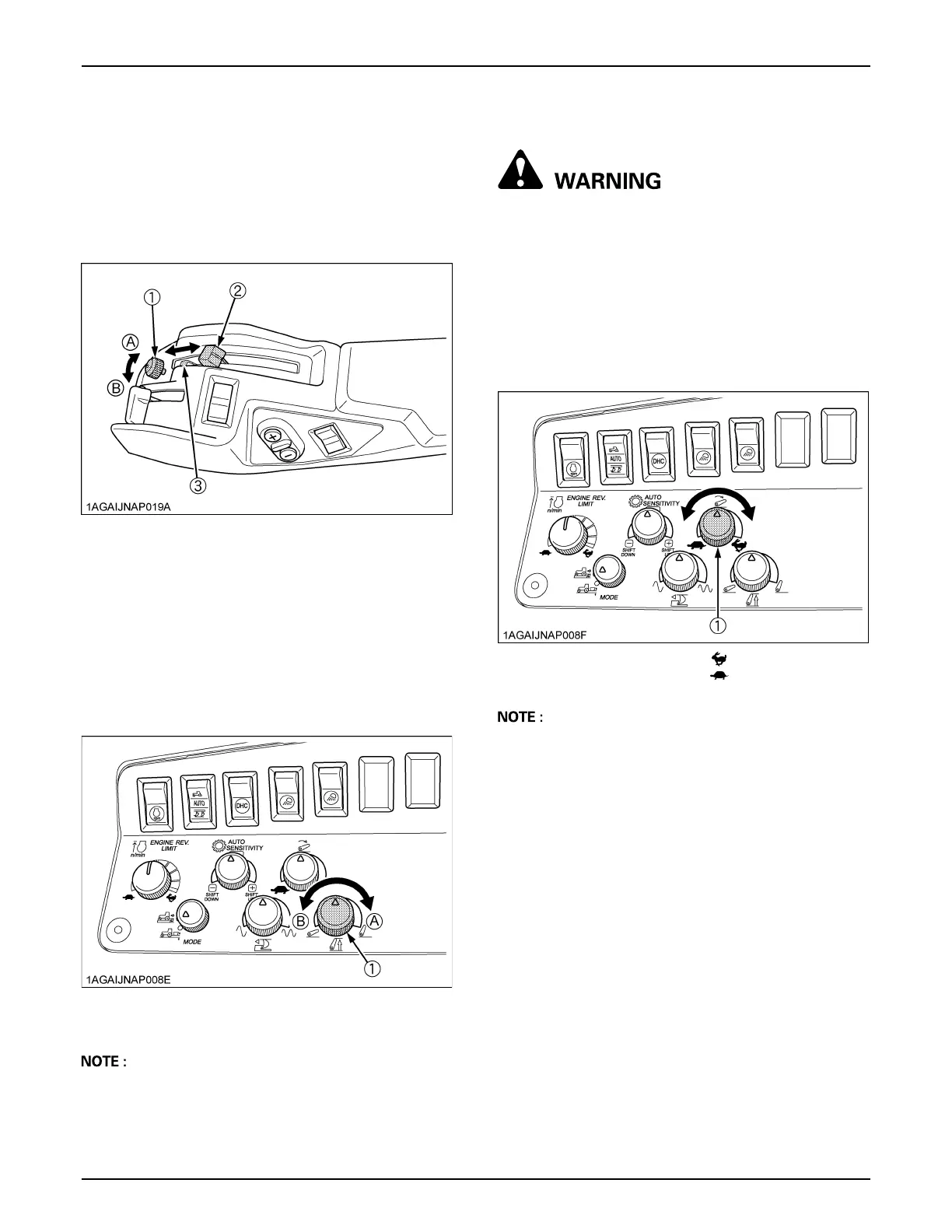

BBottom Limit Control Dial
This dial is used to change the bottom limit of the 3-point
hitch.
1. Turn the dial in the "UP" direction, and the bottom limit
of the hydraulic control lever will raise.
2. Turn the dial in the "DOWN" direction, and the bottom
limit of the hydraulic control lever will lower.
BLift Arm Top Limit Adjustment Dial
This dial is used to change the top limit of the 3-point hitch.
1. Turn the dial in the "HIGH" direction, and the top limit
of the 3-point hitch will raise.
2. Turn the dial in the "LOW" direction, and the top limit
of the 3-point hitch will lower.
A Utilizing the lift arm top limit adjustment dial, the 3-P.
Lifting / Lowering switch and the hydraulic control lever
can be used to adjust the top limit to any level.
B3-Point Hitch Lowering Speed Adjustment
Dial
To avoid personal injury or death:
A Fast lowering speed may cause damage or
injury. Lowering speed of implement should be
adjusted to 2 or more seconds.
This dial is used to change the 3-point hitch's lowering
speed.
1. Turn the dial in the "FAST" direction, and the 3-point
hitch's lowering speed will increase.
2. Turn the dial in the "SLOW" direction, and the 3-point
hitch's lowering speed will decrease.
A This dial is not operative for complete hydraulic lock.
For traveling or for checking an implement, set the 3-
point hitch lowering lock lever in the "LOCK" position.
(1) Bottom limit control dial
(2) Hydraulic control lever
(3) Bottom limit
(A) "UP"
(B) "DOWN"
(1) Lift arm top limit adjustment dial (A) "HIGH"
(B) "LOW"
(1) 3-point hitch lowering
speed adjustment dial
"FAST"
"SLOW"
