155PERIODIC SERVICE

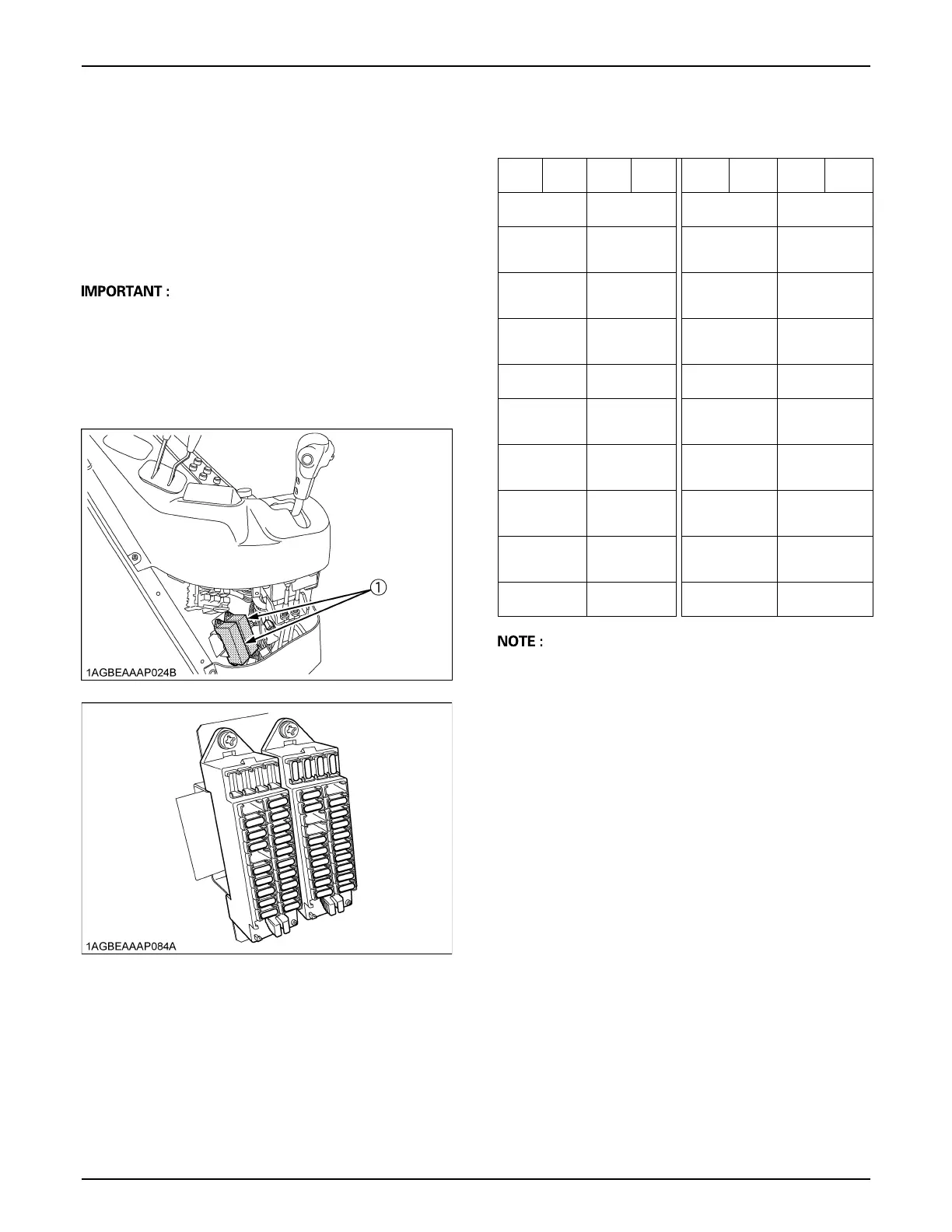

BReplacing Fuse
The tractor electrical system is protected from potential
damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
If any of the fuses should blow, replace with a new one of
the same capacity.
A Before replacing a blown fuse, determine why the fuse
blew and make any necessary repairs. Failure to
follow this procedure may result in serious damage to
the tractor electrical system. Refer to the
"TROUBLESHOOTING" section of this manual or your
local KUBOTA Dealer for specific information dealing
with electrical problems.
C Protected circuit
*1 Depending on the specification, this fuse is not
equipped.
(1) Fuse box
[Fuse box 1]
[5A]
Spare
[10A]
Spare
[15A]
Spare
[20A]
Spare
[10A]
Brake lamp
[15A] Work light
(Cabin side)
[10A] ECU
(Suspension)*1
[5A] Switch
(Transmission
control)
[15A] Work light
(Front upper)
[15A]
Head lamp
[5A]
ECU (Switch)
[5A]
Switch
(Hitch control)
[30A]
Air conditioner fan
motor
[30A]
Defogger
[10A]
ECU (Main)
[10A]
Air conditioner
compressor
[7.5A]
Main meter
[10A]
Option lamp
[15A]
Tail lamp
[10A]
4WD Brake
[5A]
4WD, Bi-speed,
Differential lock
[15A]
Work light (Rear)
[15A]
Hazard
[5A]
Radio
[5A]
Engine control,
PTO valve
[10A]
Work light
(Bonnet)
[10A]
Dome light, Radio
[5A]
Air conditioner
(Fan control)
[10A]
Turn signal
[15A]
Seat compressor
[10A]
Horn
[15A]
Wiper
[15A]
Loader power
aux socket
[15A]
Cigarette socket
[15A]
Loader plug
[5A]
Starter relay
[5A]
Seat switch
[15A]
Work light (Option)
[5A] Back up
(ECU, Meter)
To Next Page
