53OPERATING THE TRACTOR

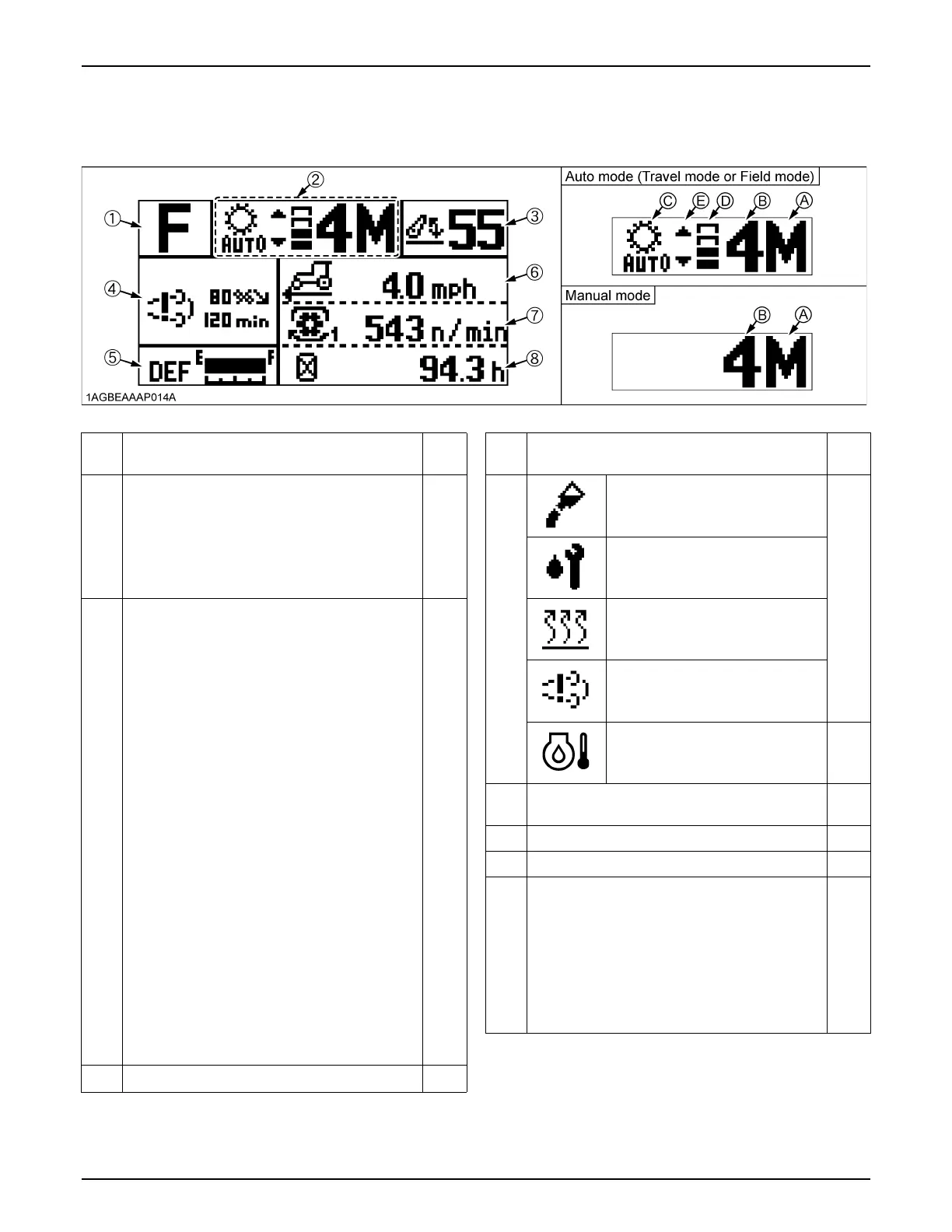

LCD MONITOR
This display provides the operator with a variety of information necessary to operate the tractor. Further, part of the display
can be modified by the operator as required.
No. Description
Ref.
page
No. Description
Ref.
page
(1)
Displays "F", "R" or "N"
"F" is displayed when forward operation is
selected with the shuttle lever.
"R" is displayed when reverse operation is
selected with the shuttle lever.
"N" is displayed when the lever is in the neutral
position.
44
(4)
DEF/AdBlue® low level icon
indicator
22
DEF/AdBlue® poor quality icon
indicator
(2)
(A) Displays "H", "M", "L" or "N"
Displays the position of the range gear shift that
was selected with the Power shift/Range shift
lever.
(B) Displays 1, 2, 3, 4, 5, 6, 7 or 8
Displays the position of the Power shift ratios that
was selected with the Power shift/Range shift
lever.
(C) Auto mode indicator
Lights up when the Auto mode is selected.
Stays off while in the manual mode.
(D) Auto-shift bar display
Displays the automatic shift-down possible speed
range (factory setting: 2 shifts) that was preset to
the highest position of the set speed with the
Power shift/Range shift lever in the Auto mode, as
well as the current gear ratio.
Lights up when the Auto mode is selected.
Stays off while in the manual mode.
(E) Shift-up/Shift-down indicator
While in the Auto mode, the shift-up indicator
flashes before shift-up occurs, and the shift-down
indicator flashes before shift-down occurs.
Stays off while in the manual mode.
42
42
65
66
66
DEF/AdBlue® freeze icon indicator
SCR system trouble
Low temperature regulation
indicator
32
(5)
DEF/AdBlue® gauge
Displays the fluid level in the DEF/AdBlue® tank.
51
(6) Travel speed ---
(7) PTO speed 54
(8)
Performance monitor
5 information can be selected by the operator.
1. Elapsed time (hour meter)
2. Trip time
3. Engine RPM dual memory A/B
4. Rev- limiter control setting speed
5. A trouble-spot-pinpointing error code and
the related control unit or DPF parked
regeneration remaining time.
54
54
59
59
162
(3)
3 point hitch position
---
