65OPERATING THE TRACTOR
BOperation
1. Press the Auto-Mode switch to select "Travel mode" or
"Field mode" according to your applications. Once
selected, the Auto-Mode indicator on the meter panel
lights up.
When the switch is moved to the middle position
"OFF", the mode indicator goes out.
2. Use the up-shift/down-shift button on the power shift /
range shift lever or on the armrest to select a field
speed.
The selected speed can be checked in the selected-
speed display of the meter panel.
3. Now the setting is completed.
Travel mode: For pulling trailers and other hauling
operations.
Field mode: For plowing, subsoiling and other tilling
operations, or for harvesters and other
PTO-driven implements.

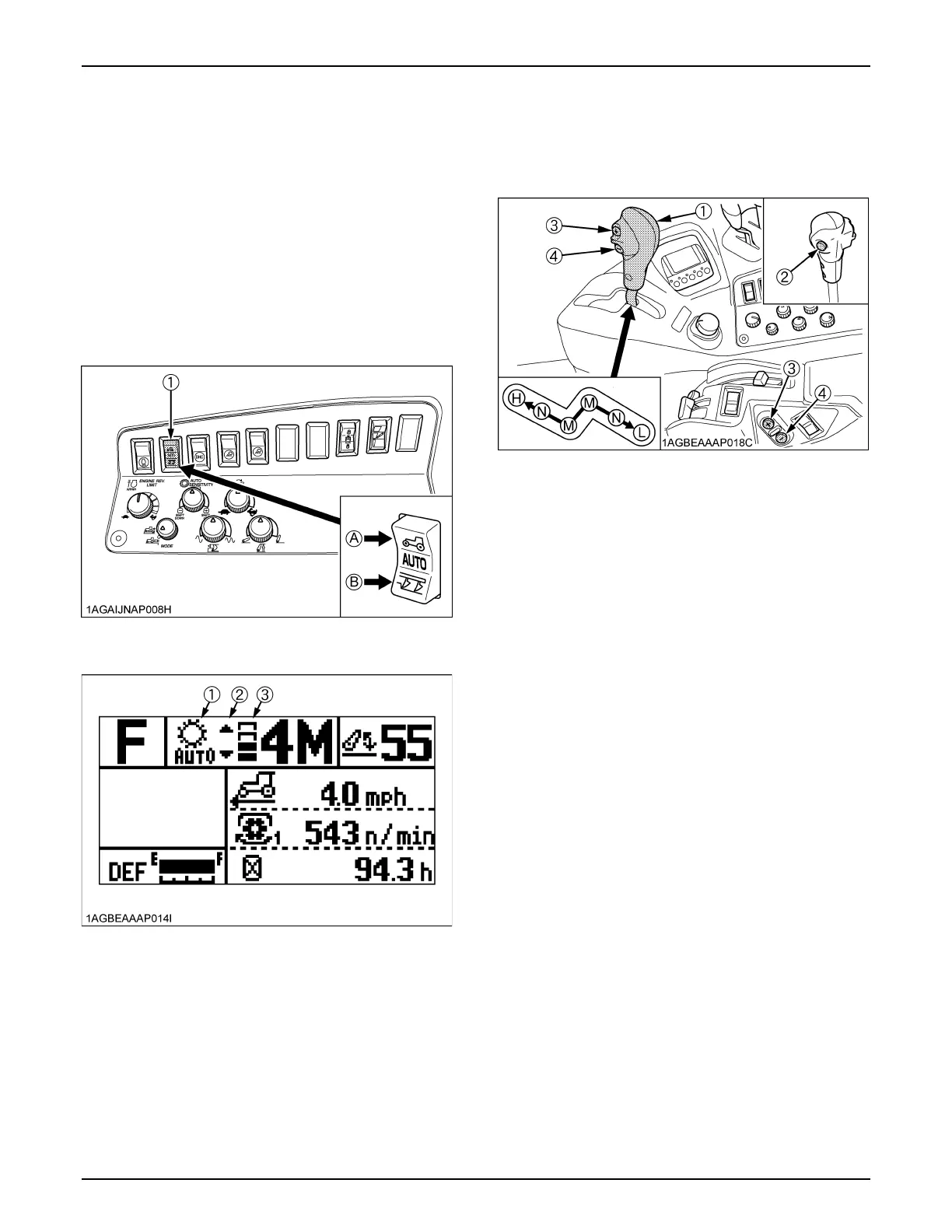

(1) Auto-Mode switch (A) "Travel mode"
(B) "Field mode"
(1) Auto-Mode indicator
(2) Shift-up/shift-down indicator
(3) Auto-shift bar indicator
(1) Power shift / Range shift lever
(2) Clutch button
(3) Up-shift button (+)
(4) Down-shift button (-)
To Next Page
