159PERIODIC SERVICE
BReplacing Light Bulb
1. Head light
Take the bulb out of the light body and replace with a
new one.
2. Other lights
Detach the lens and replace the bulb.
BReplacing Head Lamp
To avoid personal injury:
A Be careful not to drop the bulb, hit anything
against the lamp, apply excess force, and get
the lamp scratched. If broken, glass may cause
injury. Pay more attention to halogen lamps in
particular, which have high pressure inside.
A Before replacing the lamp, be sure to turn off
the light and wait until the bulb cools down,
otherwise, you may get burned.

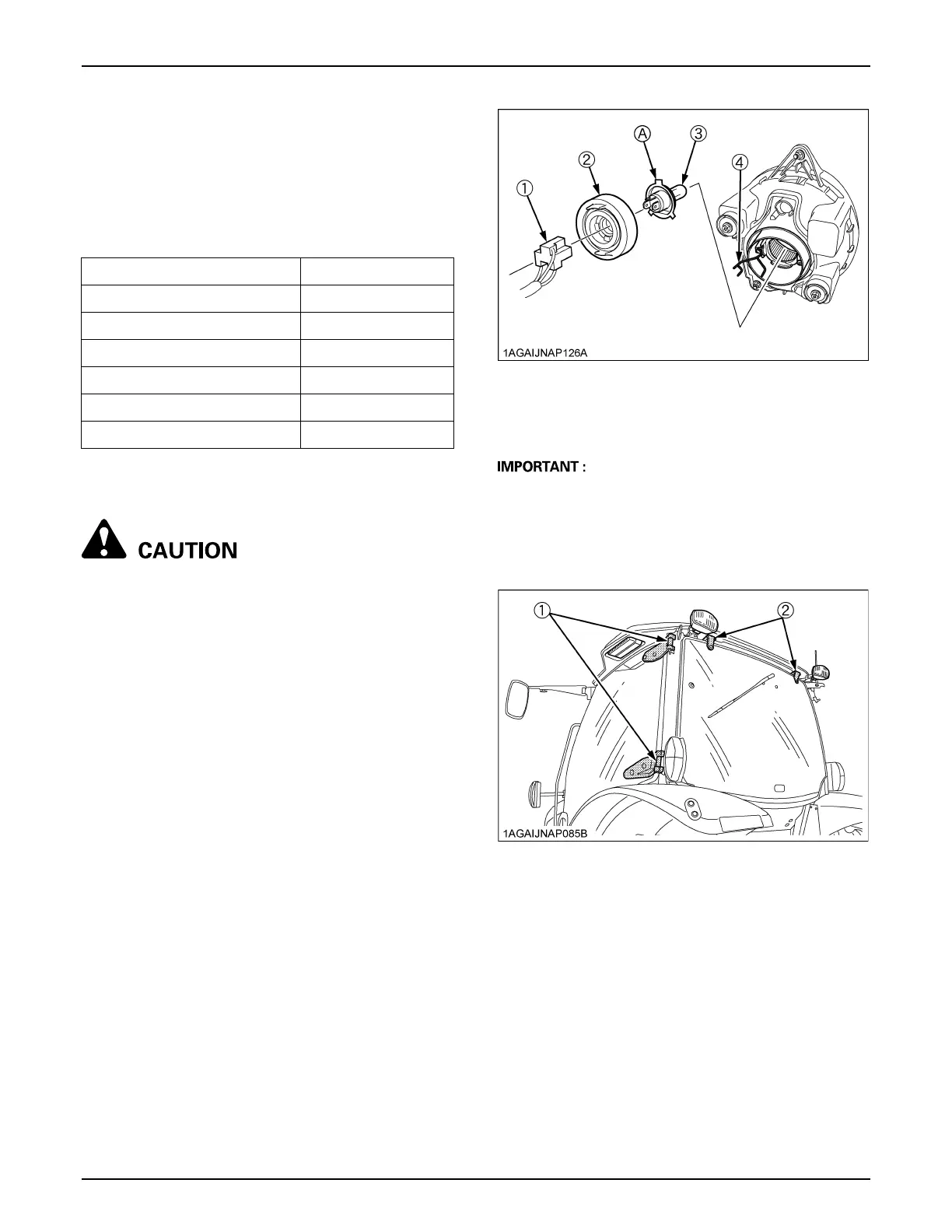

1. While pushing the right and left lock buttons, pull and
remove the electrical connector.
2. Remove the rubber boot.
3. Remove the clamping fixture and take out the bulb.
4. Replace with a new bulb and reinstall the head lamp
assembly in the reverse order.
A Be sure to use a new bulb of the specified wattage.
A Never touch the bulb surface (glass) with bare hands.
Fingerprints, for example, may break the bulb.
BLubricating Points
Light Capacity
Head light 60 / 55 W
Turn signal light (Front & Rear) 21 W
Stop light / Tail light 21 / 5 W
Work light (CAB) 35 W
Work light (Hood) 35 W
Dome light (Room lamp) 5 W
(1) Electrical connector
(2) Rubber boot
(3) Bulb
(4) Clamping fixture
(A)"Base's wider projection to face
upward"
(1) Door hinge
(2) Rear window hinge
To Next Page
