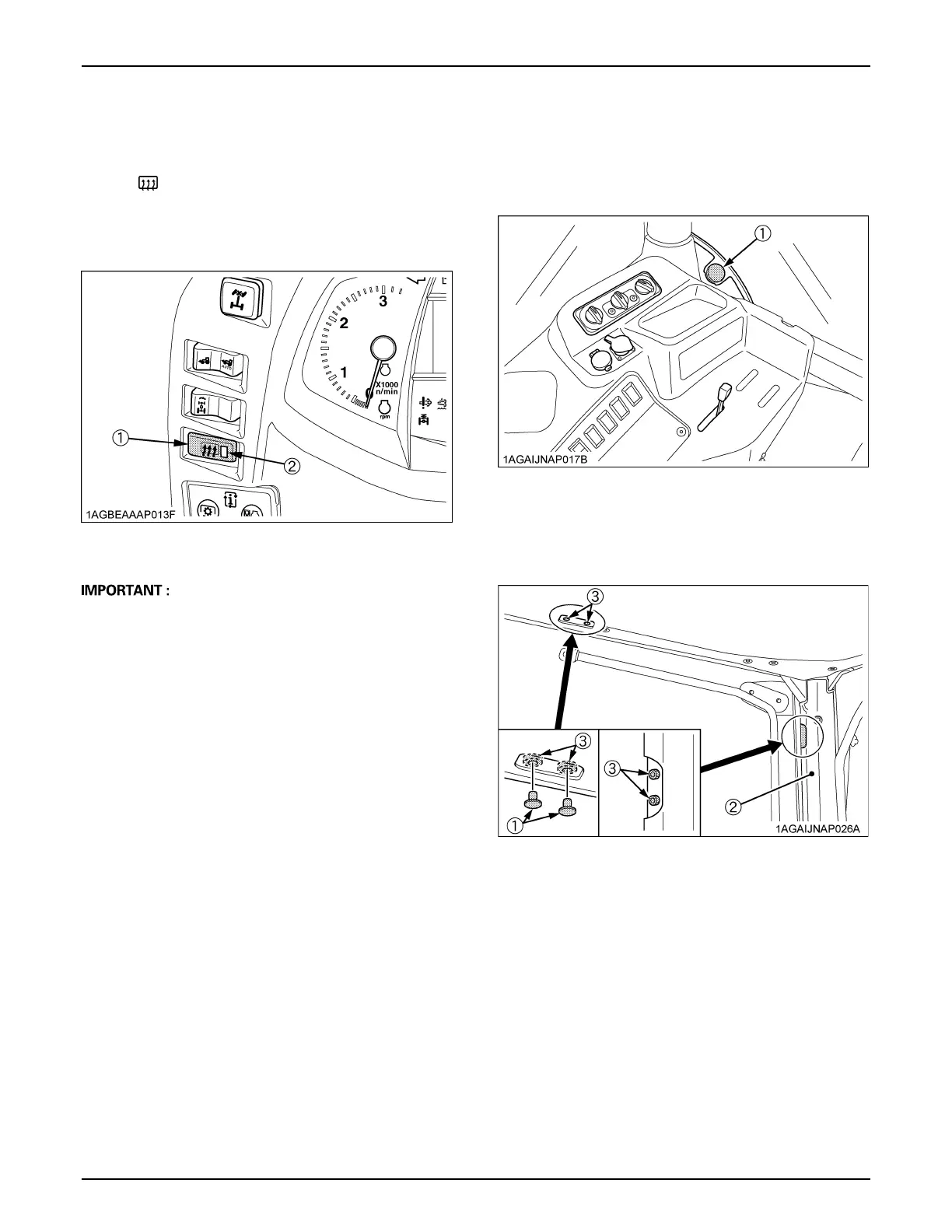

109CAB OPERATION
REAR DEFOGGER WITH TIMER (if
equipped)
To activate the rear window defogger, press the switch
marked while the key switch is in the "ON" position.
Then, the yellow light on the switch turns on. After about
15 minutes, the defogger automatically turn off as well as
the yellow light. To turn the defogger off, press the switch
once more.
A The battery will discharge if the defogger and the key
switch remain in the "ON" or "ACC" positions with the
engine stopped.
Always use the defogger with the engine running.
INSTALLING THE IMPLEMENT CONTROL
BOX
1. Make a slit into the corner cover. Introduce the
implement control cable and hydraulic hose through
this slit into the CAB.
2. Remove the plugs in inner roof, and cut off the hatched
zone of the rear pillar cover with a utility knife. Attach
the control box stay with internal nuts.
(1) Defogger switch
(2) Yellow light
(1) Corner cover
(1) Plug
(2) Pillar cover
(3) M6 nuts
To Next Page
