103CAB OPERATION
CAB OPERATION
DOOR AND WINDOW

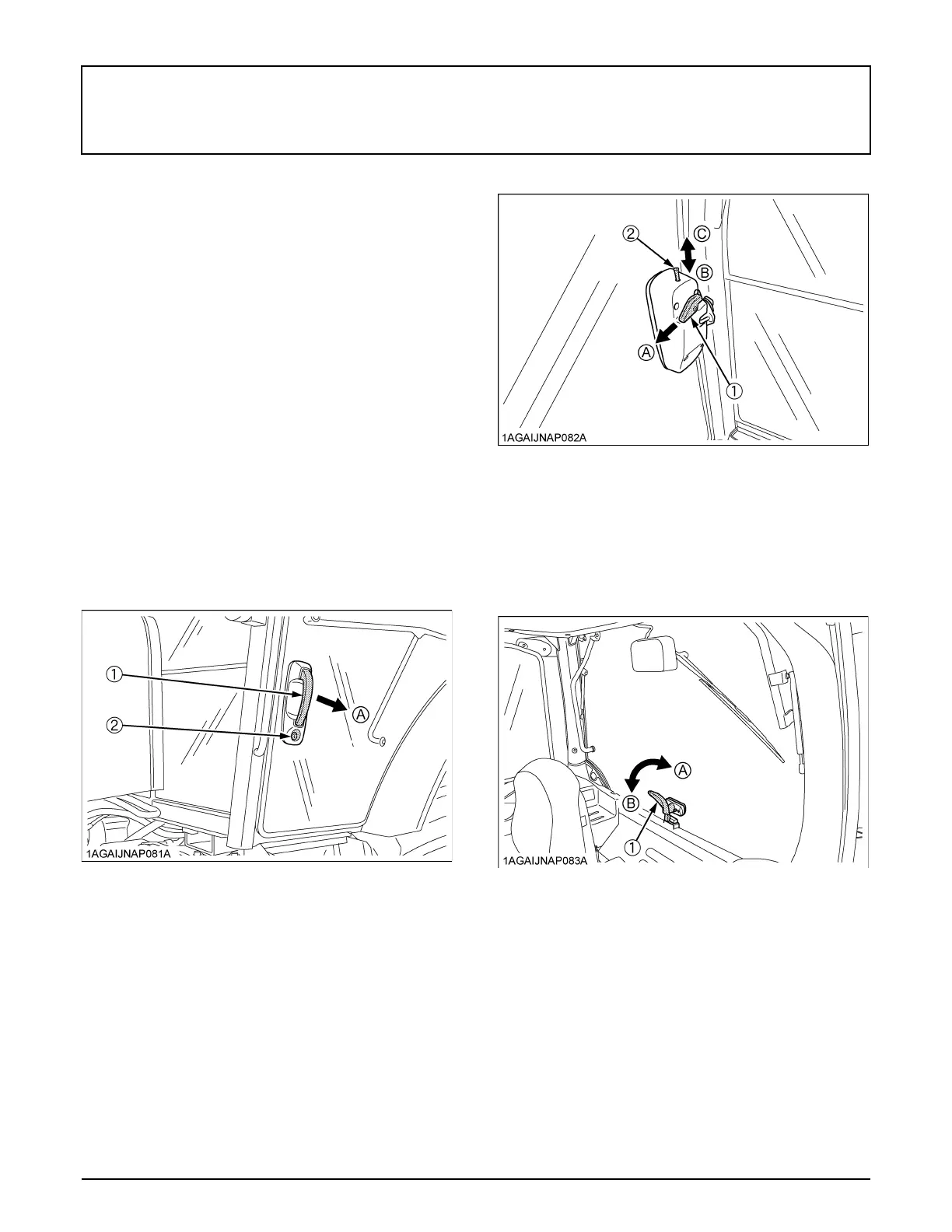

BLocking and Unlocking the Door
BOpening the Door
BRear Window
Turn the rear window handle clockwise to the vertical
position and push the handle. The rear window is opened
by the gas spring cylinder.
From the outside ...... Insert the key into the door lock.
Turn the key clockwise to unlock
the door. To lock the door, turn
the key in the opposite direction.
The key can be removed when it
is in the vertical direction.
From the inside ....... Push down the lock knob to lock
the door.
Pull up the lock knob to unlock
the door.
From the outside ...... Unlock the door, and pull the
outer door handle.
(1) Outer door handle
(2) Door lock
(A) "PULL"
From the inside ........ Unlock the door and pull the
inner door handle.
(1) Inner door handle
(2) Lock knob
(A) "PULL"
(B) "PUSH" (Lock)
(C) "PULL" (Unlock)
(1) Rear window handle (A) "OPEN"
(B) "CLOSE"
