TIRES, WHEELS AND BALLAST98

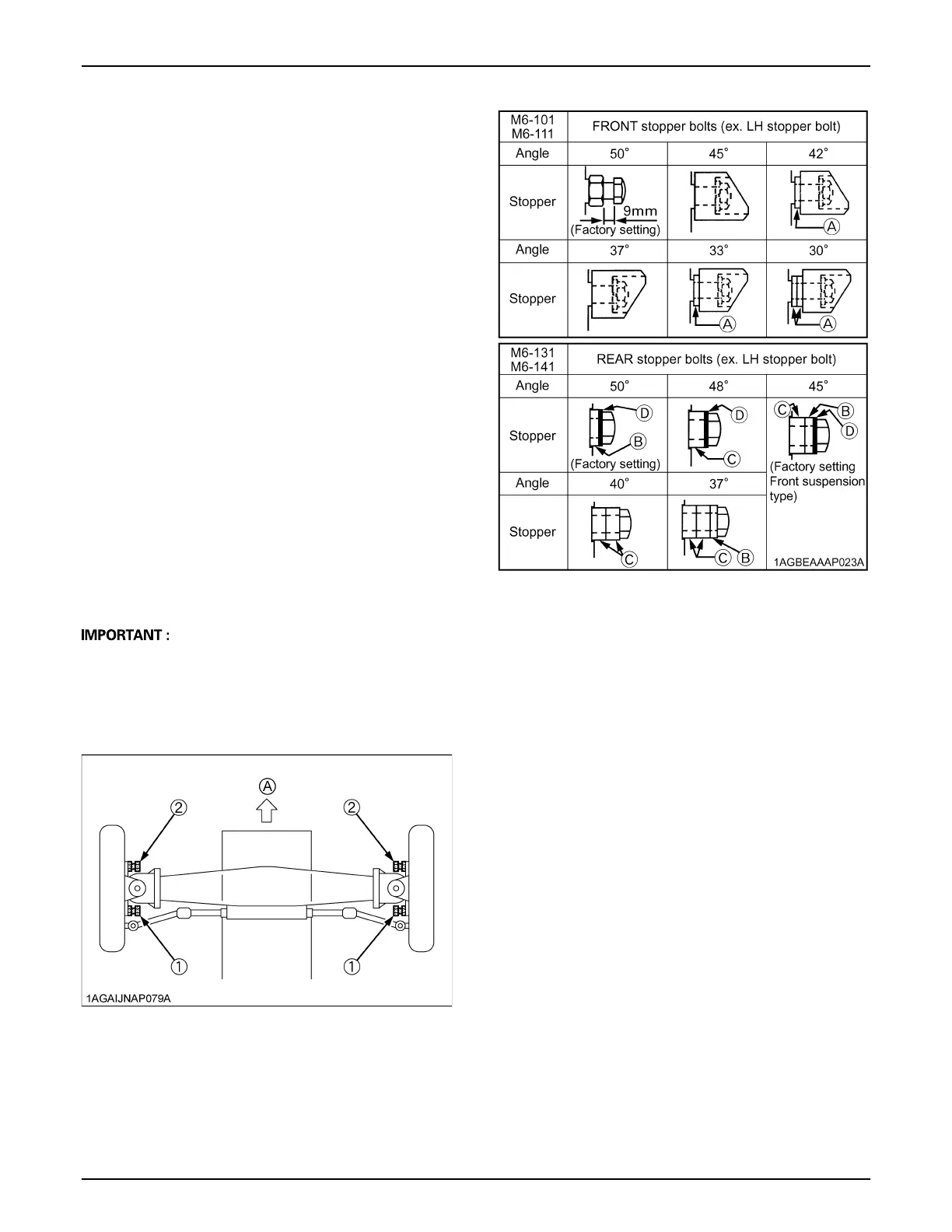

BAdjusting Front Wheel Turning Stopper
Bolt
[M6-101, M6-111]
C Adjusting procedure
1. Adjust the right and left front stoppers according to the
front wheel turning angle.
2. Adjusting the rear stoppers:
(1) Turn the steering wheel fully clockwise until the
left front stopper comes into the case. Adjust the
right rear stopper so that there is a clearance of
about 1 mm (0.04 in.) between the right rear
stopper and the case.
(2) Turn the steering wheel counterclockwise to
readjust the left rear stopper.
[M6-131, M6-141]
C Adjusting procedure
1. Adjust the right and left rear stoppers according to the
front wheel turning angle.
2. Adjusting the front stoppers:
(1) Turn the steering wheel fully clockwise until the
right rear stopper comes into the case. Adjust the
front stopper so that there is a clearance of about
1 mm (0.04 in.) between the left front stopper and
the case.
(2) Turn the steering wheel counterclockwise to
readjust the right front stopper.
A Always check if tires contact with tractor or loader
frame assemblies.
A Adjust turning angle with provided stoppers if
necessary.
A Bi-speed will not activate if turning angle is less than
34 degree.
(1) Rear stopper bolts
(2) Front stopper bolts
(A) "FRONT"
(A) 5 mm (0.2 in.) collar
(B) 7 mm (0.3 in.) collar
(C) 12.5 mm (0.5 in.) collar
(D) 1 mm (0.04 in.) shim
