Kyocera FS-C8500DN Service Manual

2KA
1-4-54

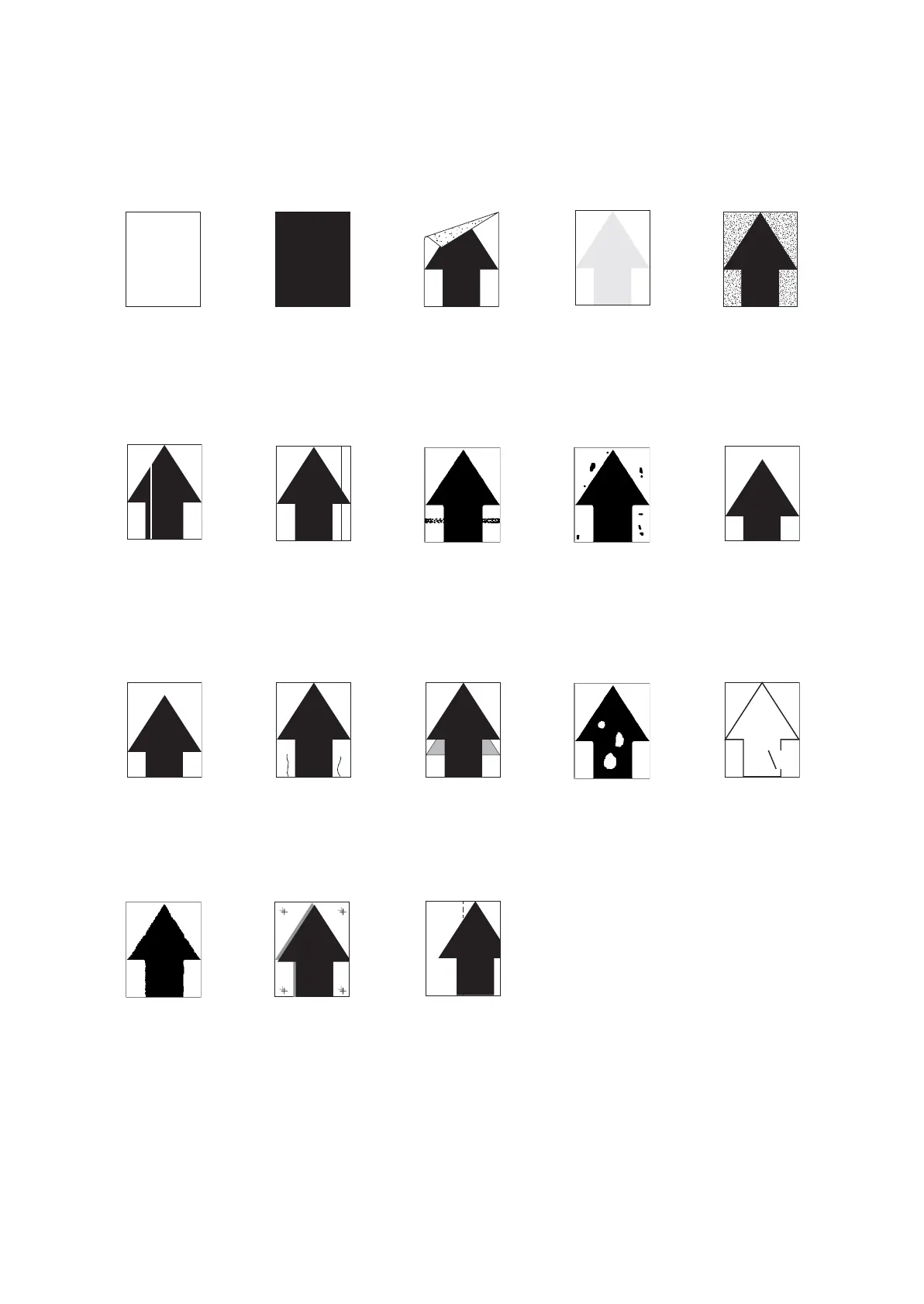

1-4-3 Image formation problems
(1)No image appears
(entirely white).
(2)No image appears
(entirely black).
(3)Dirty on the back
side.
(4)Image is too light. (5)The background is
colored.
See page 1-4-55. See page 1-4-55. See page 1-4-56. See page 1-4-56. See page 1-4-57.
(6)A white line
appears longitudi-
nally.
(7)A line appears lon-
gitudinally.
(8)A line appears lat-
erally.
(9)Dots appear on the
image.
(10)The leading edge
of the image is
consistently mis-
aligned.
See page 1-4-57. See page 1-4-57. See page 1-4-58. See page 1-4-58. See page 1-4-58.
(11)The leading edge
of the image is
sporadically mis-
aligned.
(12)Paper creases. (13)Offset occurs. (14)Image is partly
missing.
(15)Fusing is poor.
See page 1-4-58. See page 1-4-59. See page 1-4-59. See page 1-4-59. See page 1-4-60.
(16)Image is out of
focus.
(17)Colors are printed
offset to each
other.
(18)Image center
does not align with
the original center.
See page 1-4-60. See page 1-4-60. See page 1-4-60.
