Kyocera FS-C8500DN Service Manual

2KA
2-1-15
2-1-6 Fuser section
(1) Fuser section
The fuser section consists of the parts shown in figure below. When paper reaches the fuser section after the secondary
transfer process, it passes between the press roller and melt belt. Pressure is applied by the fuser unit pressure springs so
that the toner on the paper is melted, fused and fixed onto the paper. The melt belt is heated by fuser heaters 1 (FH1) or 2
(FH2) inside the heat roller. The press roller is heated by fuser heater 3 (FH3).

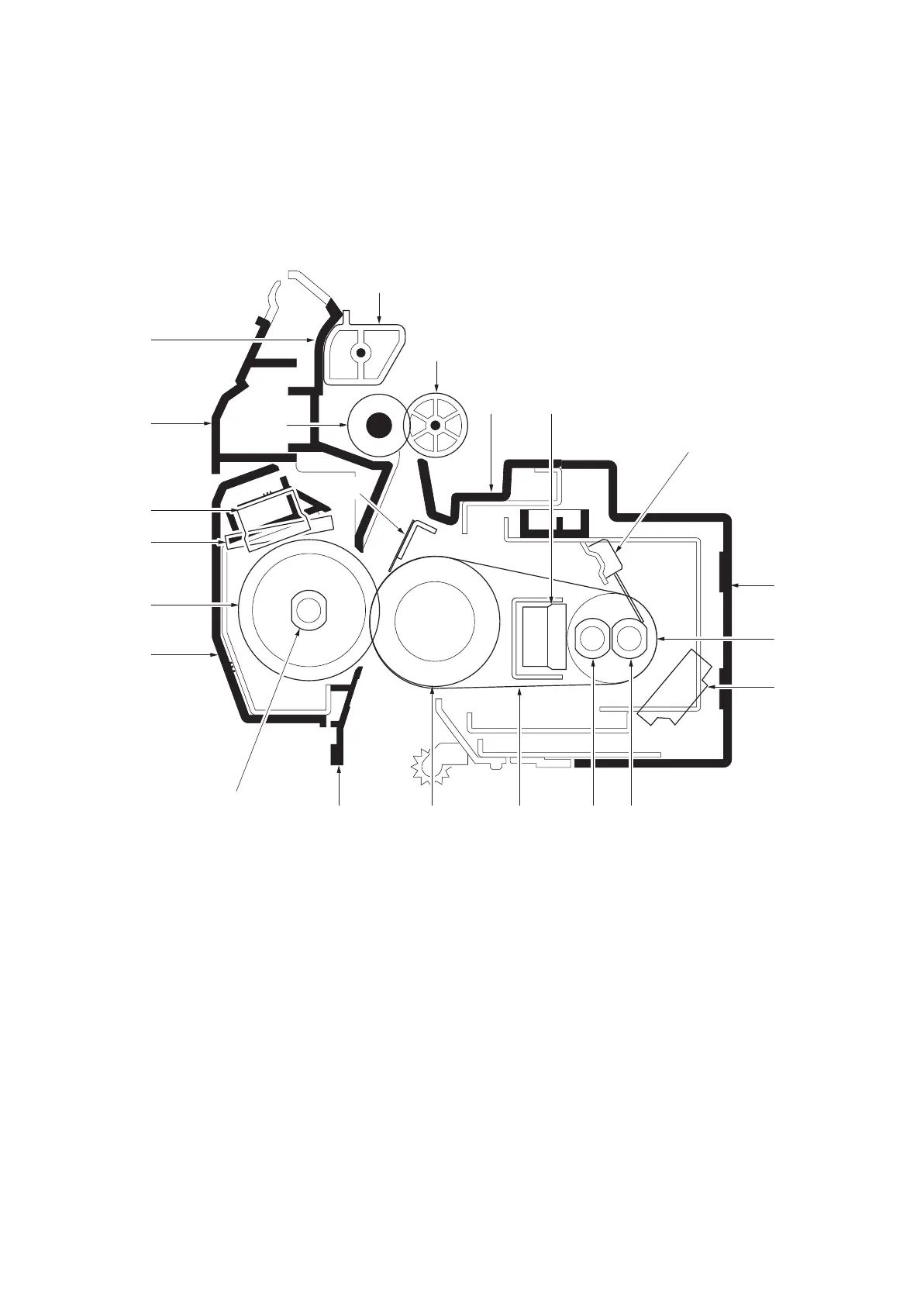

Figure 2-1-17 Fuser section
21
12
22
19
10
4
14
7
215 6 5
9
1
13
3
8
11
17
20
16
18
(1) Heat roller
(2) Fuser roller
(3) Melt belt
(4) Press roller
(5) Fuser heater 1 (FH1)
(6) Fuser heater 2 (FH2)
(7) Fuser heater 3 (FH3)
(8) Fuser thermistor 1 (FTH1)
(9) Fuser thermistor 2 (FTH2)
(10) Fuser thermistor 3 (FTH3)
(11) Fuser thermostat 1 (FTS1)
(12) Fuser thermostat 2 (FTS2)
(13) Right fuser cover
(14) Left fuser cover
(15) Fuser entry guide
(16) Fuser charge erasing brush
(17) Fuser eject pulley
(18) Right eject guide
(19) Fuser eject roller
(20) Eject push guide
(21) Left eject guide
(22) Left guide cover

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
