Kyocera FS-C8500DN Service Manual

2KA
2-1-14
(2) Secondary transfer/separation section
The secondary transfer/separation section consists mainly of the transfer (TC) roller and separation discharge plate.
A high voltage generated by the transfer high voltage PWB 2 (THVPWB2) is applied to the transfer (TC) roller for second-
ary transfer charging. Paper after secondary transfer is separated from the transfer (TC) roller by applying separation bias
that is output from the transfer high voltage PWB 2 (THVPWB2) to the separation discharge plate.

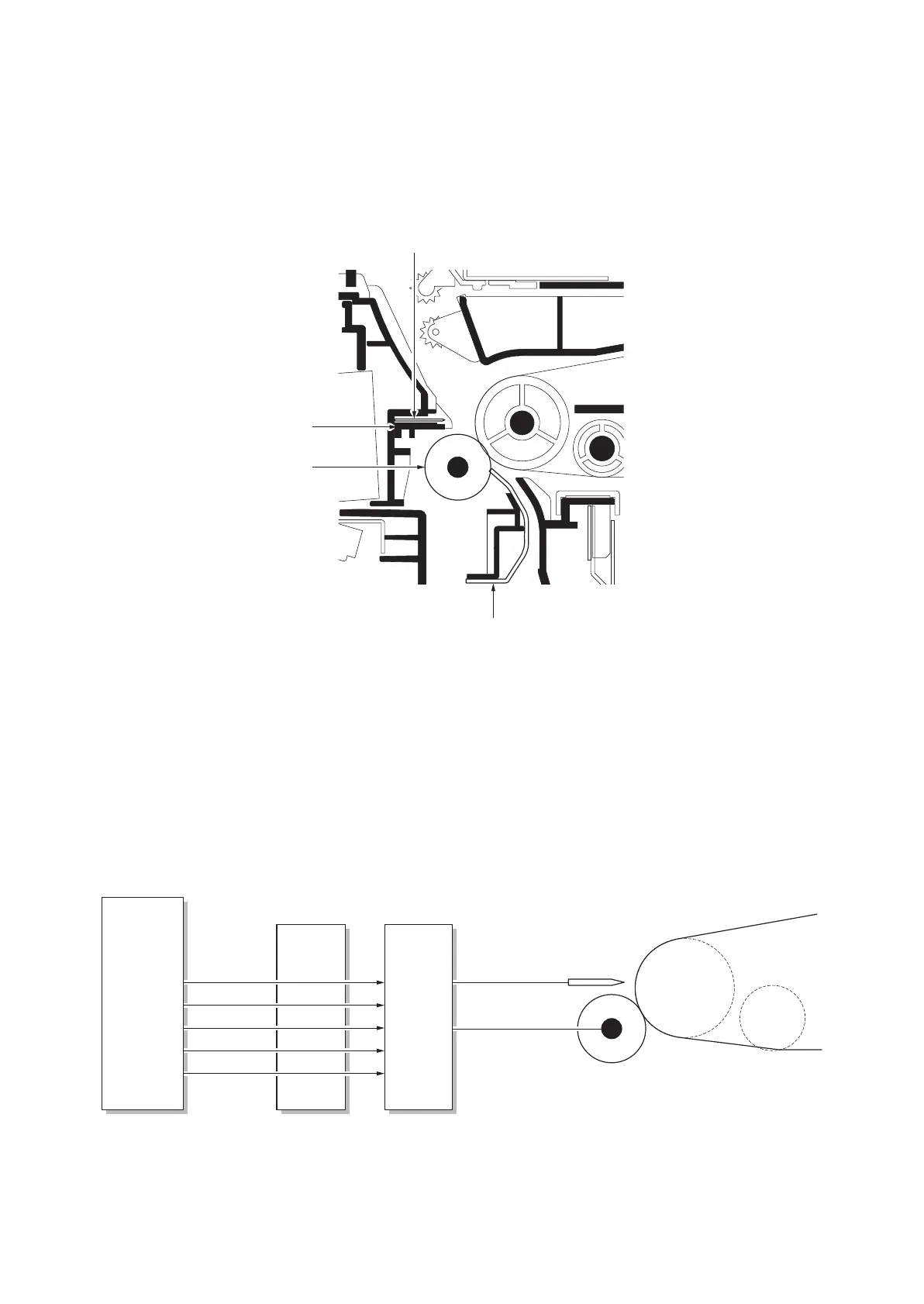

Figure 2-1-15 Secondary transfer/separation section
Figure 2-1-16 Secondary transfer /separation section block diagram
1
3
2
4
(1) Secondary transfer roller
(2) Left transfer guide
(3) Discharge holder
(4) Separation discharge plate
YC18-B9
SEP CONT
YC18-B10
SEP REM
YC18-B11
T2 INV CONT
YC18-B12
T2 CONT
YC18-B13
T2 REM
THVPWB2FRPWB-M
EPWB
Transfer belt
Secondary
transfer bias
Separation
bias
Separation
discharge plate
Secondary
transfer roller

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
