Kyocera FS-C8500DN Service Manual

2KA
2-2-8
(4) Others

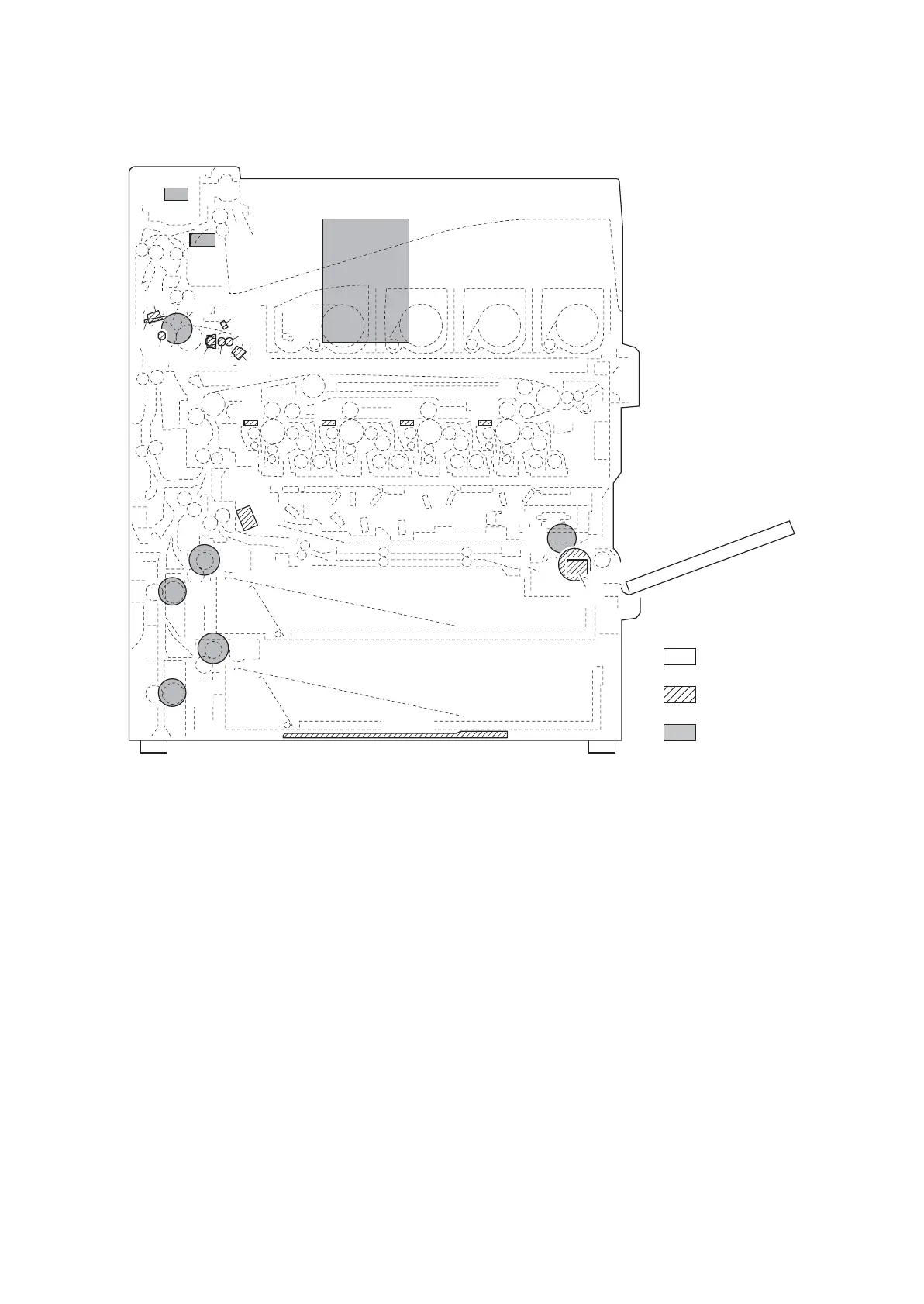

Figure 2-2-4 Others
1. Paper feed clutch 1 (PFCL1) ....................... Primary paper feed from cassette 1.
2. Paper feed clutch 2 (PFCL2) ....................... Primary paper feed from cassette 2.
3. Feed clutch 1 (FCL1) ................................... Controls the drive of upper feed roller.
4. Feed clutch 2 (FCL2) ................................... Controls the drive of lower feed roller.
5. MP paper feed clutch (MPPFCL) ................. Controls primary paper feed from the MP tray.
6. MP paper conveying clutch (MPPCCL) ....... Controls the drive of MP feed roller.
7. Fuser clutch (FUCL)..................................... Controls the fuser section.
8. Feedshift solenoid 1 (FSSOL1).................... Switching the paper path.
9. Feedshift solenoid 2 (FSSOL2).................... Switching the paper path.
10. MP solenoid (MPSOL) ................................. Operates up/down of the MP forwarding pulley.
11. LSU cleaning solenoid (LSUCSOL) ............. Operates the LSU blade for dust shield glass cleaning.
12. Cleaning lamp M (CL-M).............................. Removes residual charge from the drum surface (Magenta).
13. Cleaning lamp C (CL-C)............................... Removes residual charge from the drum surface (Cyan).
14. Cleaning lamp Y (CL-Y) ............................... Removes residual charge from the drum surface (Yellow).
15. Cleaning lamp K (CL-K) ............................... Removes residual charge from the drum surface (Black).
16. Fuser heater 1 (FH1) ................................... Heats the melt belt (heat roller).
17. Fuser heater 2 (FH2) ................................... Heats the melt belt (heat roller).
18. Fuser heater 3 (FH3) ................................... Heats the press roller.
19. Fuser thermistor 1 (FTH1) ........................... Detects the melt belt (heat roller) temperature.
20. Fuser thermistor 2 (FTH2) ........................... Detects the melt belt (heat roller) temperature.
24,25
2
3
4
1
11
5
10
6
7
9
8
18
16
17
20
15 14 13 12
22
23
19
21
26
Machine front
Machine inside
Machine rear
