Kyocera FS-C8500DN Service Manual

2KA
1-4-60

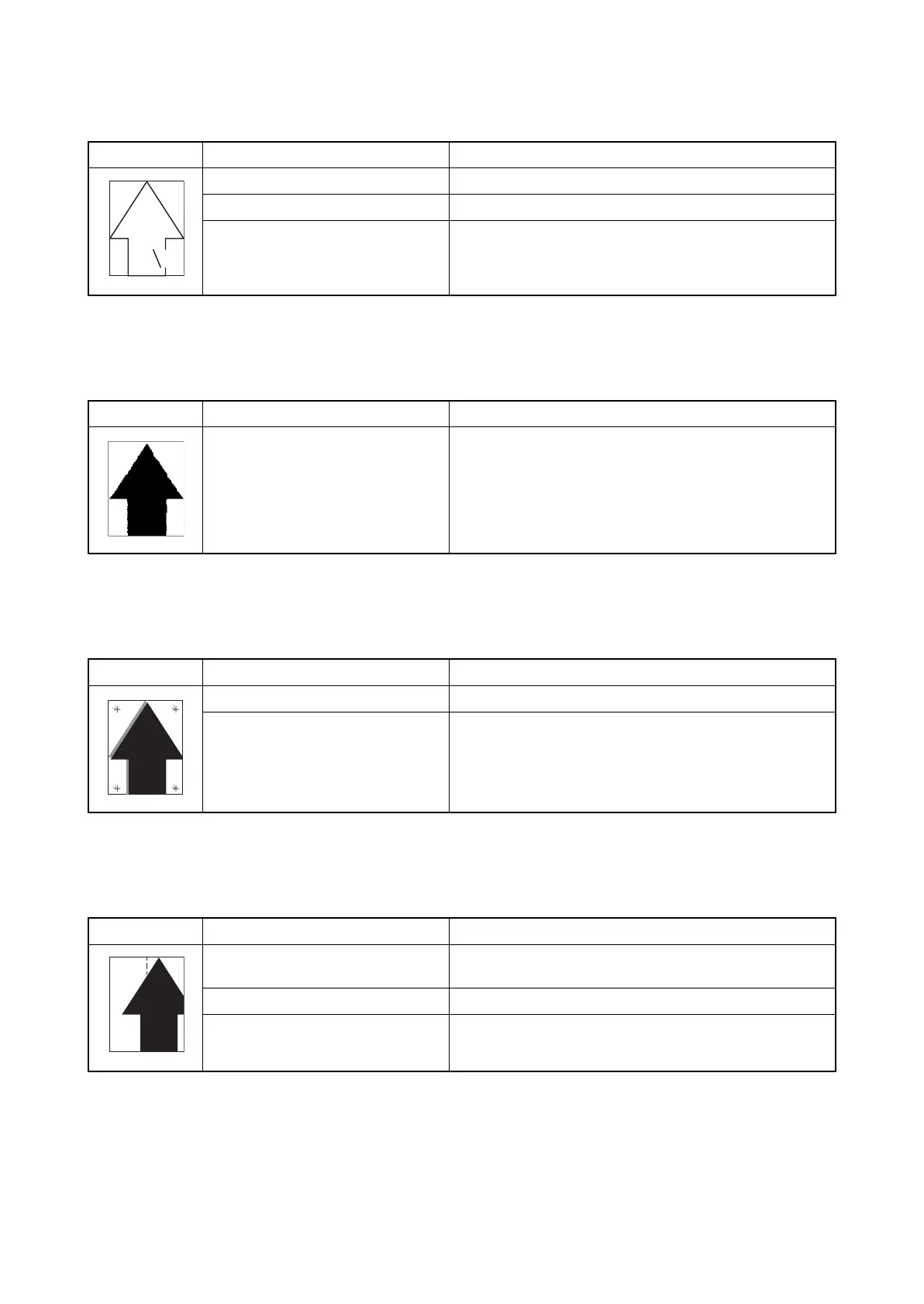

(15) Fusing is poor.
(16) Image is out of focus.
(17) Colors are printed offset to each other.
(18) Image center does not align with the original center.
Copy example Causes Check procedures/corrective measures
Wrong types of paper. Check if the paper meets specifications. Replace paper.
Flawed fuser belt (inner fuser unit). Replace the fuser unit (see page 1-5-31).
Flawed fuser heater (inner fuser unit). Replace the fuser unit (see page 1-5-31).
Copy example Causes Check procedures/corrective measures
Drum condensation. Perform the drum refresh operation (see page 1-3-117).
Copy example Causes Check procedures/corrective measures
Defective color calibration. Perform the color calibration (see page 1-3-113).
Slip the mirror position of laser scan-
ner unit.
Perform the color registration (see page 1-3-113).
When the problem is not cleared, perform the manual color
registration adjustment (see page 1-5-19).
Copy example Causes Check procedures/corrective measures
Misadjusted image center line. Run maintenance item U034 to readjust the center line of
image printing (see page 1-3-26).
Original is not placed correctly. Place the original correctly.
The paper is not loaded correctly. Load the paper correctly.

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
