Kyocera FS-C8500DN Service Manual

2KA
1-4-58

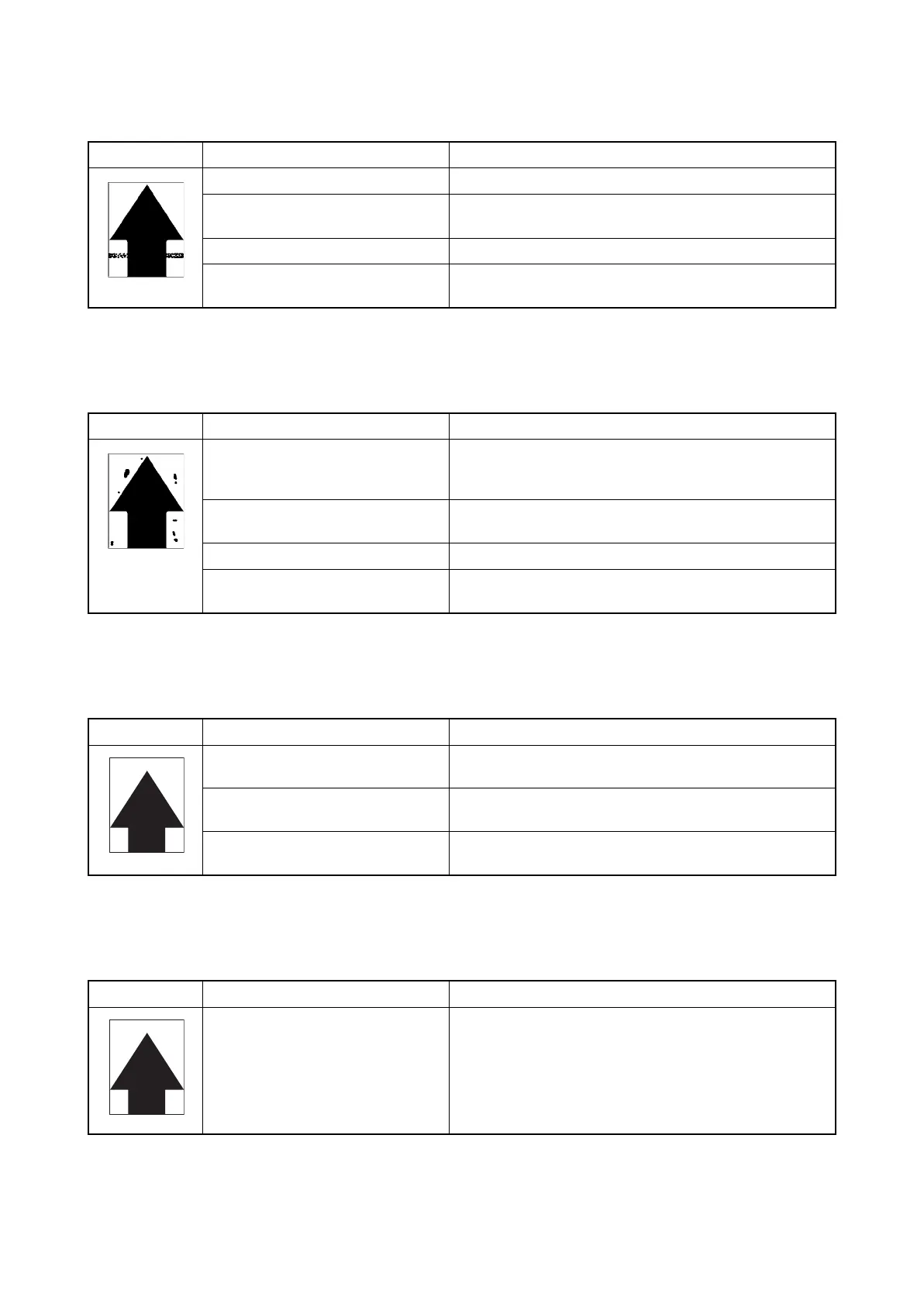

(8) A line appears laterally.
(9) Dots appear on the image.
(10) The leading edge of the image is consistently misaligned.
(11) The leading edge of the image is sporadically misaligned.
Copy example Causes Check procedures/corrective measures
Flawed drum. Replace the drum unit (see page 1-5-26).
Dirty developing section. Clean any part contaminated with toner or carrier in the
developing section.
Leaking separation electrode. Clean the separation electrode.
Poor contact of grounding terminal of
drum unit.
Check the mounting state of the image formation holder. If
any problem is found, repair it (see page 1-5-21).
Copy example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum refresh operation (see page 1-3-117).
If the drum is flawed, replace the drum unit (see page 1-5-
26).
Deformed or worn cleaning blade of
the drum unit.
Replace the drum unit (see page 1-5-26).
Flawed developing roller. Replace the developing unit (see page 1-5-25).
Dirty fuser belt or press roller (inner
fuser unit).
Replace the fuser unit (see page 1-5-31).
Copy example Causes Check procedures/corrective measures
Registration clutch operating incor-
rectly.
Check the installation of the registration clutch. If it operates
incorrectly, replace it.
Misadjusted the deflection in the
paper.
Run maintenance mode U051 to readjust the deflection in
the paper (see page 1-3-28).
Misadjusted leading edge registration. Run maintenance mode U034 to readjust the leading edge
registration (see page 1-3-24).
Copy example Causes Check procedures/corrective measures
Paper feed clutch 1/2, paper convey-
ing clutch, MP paper feed clutch, MP
paper conveying clutch or registration
clutch installed or operating incor-
rectly.
Check the installation position and operation of paper feed
clutch 1/2, paper conveying clutch, MP paper feed clutch, MP
paper conveying clutch and registration clutch. If any of them
operates incorrectly, replace it.

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
