Kyocera FS-C8500DN Service Manual

2KA
2-2-4
(2) Switches and sensors

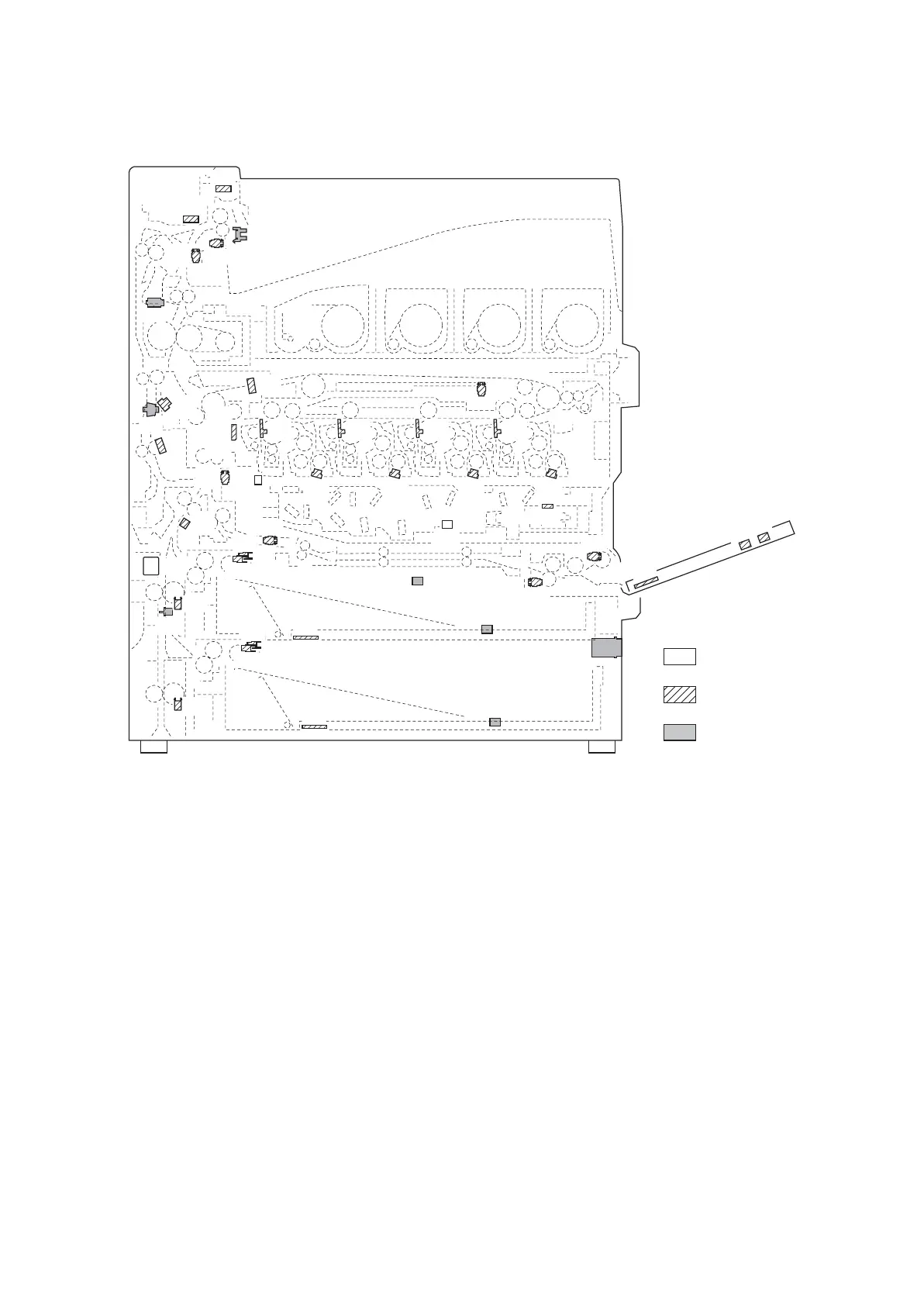

Figure 2-2-2 Switches and sensors
1. Main power switch (MSW) ........................... Turns the AC power on and off.
2. Interlock switch (ILSW) ................................ Turns the AC power for the fuser heaters on and off.
3. Front cover switch (FCSW).......................... Breaks the safety circuit when the front cover is opened.
4. Left cover 1 switch (LC1SW) ....................... Breaks the safety circuit when the left cover 1 is opened.
5. Left cover 3 switch (LC3SW) ....................... Breaks the safety circuit when the left cover 3 is opened.
6. Lift switch 1 (LSW1) ..................................... Detects cassette 1 cassette reaching the upper limit.
7. Lift switch 2 (LSW2) ..................................... Detects cassette 2 cassette reaching the upper limit.
8. Paper switch 1 (PSW1)................................ Detects the presence of paper in cassette 1.
9. Paper switch 2 (PSW2)................................ Detects the presence of paper in cassette 2.
10. Paper size length switch 1 (PLSW1)............ Detects the length of paper in cassette 1.
11. Paper size length switch 2 (PLSW2)............ Detects the length of paper in cassette 2.
12. Paper size width switch 1 (PWSW1)............ Detects the width of paper in cassette 1.
13. Paper size width switch 2 (PWSW2)............ Detects the width of paper in cassette 2.
14. MP paper switch (MPPSW) ......................... Detects the presence of paper on the MP tray.
15. MP paper size length switch (MPPLSW) ..... Detects the length of paper on the MP tray.
16. MP paper size width switch (MPPWSW) ..... Detects the width of paper on the MP tray.
17. MP tray switch (MPTSW)............................. Detects the MP tray extension is extend.
18. MP paper feed switch (MPPFSW) ............... Detects a paper misfeed in the MP tray paper feed section.
19. MP paper conveying switch (MPPCSW)...... Detects a paper misfeed in the MP tray paper conveying section.
20. Feed switch 1 (FSW1) ................................. Detects a paper misfeed in the paper cassette paper feed section.
42
38
39
37
32 31 30 29
35
36
27
15
17
16
18
44
19
10
43
3
1
12
6
8
5
7
9
13
11
14
26 25 24
41
28
20
23
33
34
45
46
21
22
40
47
4
2
Machine front
Machine inside
Machine rear
