Kyocera FS-C8500DN Service Manual

2KA
2-1-3
(2) MP tray paper feed section
Pressing the start key activates the MP solenoid (MPSOL) to release the paper stopper, which in turn causes the MP for-
warding pulley mounted on the MP support to descend. In turn, the MP forwarding pulley comes in contact with the paper
placed on the MP tray is fed forward as the MP forward pulley rotates and forwarded to the MP paper feed pulley and the
MP separation pulley. Also during paper feed, the MP separation pulley prevents multiple sheets from being fed at one
time by the torque limiter.

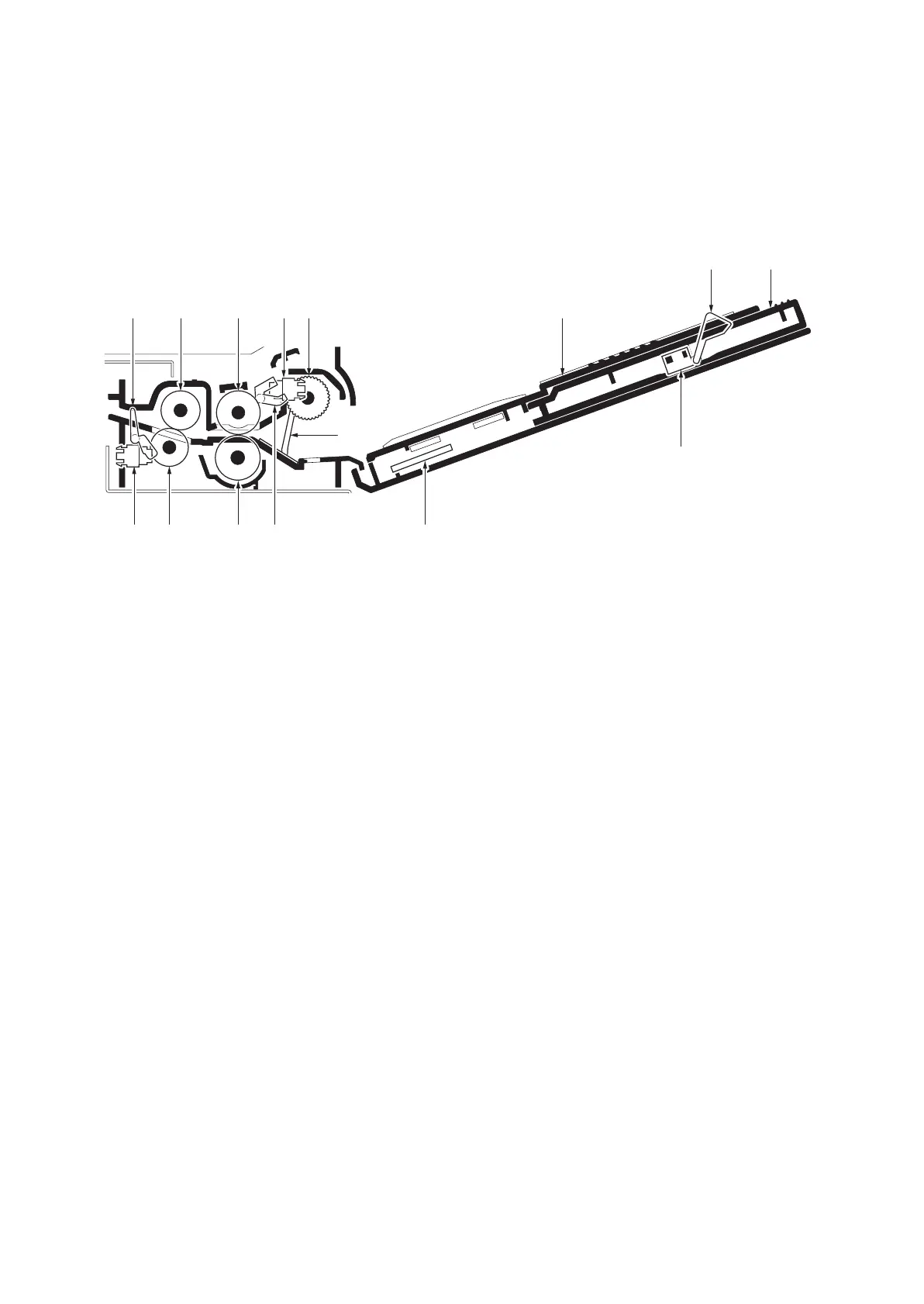

Figure 2-1-3 MP tray paper feed section (1)
15
59
84
143 7
12
2 1 10
1113
6
(1) MP forwarding pulley
(2) MP paper feed pulley
(3) MP separate pulley
(4) MP middle roller
(5) MP middle pulley
(6) MP paper switch (MPPSW)
(7) Actuator (MP paper switch)
(8) MP paper feed switch (MPPFSW)
(9) Actuator (MP paper feed switch)
(10) MP table
(11) MP tray extension
(12) MP paper size length switch
(MPPLSW)
(13) Actuator
(MP paper size length switch)
(14) MP paper size width switch
(MPPWSW)
(15) Paper stopper

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
