Kyocera FS-C8500DN Service Manual

2KA
1-5-25
(2) Detaching and refitting the developing unit
Follow the procedure below to replace the developing unit.
Example of detaching and refitting: developing unit Y
Procedure
1. Remove the image formation holder (see
page 1-5-21).
2. Close the toner replenishment lid.
3. Remove the fuser unit (see page 1-5-31).
4. Remove the transfer belt unit (see page 1-5-
28).
5. Remove the connector.
6. Remove the screw.

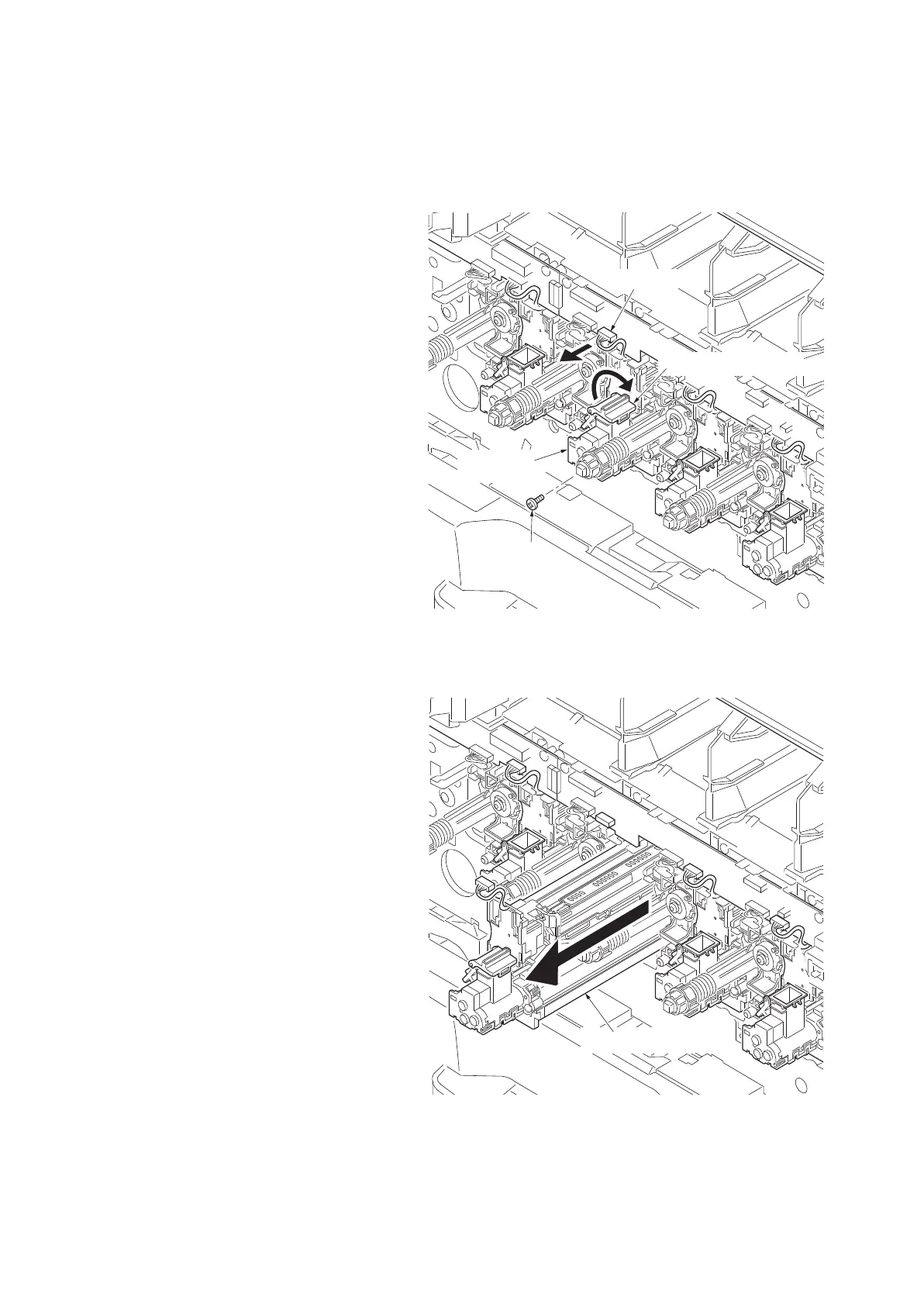

Figure 1-5-43
7. Remove the developing unit Y.
8. Check or replace the developing unit Y and
refit all the removed parts.
Caution:
When refitting the developing unit, secure
the developing unit and then secure the
transfer belt unit.
When securing the developing unit, be sure
to insert the unit all the way into the machine
and fix it using the screw.
9. When the developing unit is replaced with a
new one, carry out the following procedure.
10. Perform maintenance mode U464 (AC cali-
bration) (see page 1-3-84).
11. Perform the following image adjustment.
1)Color Calibration
2)Color Registration
Figure 1-5-44
Developing
unit Y
Connector
Toner replenishment lid
Screw
Developing unit Y

Kyocera FS-C8500DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	5.2 s
Time to first page (color, normal)	6.7 s
Print speed (black, normal quality, A3)	28 ppm
Print speed (color, normal quality, A3)	25 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Print speed (color, normal quality, A4/US Letter)	50 ppm
Internal memory	1024 MB
Processor model	PowerPC 750GL
Maximum internal memory	2048 MB
Sound power level (standby)	27, 26 dB
Sound pressure level (printing)	55 dB
Total input capacity	- sheets
Total output capacity	500 sheets
Maximum input capacity	100 sheets
Multi-Purpose tray input capacity	4100 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 220 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	3
Network ready	No
Power requirements	220/240 V, 50/60 Hz
Wireless option type	Wireless LAN (802.11b/g)
Power consumption (active)	1250 W
Compatible operating systems	Windows, Mac OS X 10.2 +, UNIX, LINUX
Maximum duty cycle	150000 pages per month
Recommended duty cycle	25000 pages per month
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	15 W
Display	LCD
Certification	GS, TÜV, CE

Weight and Dimensions

Dimensions (WxDxH)	605 x 680 x 691 mm
