EDS1100/2100 Device Server User Guide 103
13: Maintenance and Diagnostics Settings
This chapter describes maintenance and diagnostic methods and contains the following sections:
Filesystem Settings
Protocol Stack Settings
IP Address Filter
Query Port
Diagnostics
System Settings
Filesystem Settings
The EDS1100/2100 device server uses a flash filesystem to store files. Use the Filesystem option
to view current file statistics or modify files. There are two subsections: Statistics and Browse.
The Statistics section of the Filesystem web page shows current statistics and usage information
of the flash filesystem. In the Browser section of the Filesystem web page, you can create files and
folders, upload files, copy and move files, and use TFTP.
Filesystem Statistics
This page shows various statistics and current usage information of the flash filesystem.
To view filesystem statistics:
1. Select Filesystem on the menu
bar. The Filesystem page opens
and shows the current filesystem
statistics and usage.
To compact or format the filesystem:
1. Back up all files as necessary.
2. Select Filesystem on the menubar,
if you are not already in the
Filesystem page.
3. Click Compact in the Actions row.
Note: The compact should not be
needed under normal circumstances as
the system manages this automatically.
4. Back up all files before you perform
the next (Format) step, because all
user files get erased in that step.
5. Click Format in the Actions row.
The configuration is retained and all
files on the filesystem will be destroyed.
6. Click OK in the warning window which appears.

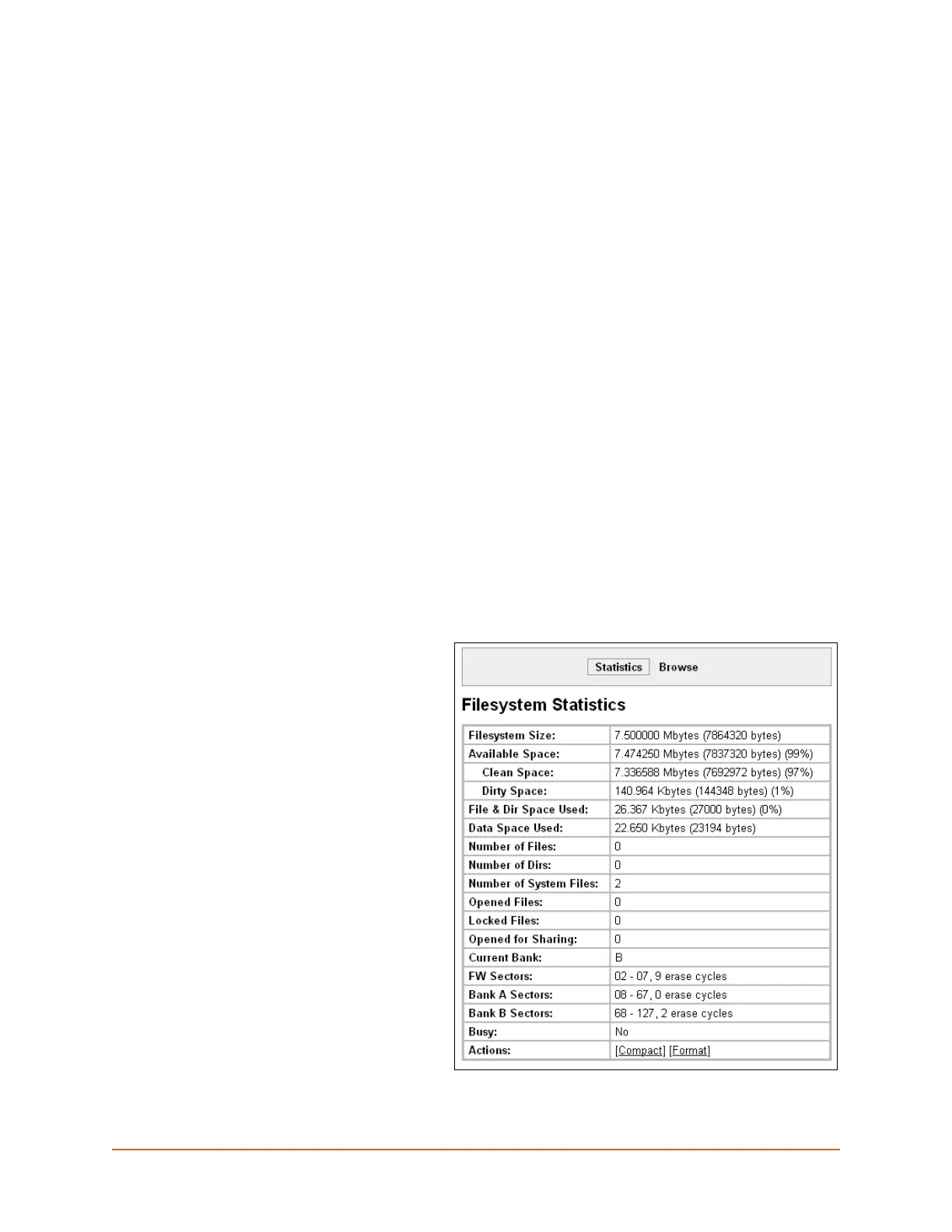

Figure 13-1 Filesystem Statistics
