8: Line and Tunnel Settings
This chapter describes how to view and
configure lines and tunnels. It contains the
following sections:
Line Settings
Tunnel Settings
Line Settings
View statistics and configure serial interfaces by using the Line web page. Serial interfaces are
referred to as lines in this user guide, and a different number of lines, from 1 to 32, may be
available for selection depending on your product.
The following sub-menus may be used for a selected line number:
Line Statistics—Displays statistics for the selected line number. For example, the bytes
received and transmitted, breaks, flow control, parity errors, etc.
Line Configuration—Enables the change of the name, interface, protocol, baud rates, and
parity, etc.
Line Command Mode—Enables the types of modes, wait time, serial strings, signon
message, etc.
The following sections describe the steps to view and configure specific line number settings.
These instructions also apply to additional line instances of the device.
Line Statistics
This read-only web page shows
the status and statistics for the
serial line selected at the top of
this page.
1. Select Line on the menu bar.
The Line web page appears.
2. Select a line number at the
top of the page.
3. Select Statistics. The Line
Statistics page for the
selected line appears.
4. Repeat above steps as
desired, according to
additional line(s) available on
your product.

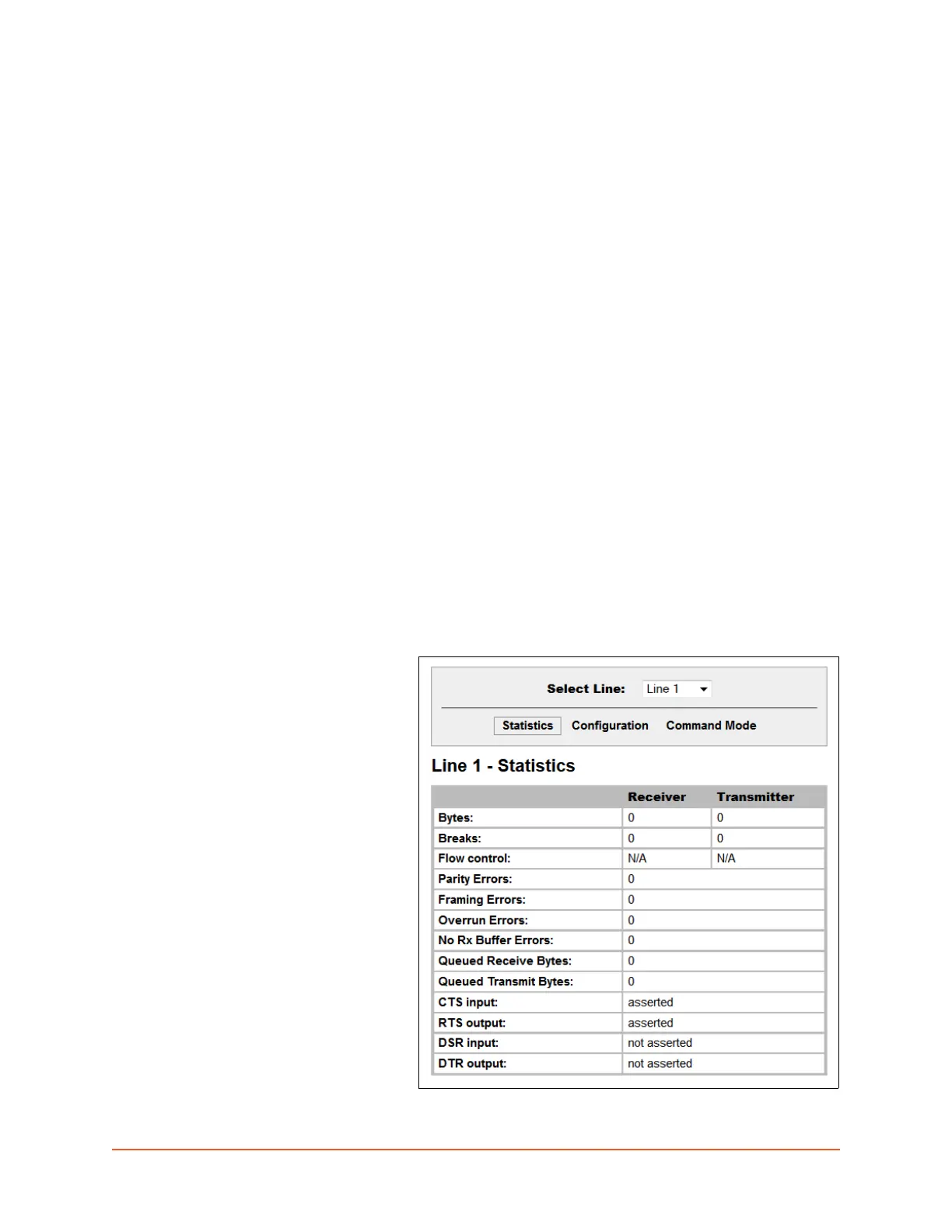

Figure 8-1 Line 1 Statistics
Note: The number of lines and tunnels available for
viewing and configuration differ between Lantronix
products. For example, the XPort® Pro embedded
networking module and the EDS1100 device server
support only one line while other device networking
products (such as the EDS2100, EDS4100, and
MatchPort® b/g Pro embedded device servers, XPort®
AR embedded networking module, EDS8/16PS and
EDS8/16/32PR) provide additional lines and tunnels.
