13: Maintenance and Diagnostics Settings
EDS1100/2100 Device Server User Guide 118

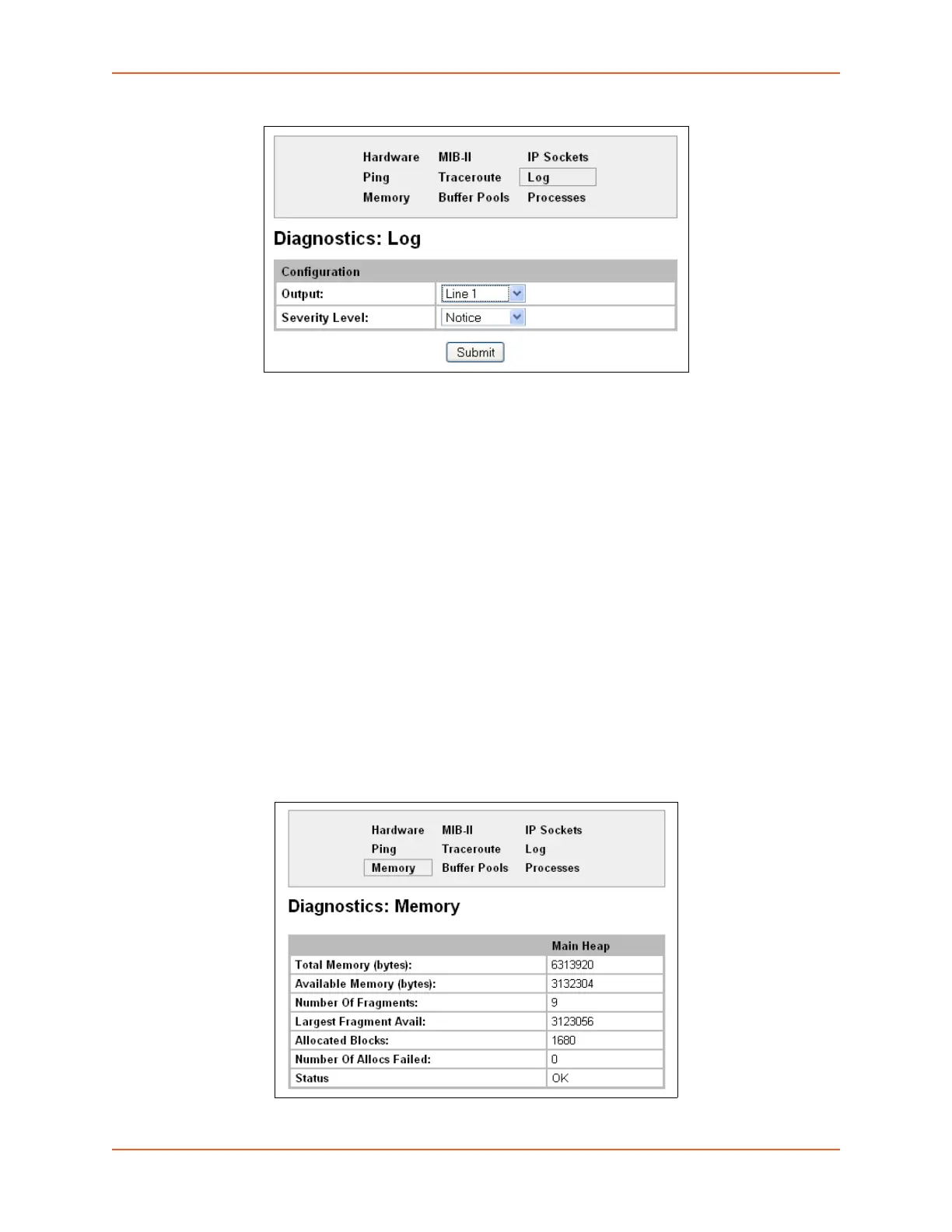

Figure 13-27 Diagnostics: Log (Line 1)
3. Enter the Max Length in kilobytes (if filesystem output type is selected).
4. Select the Severity Level (if a line or filesystem output type is selected):
Debug
Information
Notice
Warning
Error
Memory
This read-only web page shows the total memory and available memory (in bytes), along with the
number of fragments, allocated blocks, and memory status.
To display memory statistics:
1. Select Diagnostics on the menu bar and then Memory at the top of the page. The
Diagnostics: Memory page appears.
Figure 13-28 Diagnostics: Memory
