8: Line and Tunnel Settings

EDS1100/2100 Device Server User Guide 58

To configure Connect Mode for a specific tunnel:

1. Select Tunnel on the menu bar, if you are not already in the Tunnel web page.

2. Select a tunnel number at the top of the page.

3. Select Connect Mode. The Connect Mode page for the specific tunnel appears.

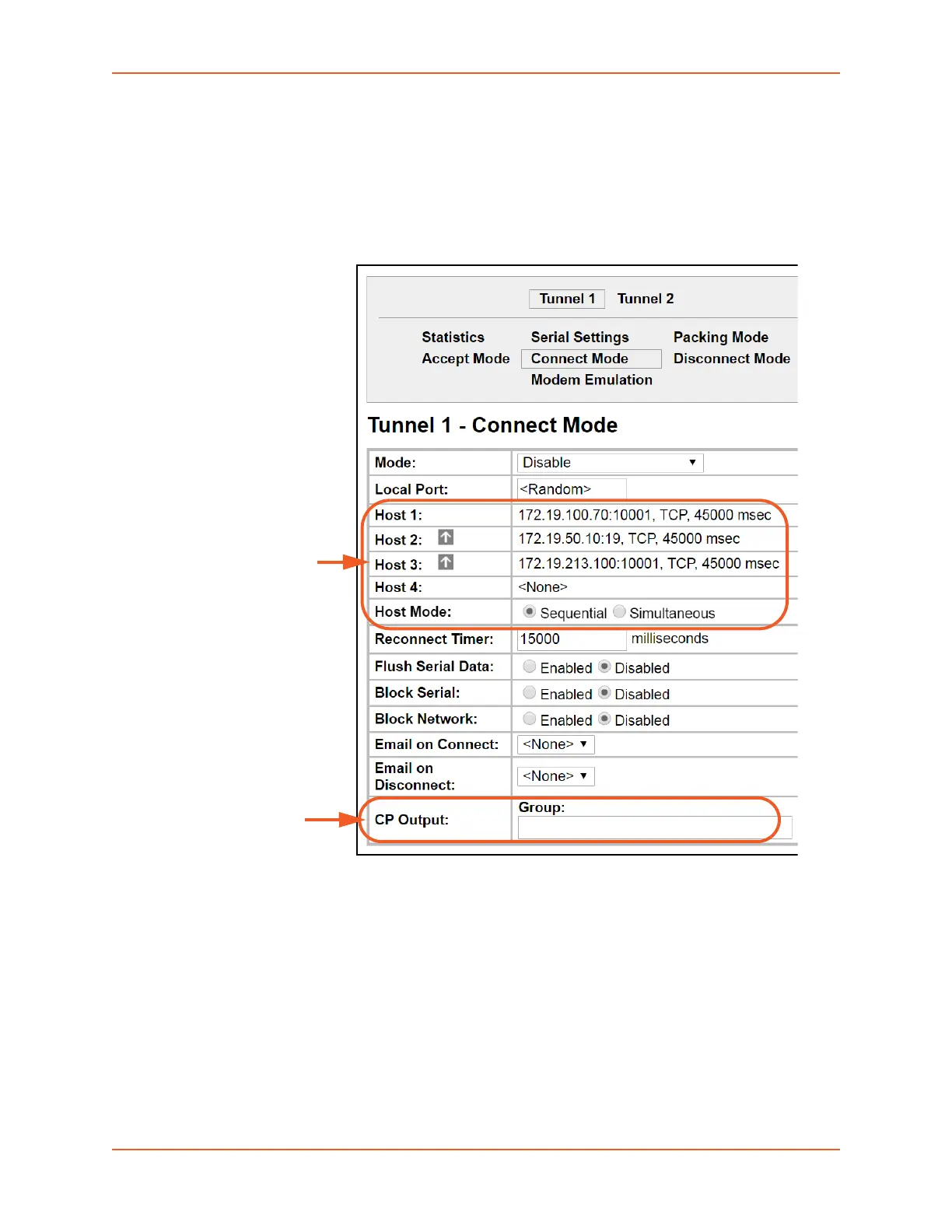

Figure 8-15 Tunnel 1 - Connect Mode

4. Enter or modify the following settings:

Note: The Host Mode

options is supported in all

products except the

XPort AR.

Note: The CP Output

option is only supported in

MatchPort b/g Pro, XPort Pro

and XPort AR device servers.
