10: Service Settings

EDS1100/2100 Device Server User Guide 79

HTTP Configuration

On this page you may change HTTP configuration settings.

To configure HTTP:

1. Select HTTP on the menu bar and then Configuration at the top of the page. The HTTP

Configuration page opens.

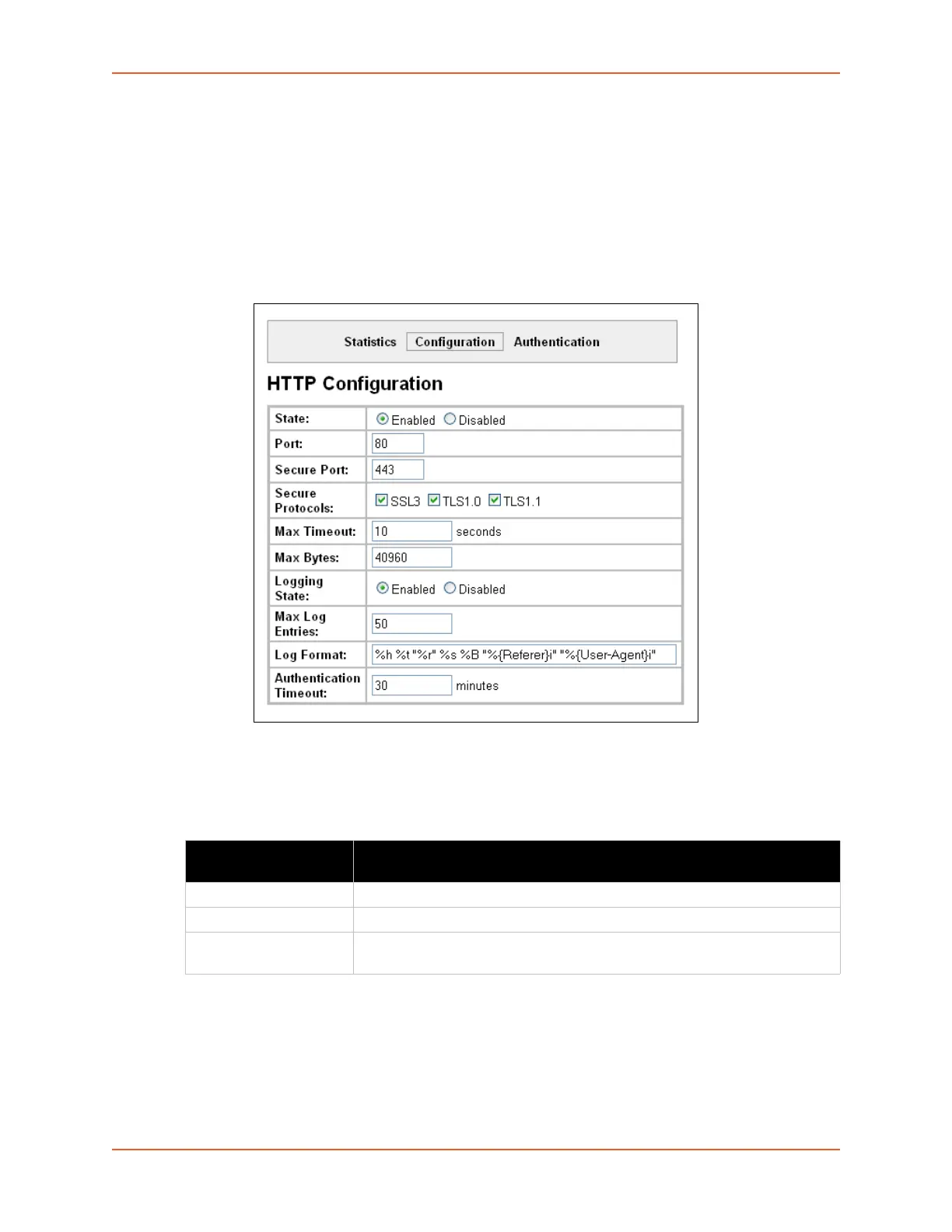

Figure 10-13 HTTP Configuration

2. Enter or modify the following settings:

Table 10-14 HTTP Configuration

HTTP Configuration

Settings

Description

State Select Enabled to enable the HTTP server.

Port Enter the port for the HTTP server to use. The default is 80.

Secure Port Enter the port for the HTTPS server to use. The default is 443. The HTTP

server only listens on the HTTPS Port when an SSL certificate is configured.
