13: Maintenance and Diagnostics Settings

EDS1100/2100 Device Server User Guide 117

Log

Here you can enable a diagnostics log of configuration items:

To use diagnostics logging:

1. Select Diagnostics on the menu bar and then Log at the top of the page. The Diagnostics:

Log page opens.

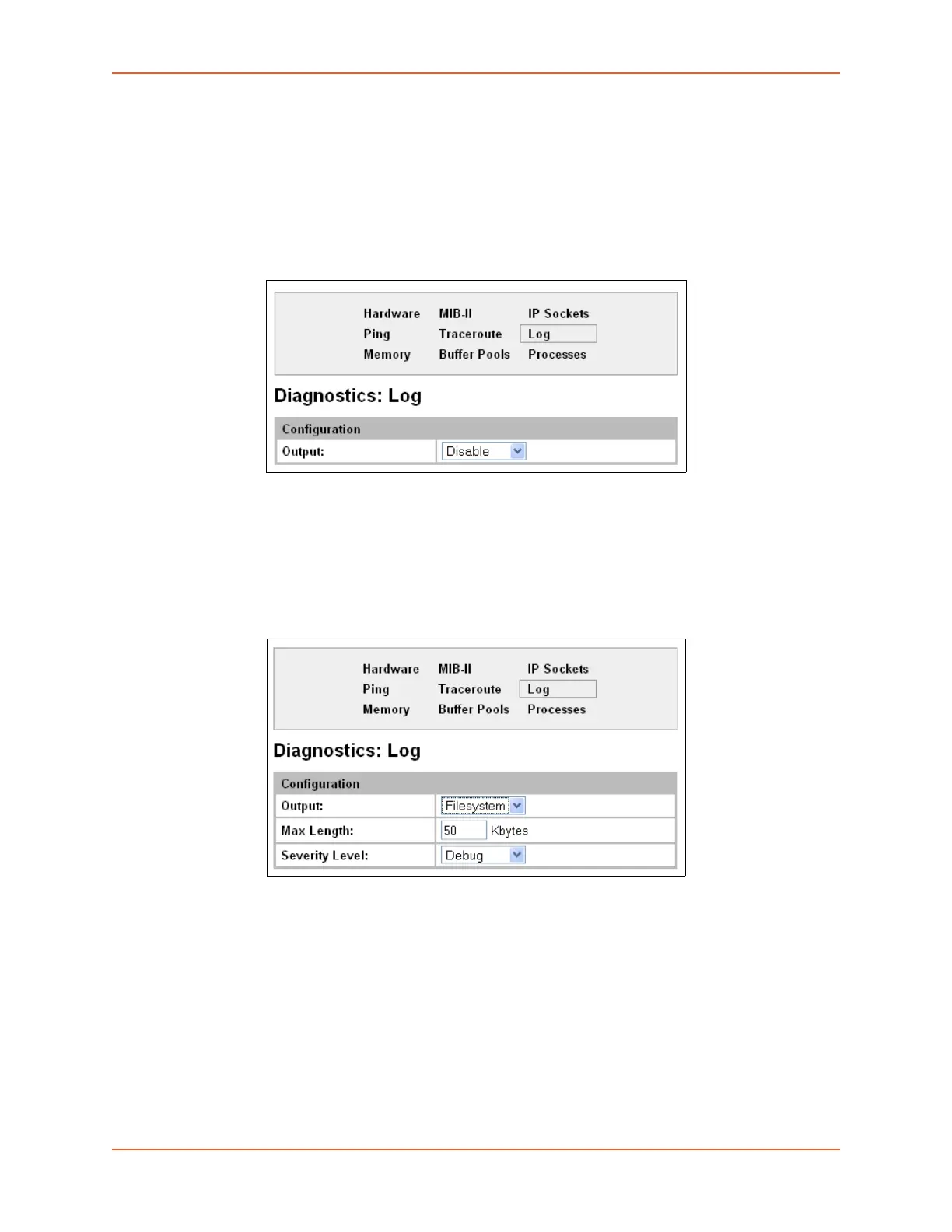

Figure 13-25 Diagnostics: Log

2. Select the Output type:

 Disable (default)

 Filesystem

 Line <number>

Figure 13-26 Diagnostics: Log (Filesystem)
