Hardware Components
The EDS2100 has two male DB9 serial ports that support RS-232/422/485. Figure 4-1 shows the
front of the device. The default serial port settings are 9600 baud, 8 bits, no parity, 1 stop bit, no
flow control.

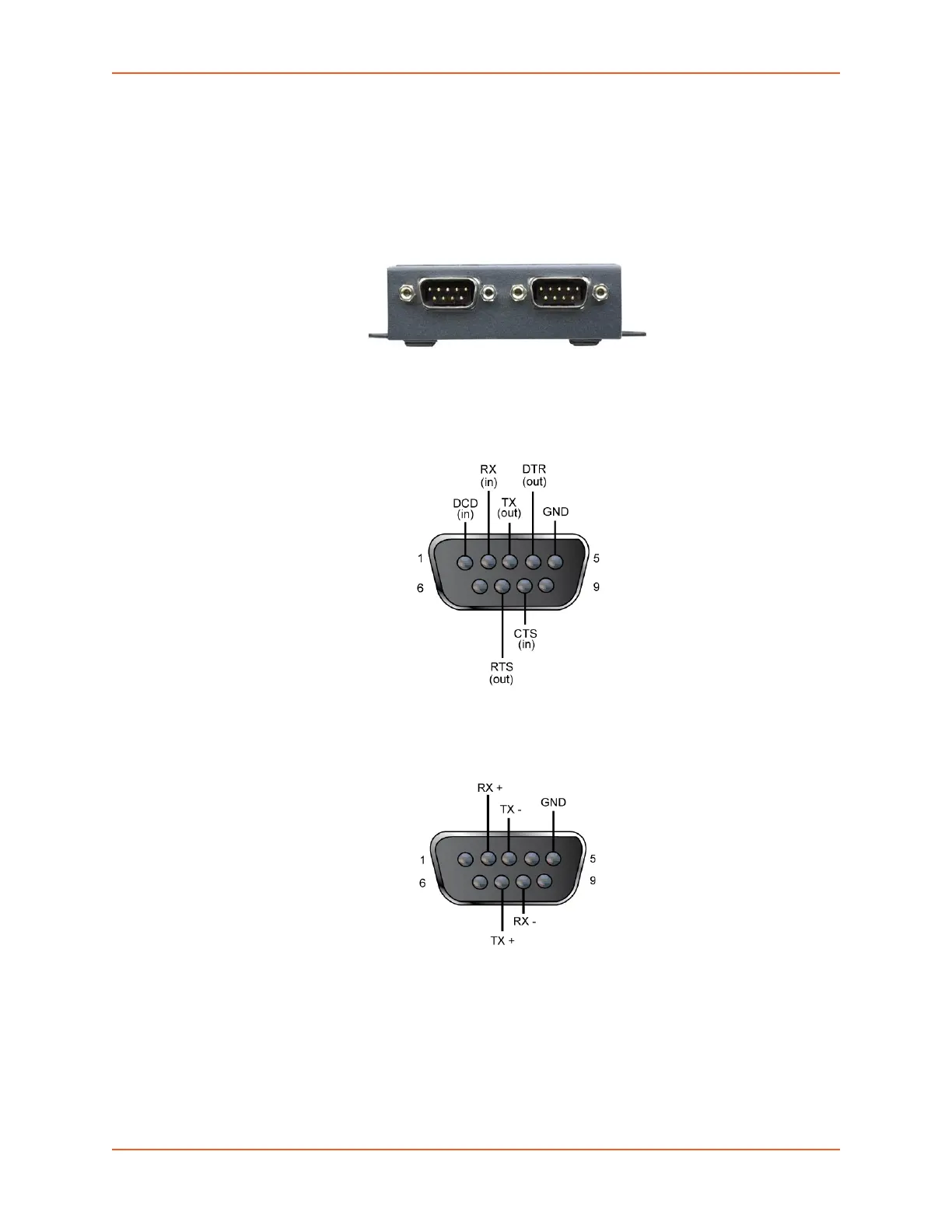

Figure 4-1 EDS2100 Male DB9 DTE Serial Ports
The RS-232 pinout configuration is shown in Figure 4-2.
Figure 4-2 EDS2100 Pinout Configuration for RS-232
Figure 4-3 shows the pinout configuration for RS-422 (4-wire).
Figure 4-3 EDS2100 Pinout Configuration for RS-422 (4-wire)
Figure 4-4 shows the pinout configuration for RS-485 (2-wire).
