13: Maintenance and Diagnostics Settings

EDS1100/2100 Device Server User Guide 115

IP Sockets

To display open IP sockets:

1. Select Diagnostics on the menu bar and then IP Sockets at the top of the page. The IP

Sockets page opens and shows all of the open IP sockets on the device.

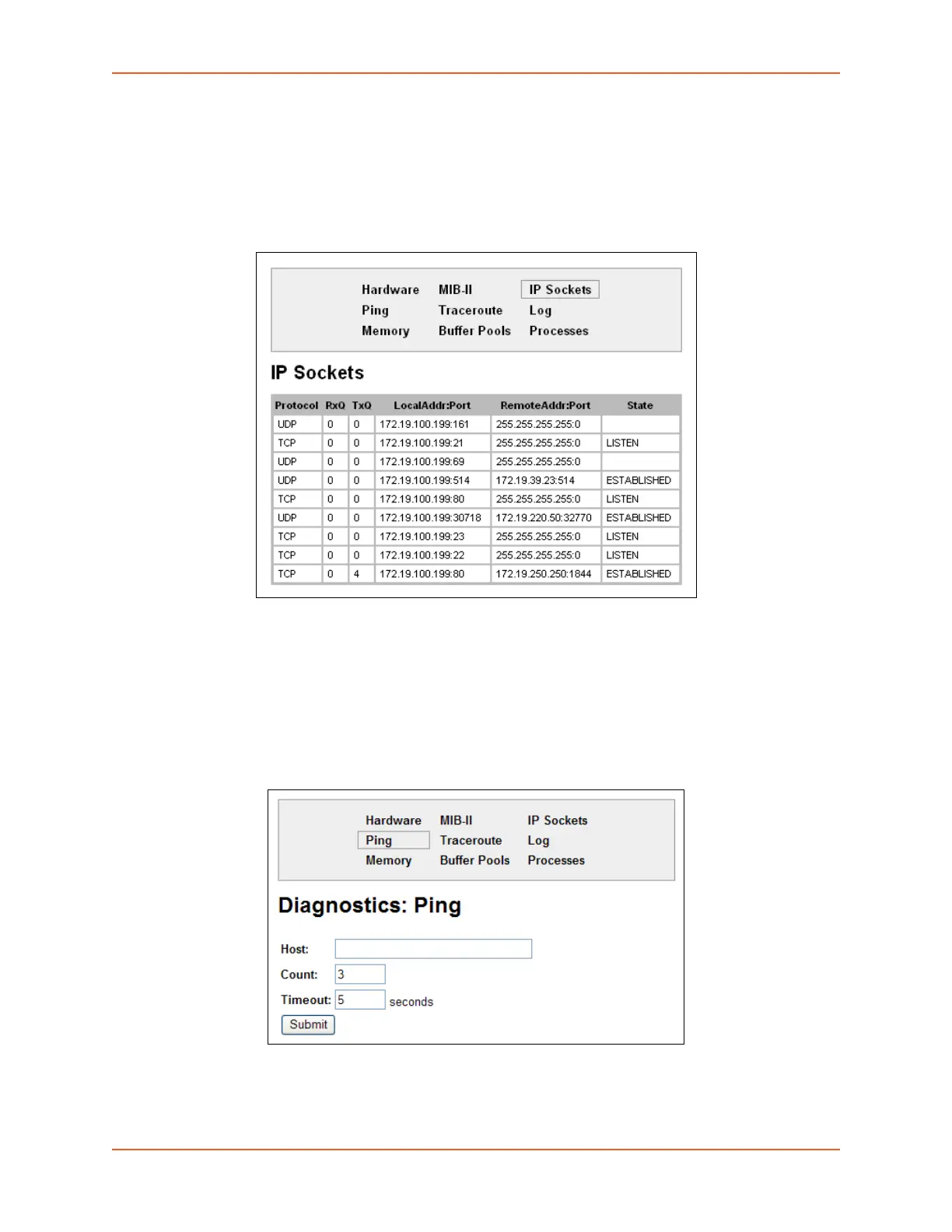

Figure 13-20 IP Sockets

Ping

EDS1100/2100 device server uses 56 bytes of data in a ping packet. Ping size is not configurable.

To ping a remote device or computer:

1. Select Diagnostics on the menu bar and then Ping at the top of the page. The Diagnostics:

Ping page opens.

Figure 13-21 Diagnostics: Ping

2. Enter or modify the following settings:
