Lenovo ThinkCentre M73 10B0 User Manual

Replacingtheinternalspeaker
Attention:Donotopenyourcomputerorattemptanyrepairbeforereadingandunderstandingthe
“Importantsafetyinformation”onpage1.
Thissectionprovidesinstructionsonhowtoreplacetheinternalspeaker.
Toreplacetheinternalspeaker,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandthecomputer.Then,disconnect
allpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtothecomputer.
2.Removethecomputercover.See“Removingthecomputercover”onpage207.
3.Locatetheinternalspeakerinthecomputer.See“LocatingmajorFRUsandCRUs”onpage85.
4.Removetheharddiskdriveassembly.See“Installingorremovingtheharddiskdriveassembly”on
page209.
5.Disconnecttheinternalspeakercablefromthesystemboard.
6.Releasetheinternalspeakercablefromtheretainingcliponthesideofthethermalmodulebracket.

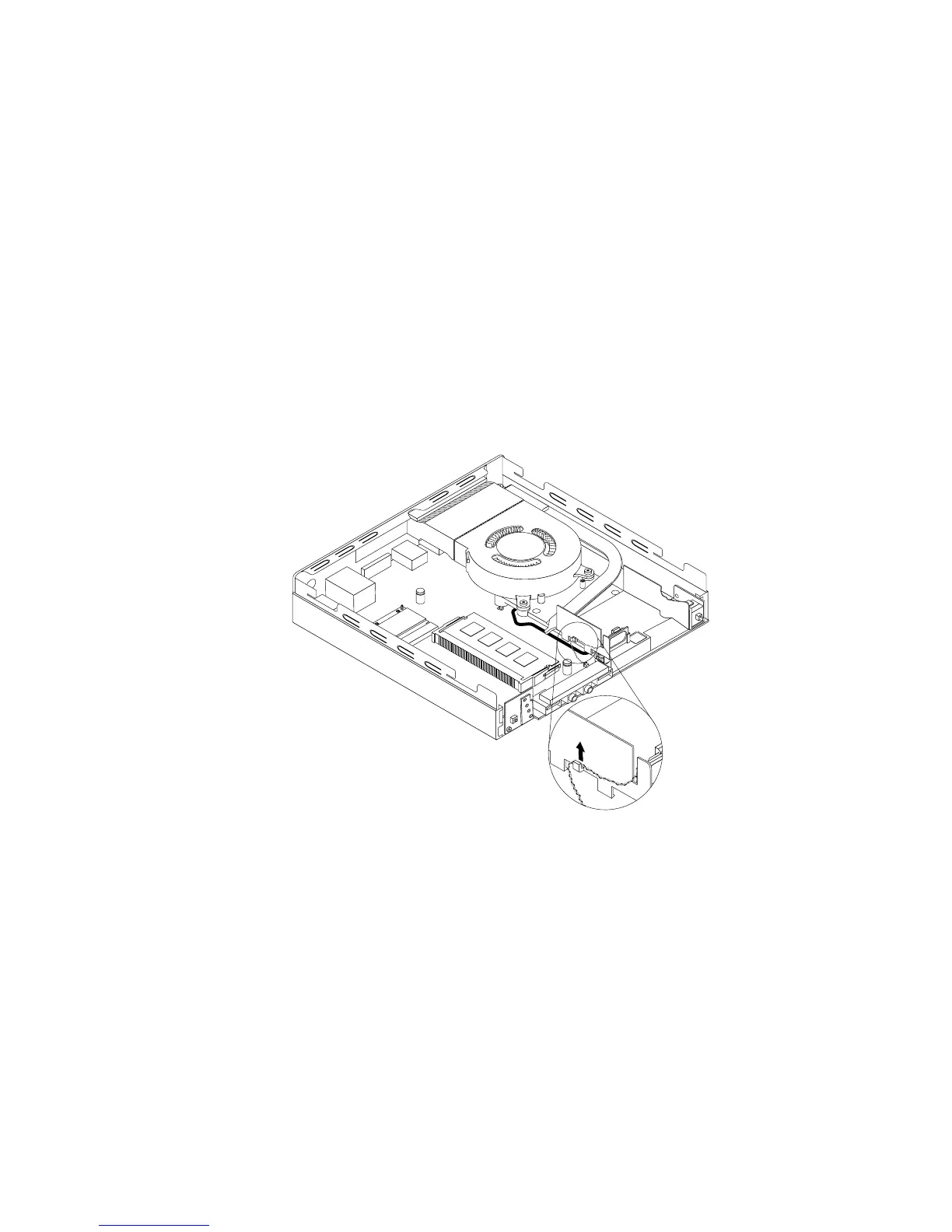

Figure193.Releasingtheinternalspeakercable
Chapter11.ReplacingFRUs(machinetypes:10AX,10AY,10DK,10DL,10DM,and10DN)221

Lenovo ThinkCentre M73 10B0 Specifications

General

Storage	500GB HDD
Graphics	Intel HD Graphics
Operating System	Windows 7
Form Factor	Tower, Small Form Factor (SFF)
Power Supply	240W
