3.3 Connections and interfaces

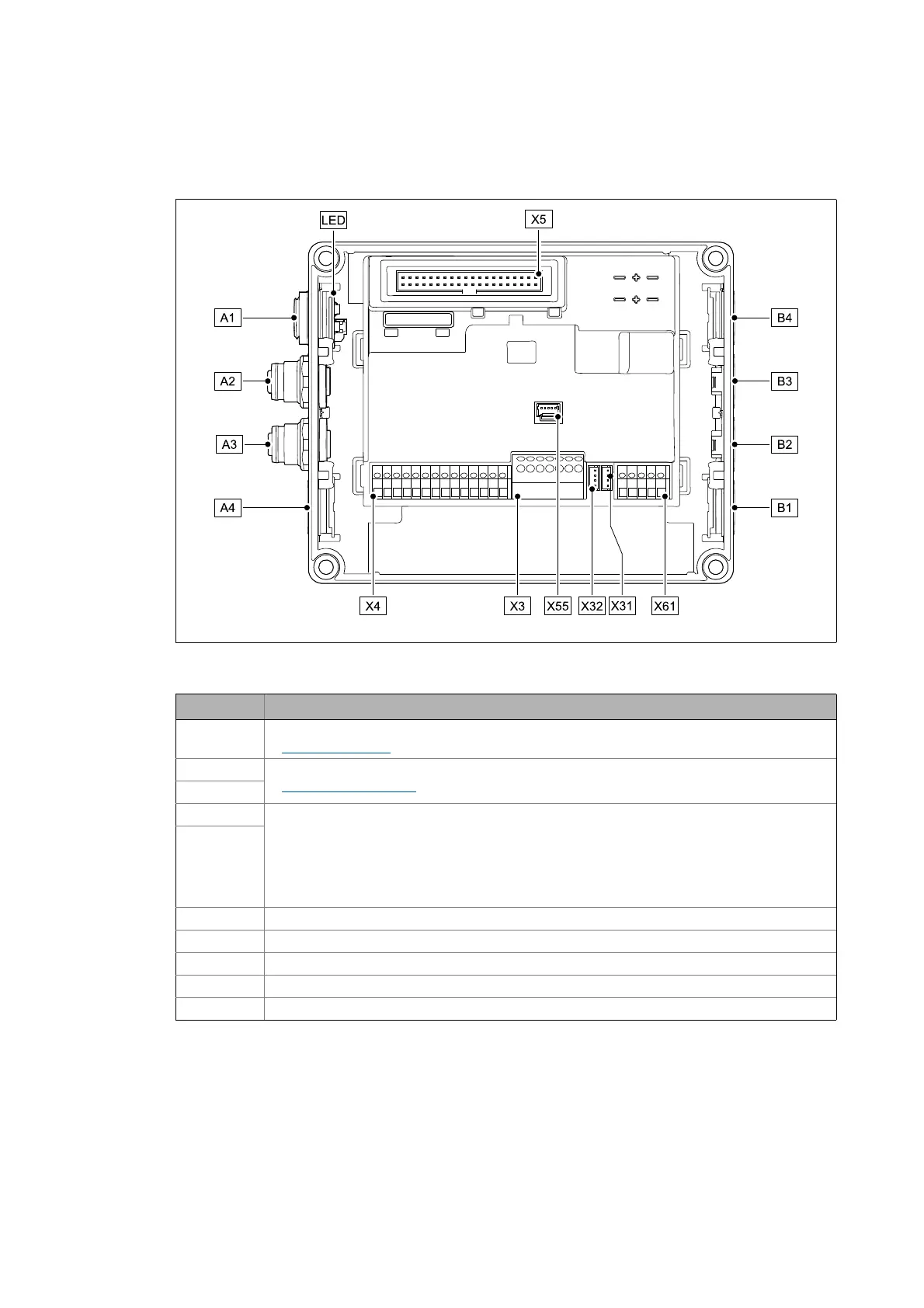

[3-1] EtherNet/IP Communication Unit
E84DG029
Pos. Description
A1 / LED Position of LEDs for EtherNet/IP status display
LED status displays
( 79)
A2 EtherNet/IP connections (M12 sockets, 5-pin, D-coded)
EtherNet/IP connection
( 24)
A3
A4 Positions for further freely designable inputs and outputs:
• Digital inputs
•Digital output
• Analog input (only for E84DGFCGxJx)
• Relay output (only for E84DGFCGxJx)
• Connection of "Safety Option" safety system (only for E84DGFCGxJx)
B1 ... B4
X3 / X4 / X61 Terminal strips for wiring the connections at A4 and B1 ... B4
X5 Plug connector for connection to the Drive Unit
X31 Plug connector for wiring the EtherNet/IP connection at A2
X32 Plug connector for wiring the EtherNet/IP connection at A3
X55 Plug connector for the wiring of the LEDs to A1
