Data transfer
EtherNet/IP state diagram
44
Lenze · Decentralised frequency inverter 8400 motec (EtherNet/IP™ option) · EDS84DMOTEIP EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.3 EtherNet/IP state diagram

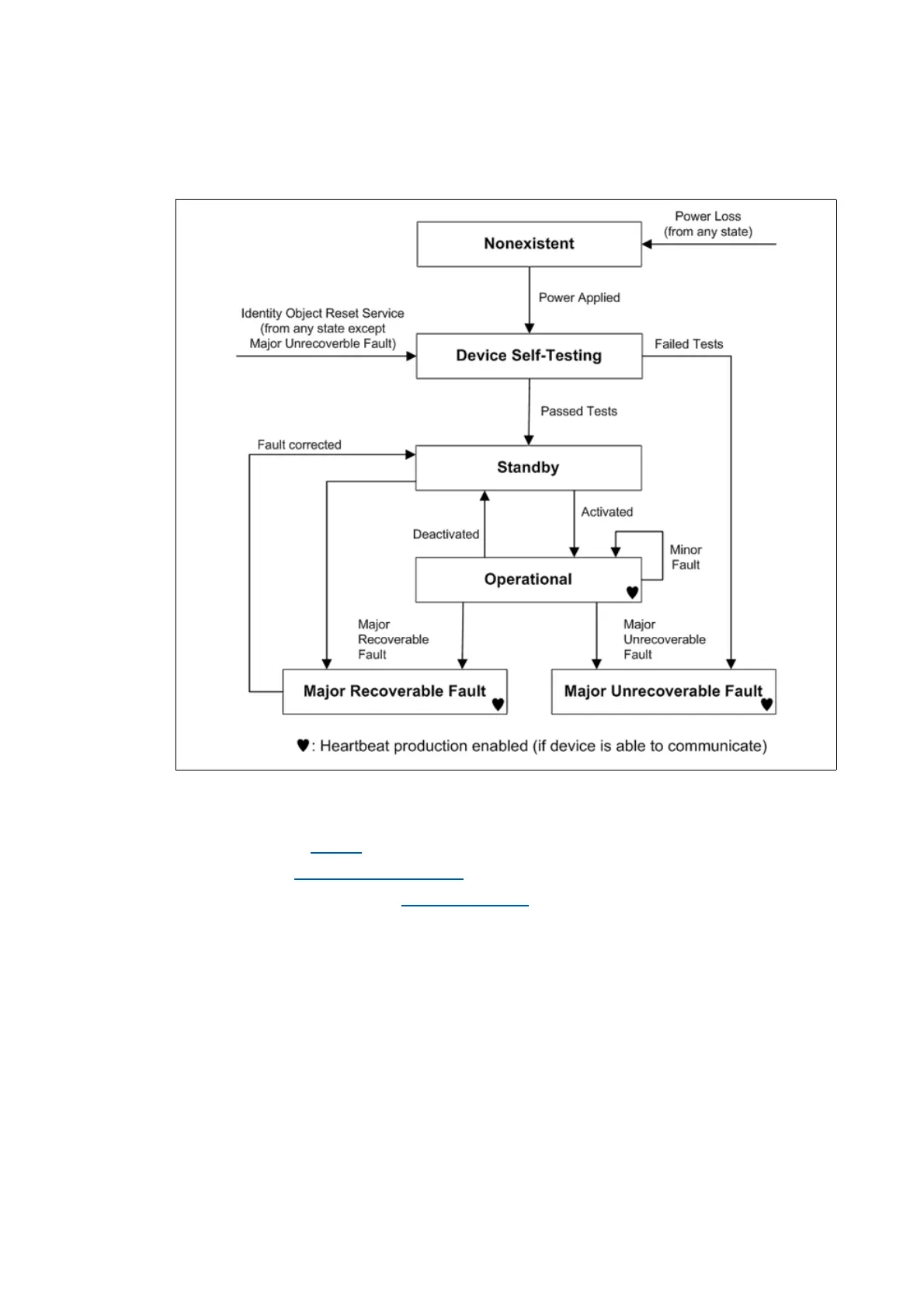

[7-1] EtherNet/IP state diagram
The current EtherNet/IP device state is ...
• output via code C13861
;
• output in the Identity Object (1 / 0x01)
( 111) via instance attributes 5 and 8;
• indicated via the MS LED (see LED status displays
( 79)).
